Component Tests and General Diagnostics

NOTE: The sequence of this diagnosis MUST be followed.

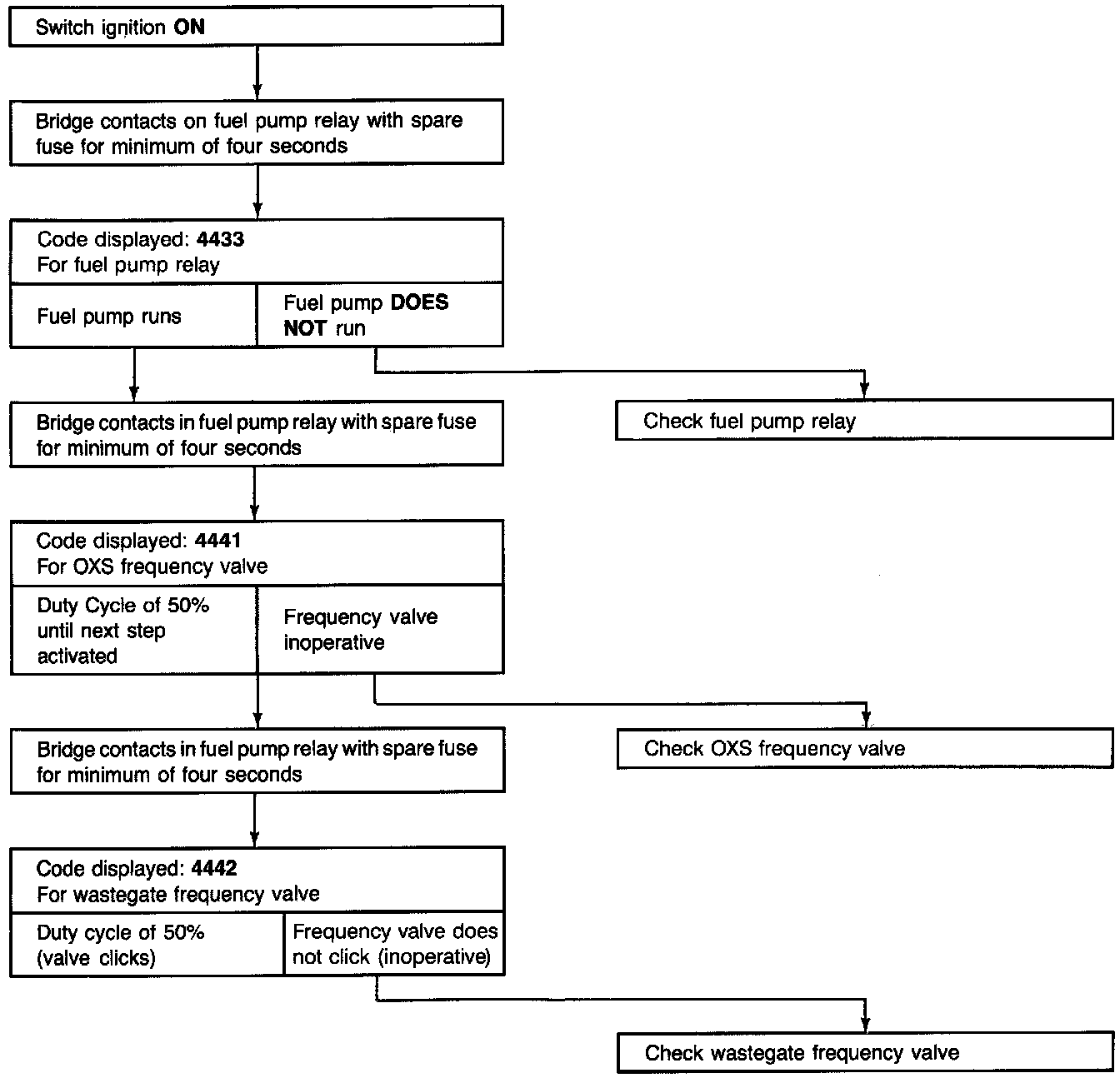

WORK SEQUENCE
- Switch ignition OFF to erase input signals from memory.

NOTE: If fuel pump relay or another component fails to operate during diagnosis, entire output diagnosis must be repeated after necessary repairs are made. Do NOT crank or start the engine during the output diagnosis. This would automatically switch the system to the INPUT tests when the diagnosis procedure is activated.
