Distributor: Adjustments

Ignition distributor, basic adjustment
Work sequence

- Using tool 2079 turn crankshaft to TDC position (arrow)

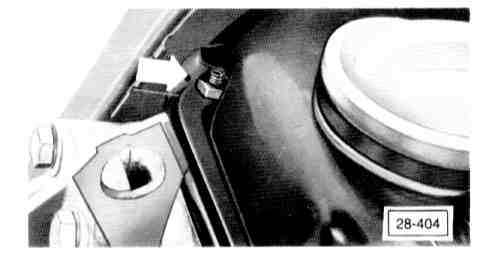

- Mark on camshaft sprocket must align with upper edge of valve cover gasket (arrow)

- Remove ignition distributor cap remove rotor and dust cover loosen distributor at mounting nut

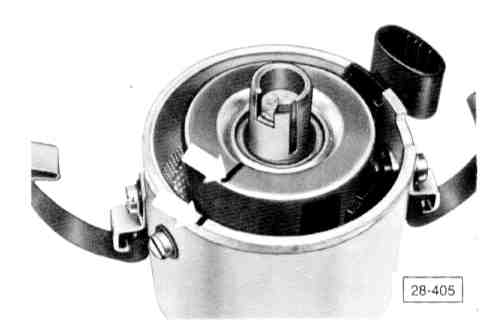

- Turn distributor housing so mark on trigger wheel aligns with mark on distributor housing (arrows)
- Tighten distributor mounting nut
