Hall Effect Sensor: Description and Operation

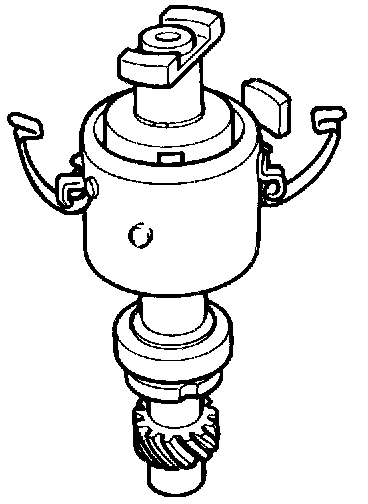

Hall Sending UnitThe Hall sending unit produces one broad signal per distributor shaft rotation just before ignition TDC on No. 1 cylinder. The signal from the Hall sensor only permits the signal of 60° before ignition TDC on No. 1 cylinder to be accepted as a reference mark signal in the control unit.
