Intake Temperature Correction

Intake Air Temperature Correction

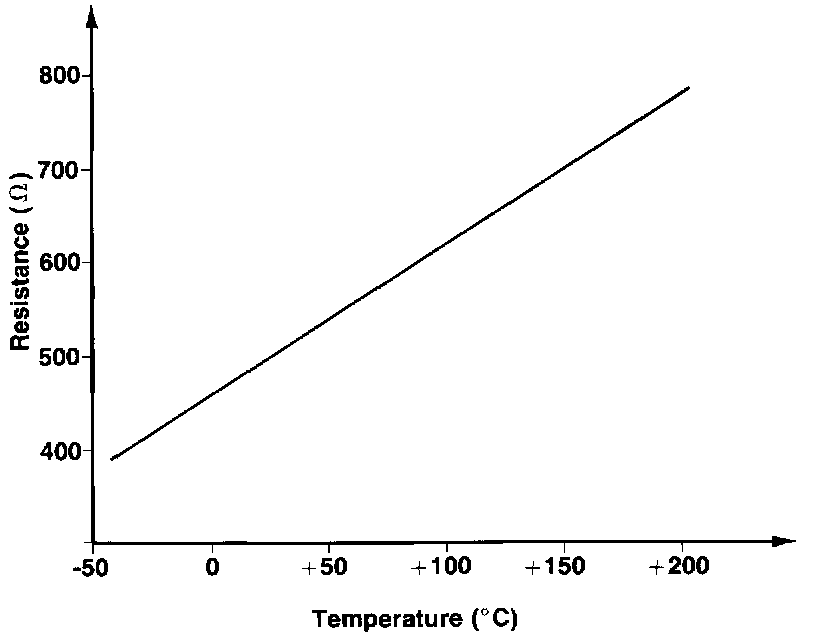

The intake air temperature sensor is one of the components used to control boost pressure.

In the event of ambient temperature changes the intake air temperature sensor sends a signal to the control unit to compensate for air density variations due to temperature fluctuations. This ensures a uniform amount of boost pressure to the engine regardless of ambient temperature.
