Power Window Safety Switch: Service and Repair

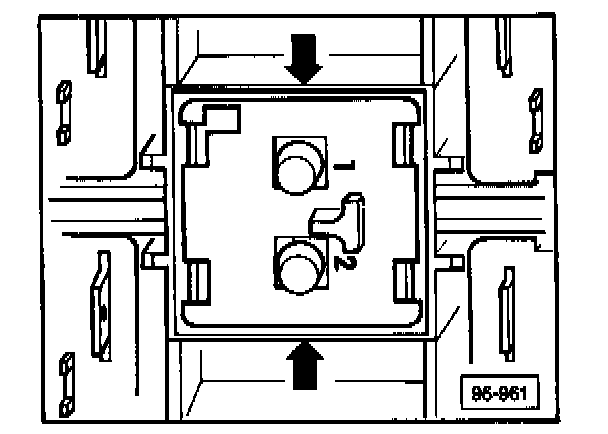

Safety switchFig 2. Safety Switch, Removing/installing:
removing/installing -
Remove control panel from door
-
Insert small screwdriver at arrows and twist slightly
-
Press switch out at same time
-
Install in reverse order
Note: -
Push switch in until 'click' is heard
