Front Door Window Regulator: Testing and Inspection
Troubleshooting power window regulators
Note:
Safety switch with catch installed as of; VIN 44HA 076 190 and 44HN 074 704
Refer always to appropriate wiring diagram.
Test conditions
- Battery OK
- Rear window safety switch disengaged
- (With ignition on) control unit 'clicks' when drivers window switch activated
Tools required
- Multimeter US1119
- L.E.D. tester US1115
- Test adapter VW1594
- Test harness VW1315A
Diagnostic chart
Chart 1, No window operates:
Chart 2, No Window Operates:

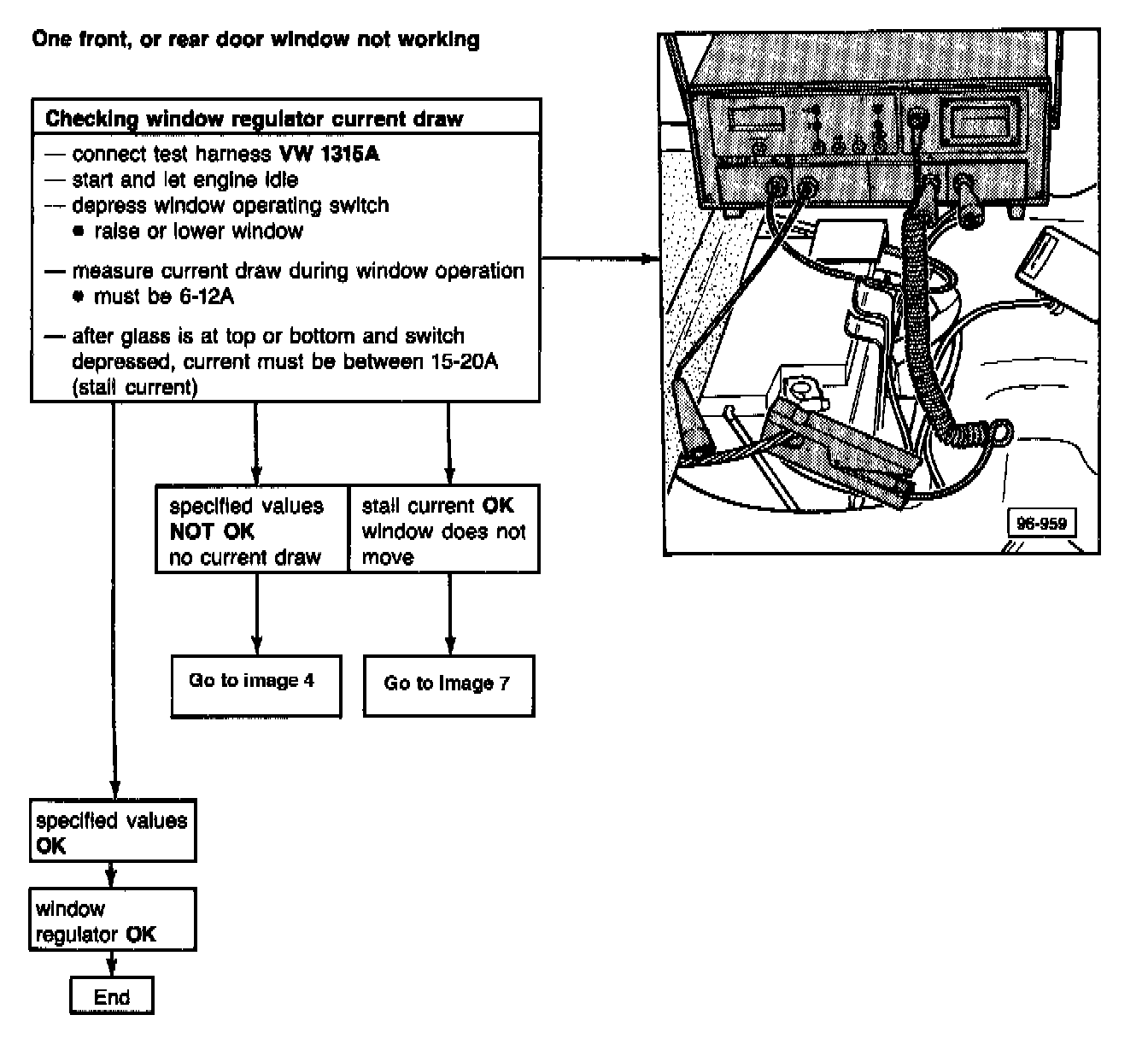

Chart 3, One front or rear door window not working:

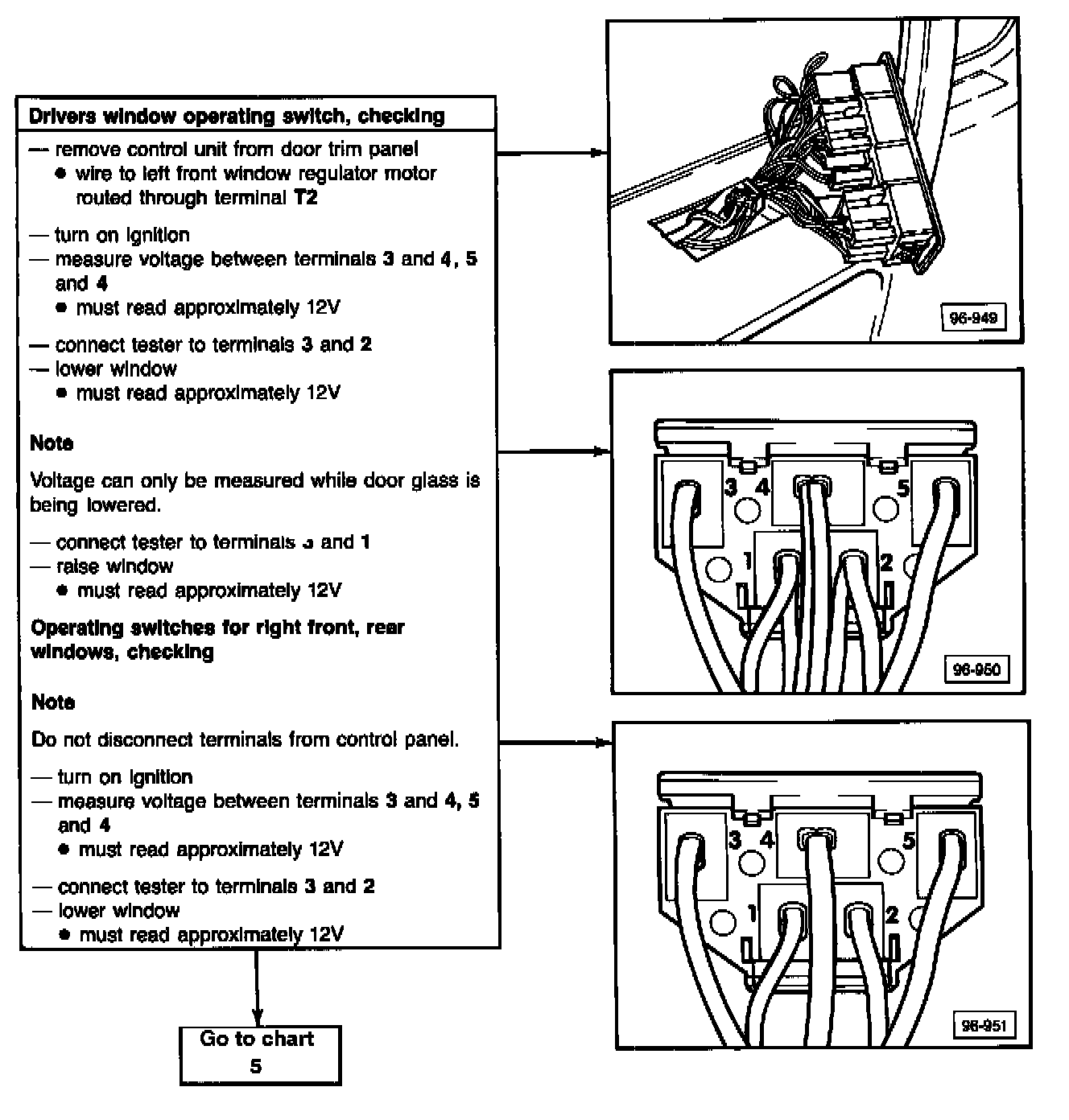

Chart 4. Driver Window Operating Switch, Checking:
Chart 5. Rear Window Safety Switch, Checking:
Chart 6. Right Front Window Switch, Checking:
Chart 7. Window Regulator Checking:
Terminal Connector For Window Regulator Motor:
Chart 8. Window Regulator Operating Switches, Checking Continuity:
Chart 9. Safety Switch, Checking Continuity:
