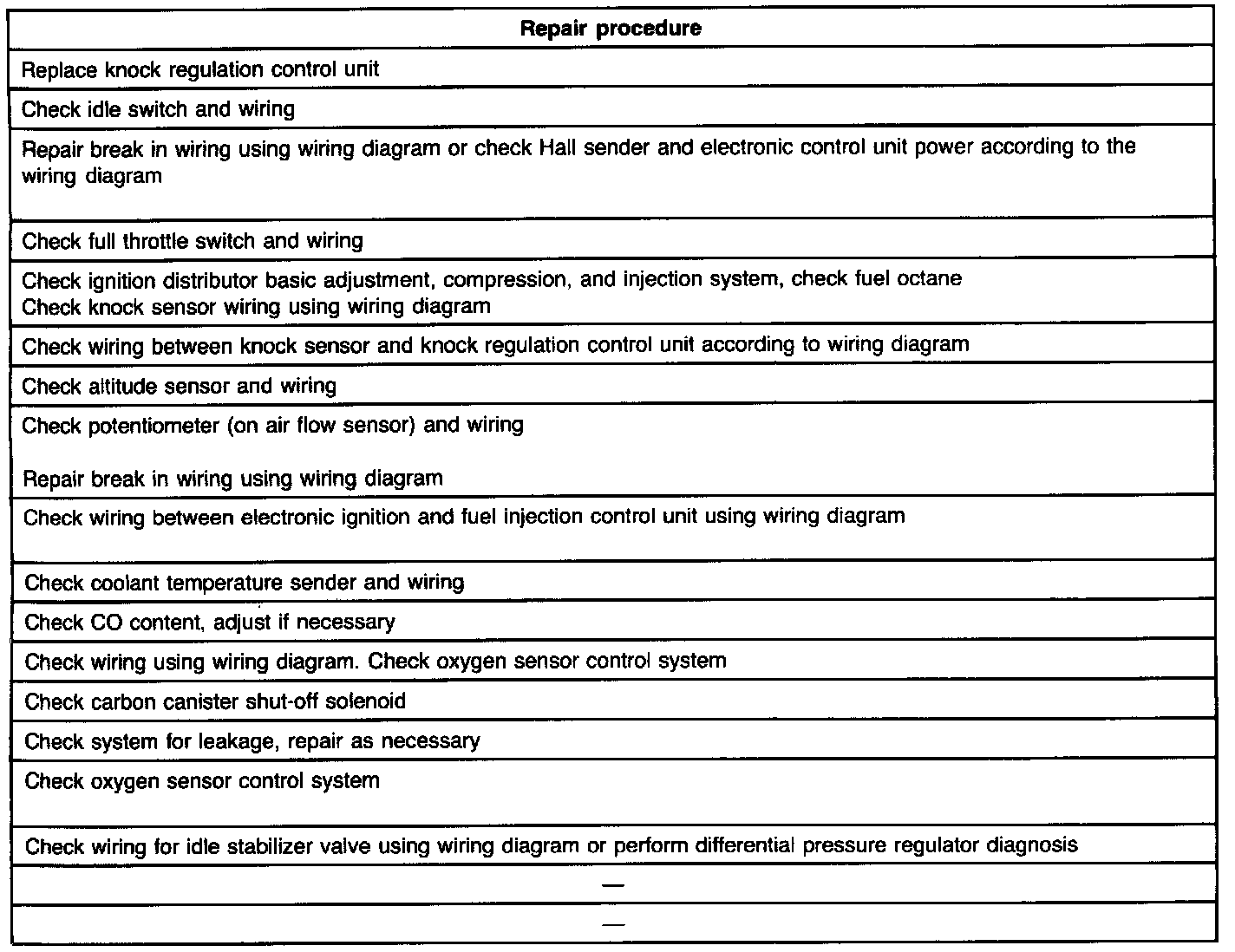

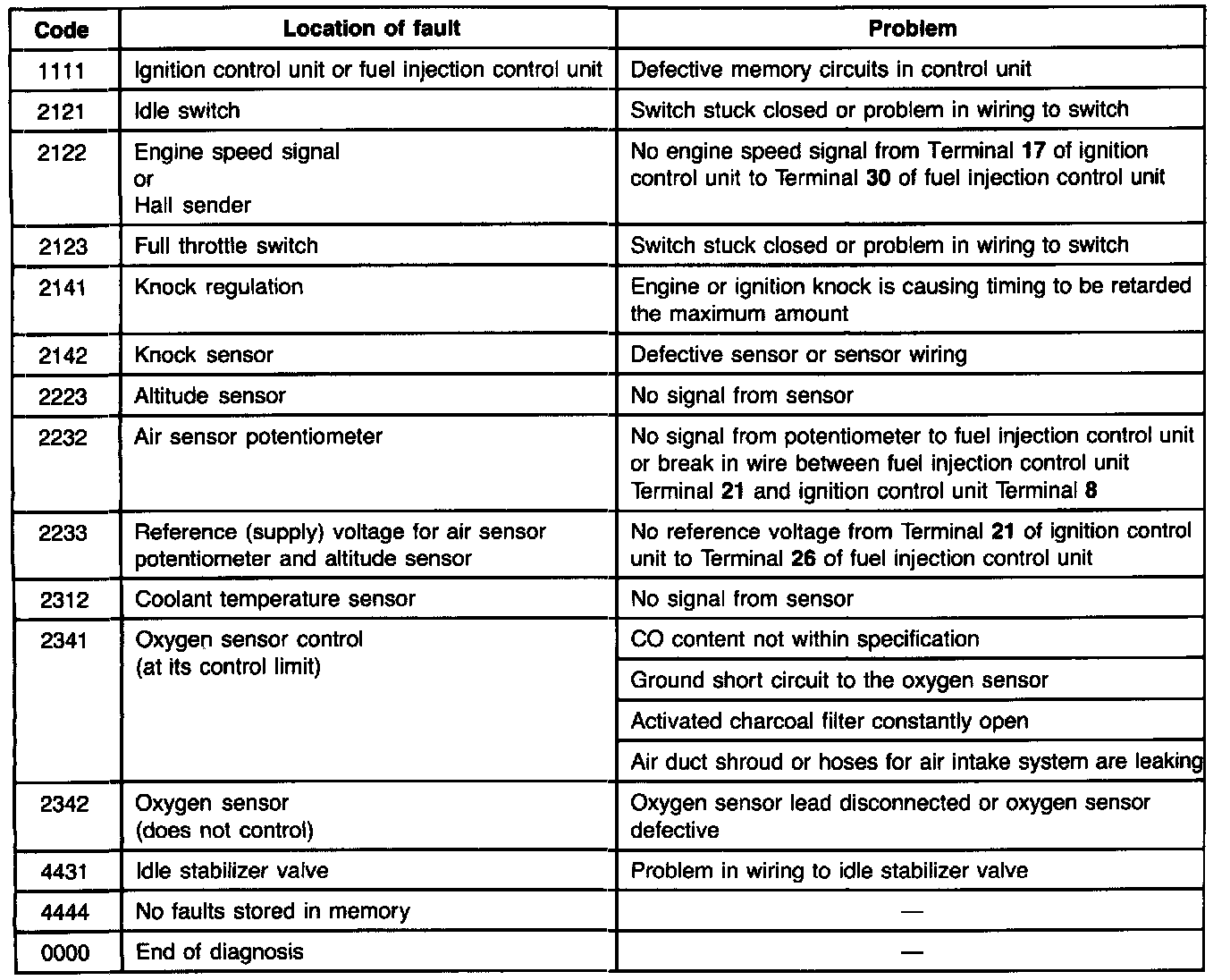

Input Code and Problem Description
NOTE: If fault codes
(2121, 2123, 2223) are only displayed during the fault display of a
control unit, the first thing to be done is to check the wiring from the control unit to the control unit displaying the fault for a break in wiring (loose terminal). If the fault lamp blinks while the vehicle is being driven, knock regulation is at the maximum limit of control.
