Sunroof Motor Cover - Removing and Installing
90audi06Subject: Sunroof Motor Cover, Removing/Installing (Supercedes 90-01, dated June 30, 1990)
Model(s): All w/Power Sunroof All m.y., except 1990 Coupe Q 20V
Group: 60
Number: 90-02
Date: August 31, 1990
Sunroof motor cover, removing

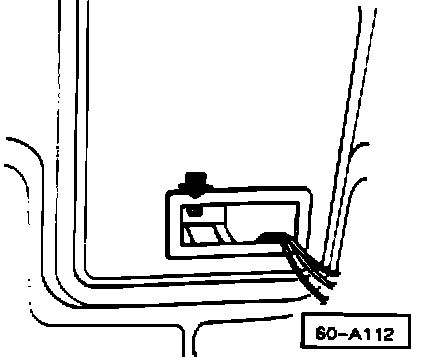

^ carefully pry out interior light assembly from sunroof motor cover
^ disconnect all electrical connectors from interior light assembly
^ remove front mounting screw (arrow)
^ slide motor cover forward toward windshield and off
CAUTION Do not pull or pry on cover.
Sunroof motor cover, installing
Reinstall all components in reverse order, noting the following:
^ check sunroof motor for proper function
