Brake Switch (Cruise Control): Testing and Inspection

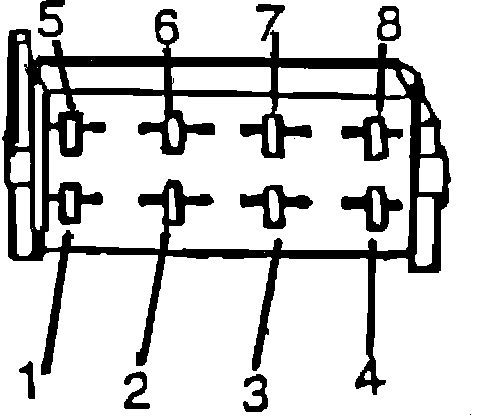

Fig. 1 Control Unit Harness Connector Terminal Identification:

Procedure for brake and clutch pedals are the same.
1. Connect multimeter US 1119, or equivalent, between control unit harness connector terminal 3 and ground, refer to Fig. 1.
2. Depress brake/clutch pedal.
3. If continuity exists, replace defective brake/clutch pedal switch.
4. If circuit is open, refer to Cruise CRUISE CONTROL SWITCH CHECK. Vehicles with 12 pin type control unit connectors refer to Vacuum Pump.
