Blower Motor: Service and Repair

Fresh air blower, removing/installing

Fresh Air Blower:

Remove heater box, refer to Heating and Air Conditioning/Heater Core Case/Service and Repair Service and Repair

Remove blower cooling hose

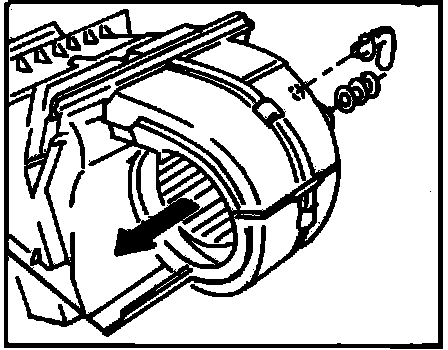

Remove lock ring, stop washer and grommet

Note: Before installing fresh air blower guides, lubricate with Vaseline
