Auxiliary Instruments In Center Console, Troubleshooting

Auxiliary instruments in center console, troubleshooting

Test requirements
- battery OK
- fuses 4,12 and 14 OK
- use multimeter US 1119 and connector test kit VW 1594 for electrical tests
- always refer to appropriate wiring diagram when troubleshooting

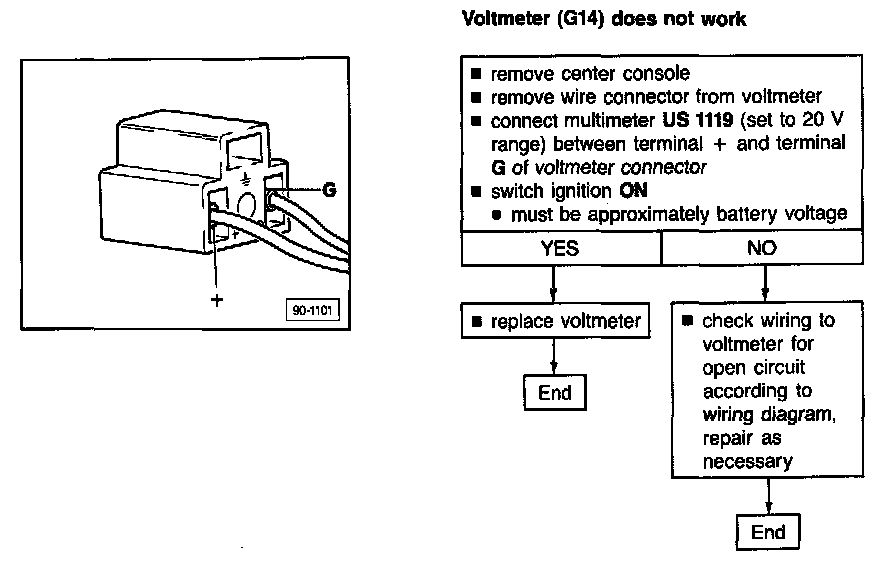

Voltmeter (G14) Does Not Work:

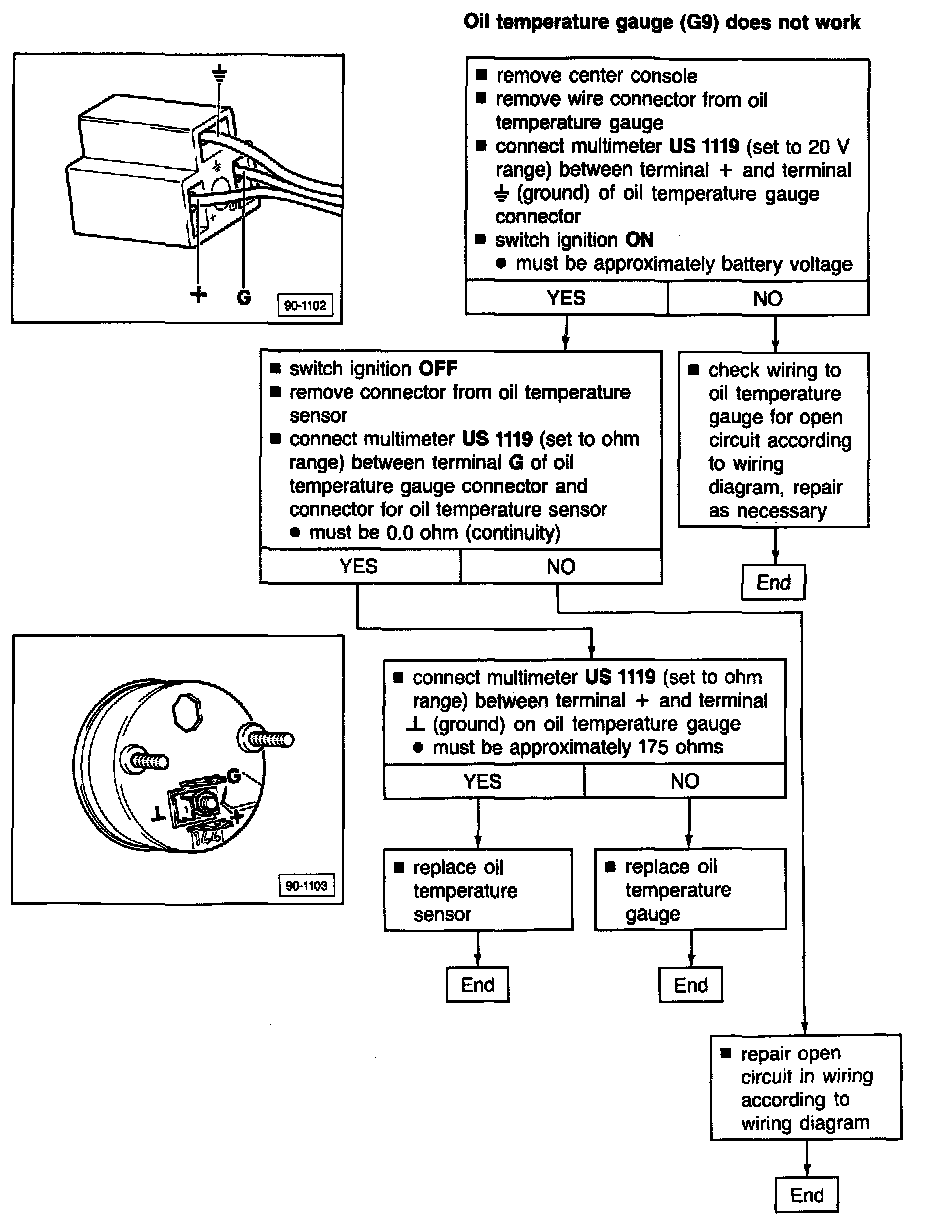

Oil Temperature Gauge (G9) Does Not Work:

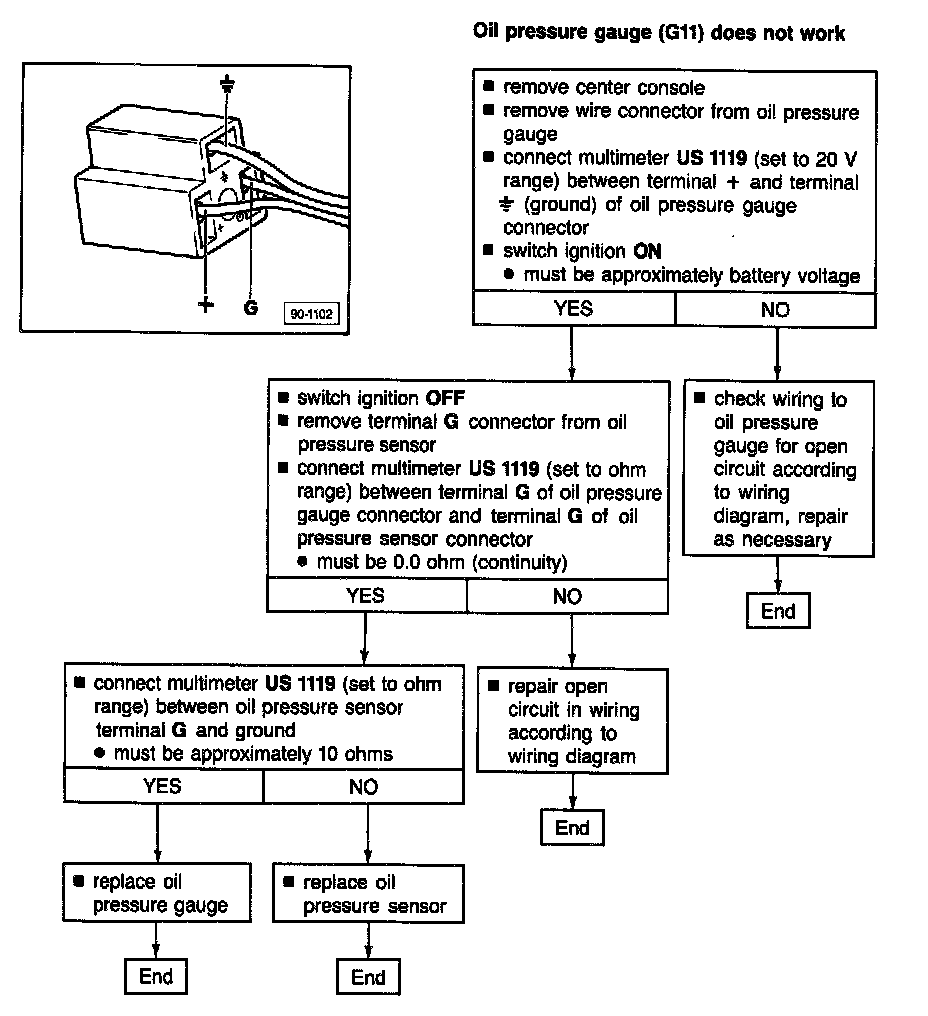

Oil Pressure Gauge (G11) Does Not Work:
