Temp Sensor, Fan, Cruise/Alarm Control Unit - Location

90audi07
Subject: Fan Motor for Temperature Sensor, Control Unit for Cruise Control and Alarm System Control Unit, Installation Location

Model(s): 100/200 with Airbag (USA only) 1990 M.Y.
Group: 97

Number: 90-01

Date: October 31, 1990

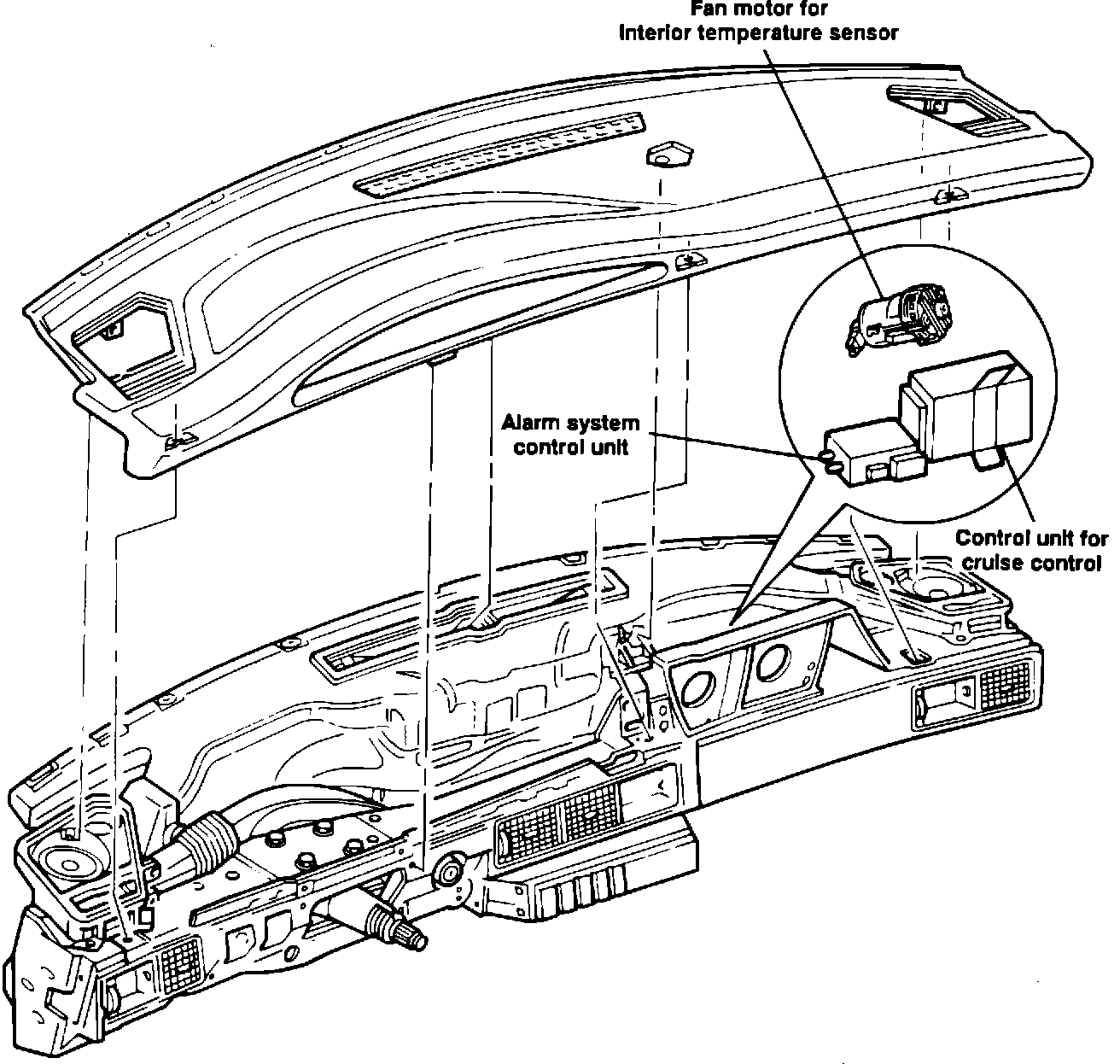

The following components are located in the right side of the instrument panel:

^ Fan motor for interior temperature sensor
^ Control unit for cruise control
^ Alarm system control unit

^ remove instrument panel top to access these components
