A/C Control Head, Replacement

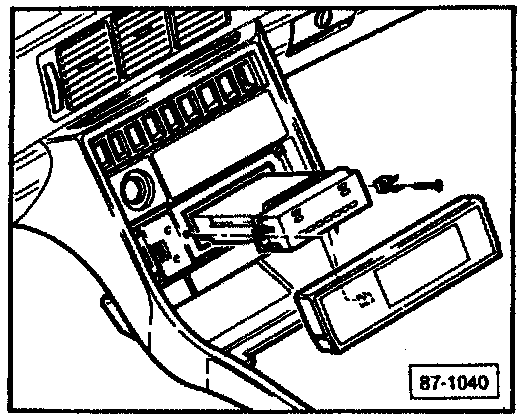

A/C Control Head:





- Carefully pry off trim plate cover with screwdriver.
- Remove two screws.
- Remove A/C control head.
- Disconnect wiring harness connector.
- Check contacts for damage, then install electrical connector harness.
- Install A/C control head.
- Install cover.
