Control Module HVAC: Description and Operation
PURPOSE Based on input signals it receives, the
programmer switches ON the A/C compressor, radiator fan first speed and controls the servo motor for temperature regulation.

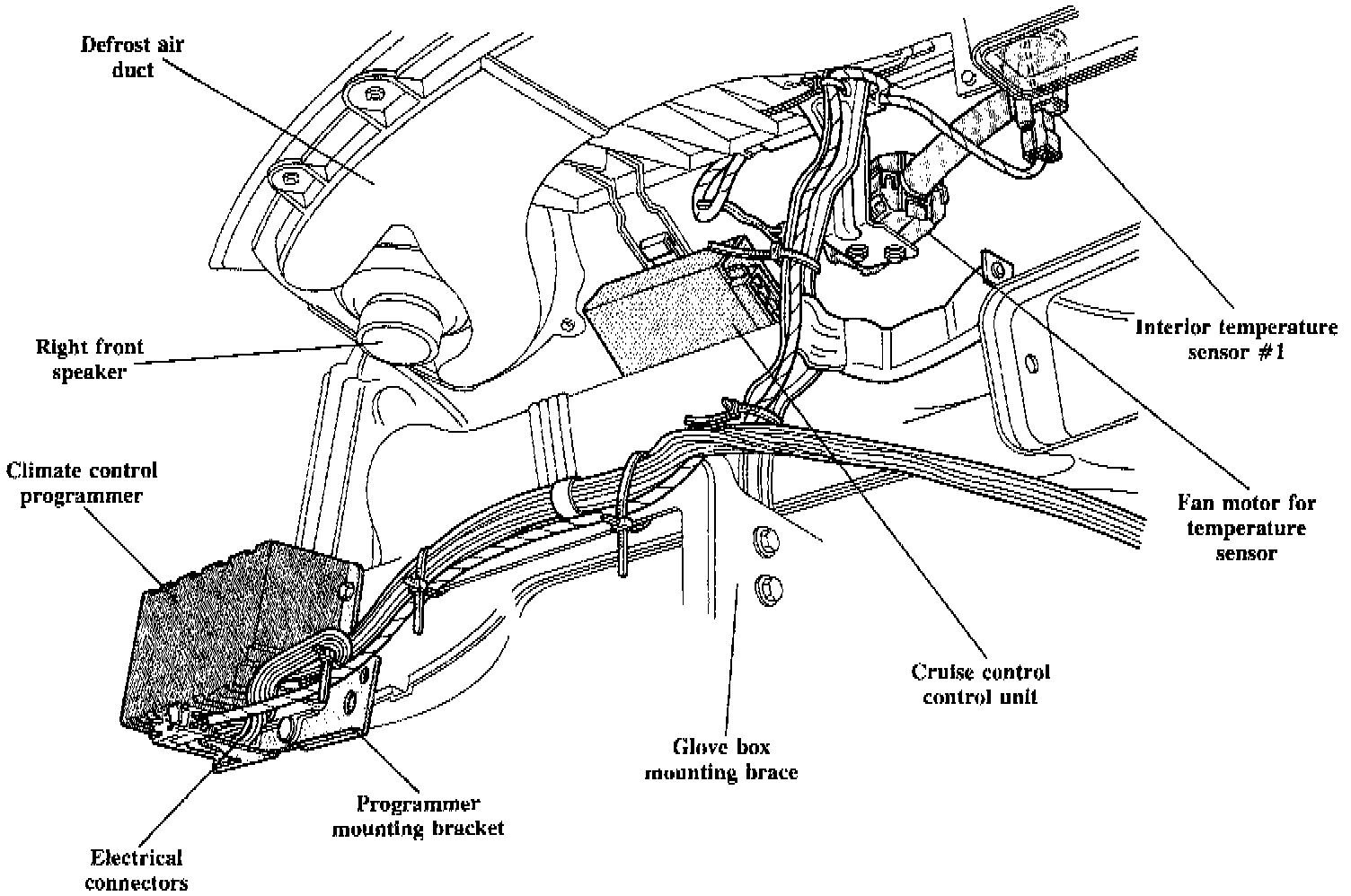

OPERATION The
Climate Control Programmer unit (J127) contains five solenoids which operate the vacuum servos for air distribution and the heater valve.
