Low Pressure Sensor / Switch: Service and Repair
Low Pressure Switch:

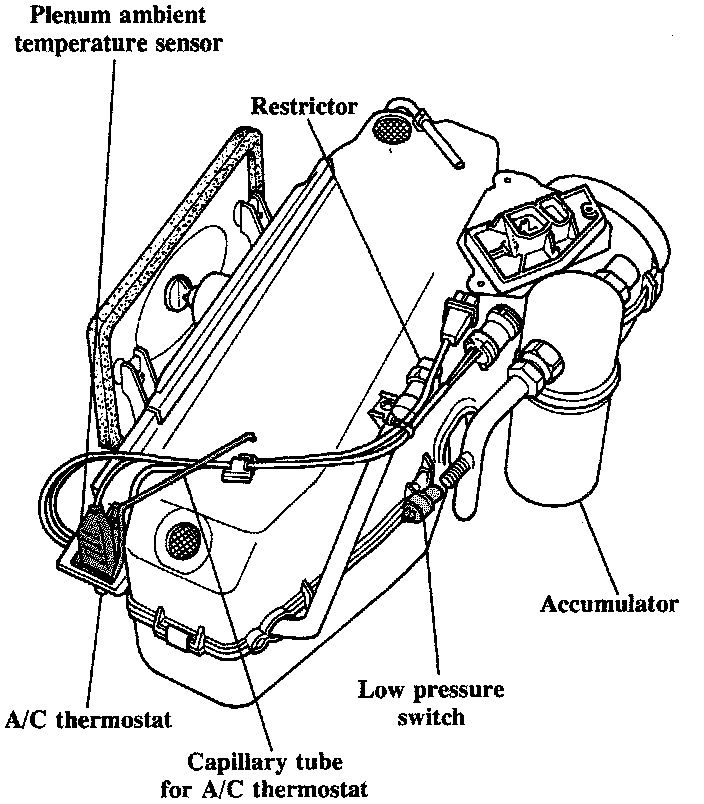

Heater/Evaporator Assembly:
-
A/C refrigerant system does not need to be discharged to remove or install this component.
-
Remove water tray cover at firewall to remove A/C refrigerant low pressure switch.
-
Replace O-ring gasket.
-
Tightening Torque:
5 Nm (4.0 ft lb).
