Programmer, Replacement

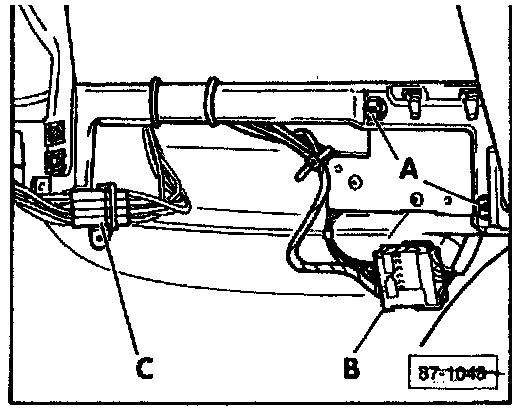

A/C Programmer:





- Remove glove compartment.
- Loosen two screws A.
- Disconnect electrical connector B.
- Disconnect vacuum hose connector C.
- Before installing electrical connectors, check contacts for damage.
- Install in reverse order of removal.
