High Pressure Sensor / Switch: Testing and Inspection

TEST CONDITIONS
- Fuses OK (check according to wiring diagram.
- Ambient temperature above 10° C (50° F).
- Engine at normal operating temperature.
- Vehicle not parked in direct sunlight.

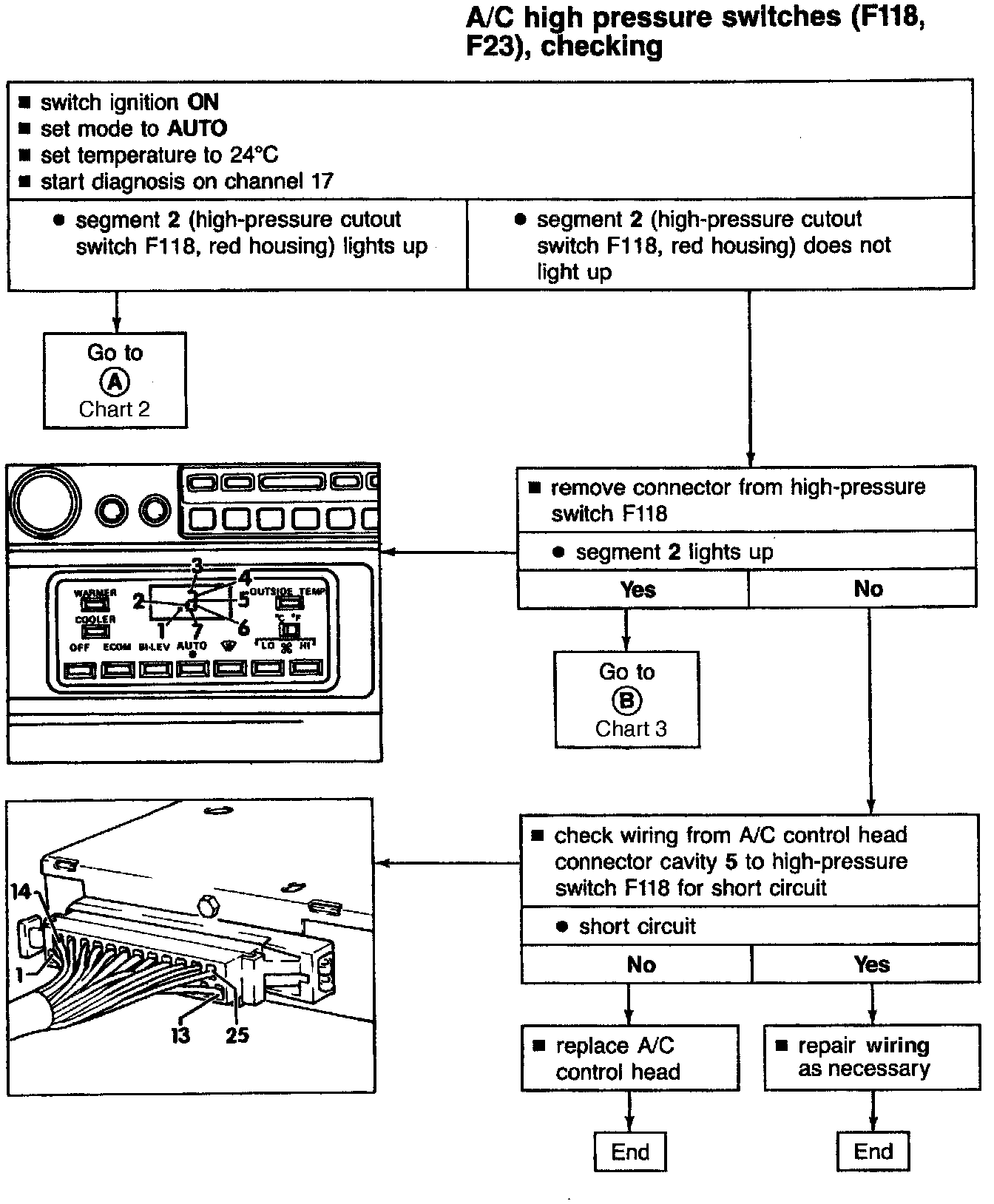

A/C High Pressure Switches, Chart 1 Of 4:

Chart 1 of 4

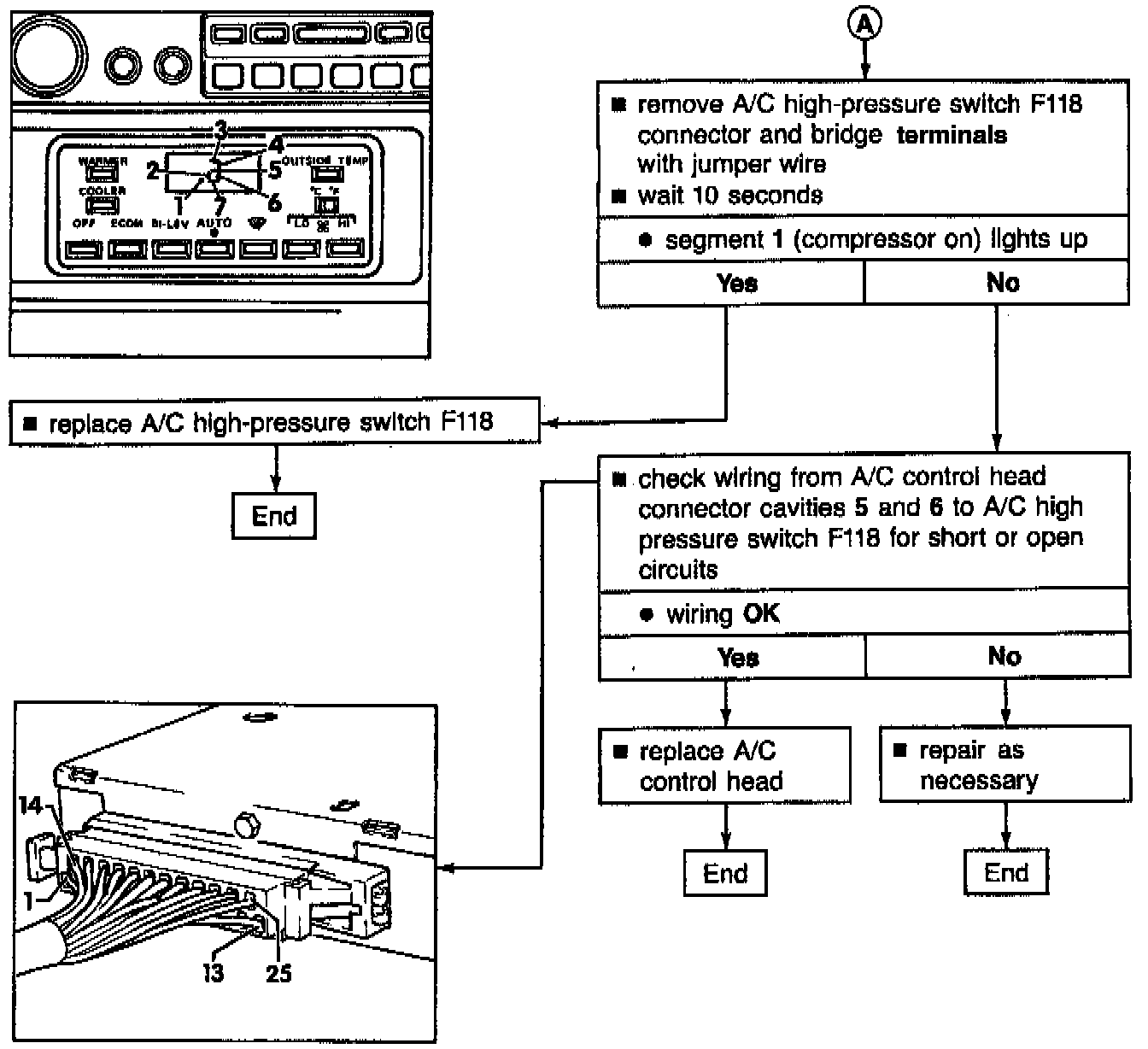

A/C High Pressure Switches, Chart 2 Of 4:

Chart 2 of 4

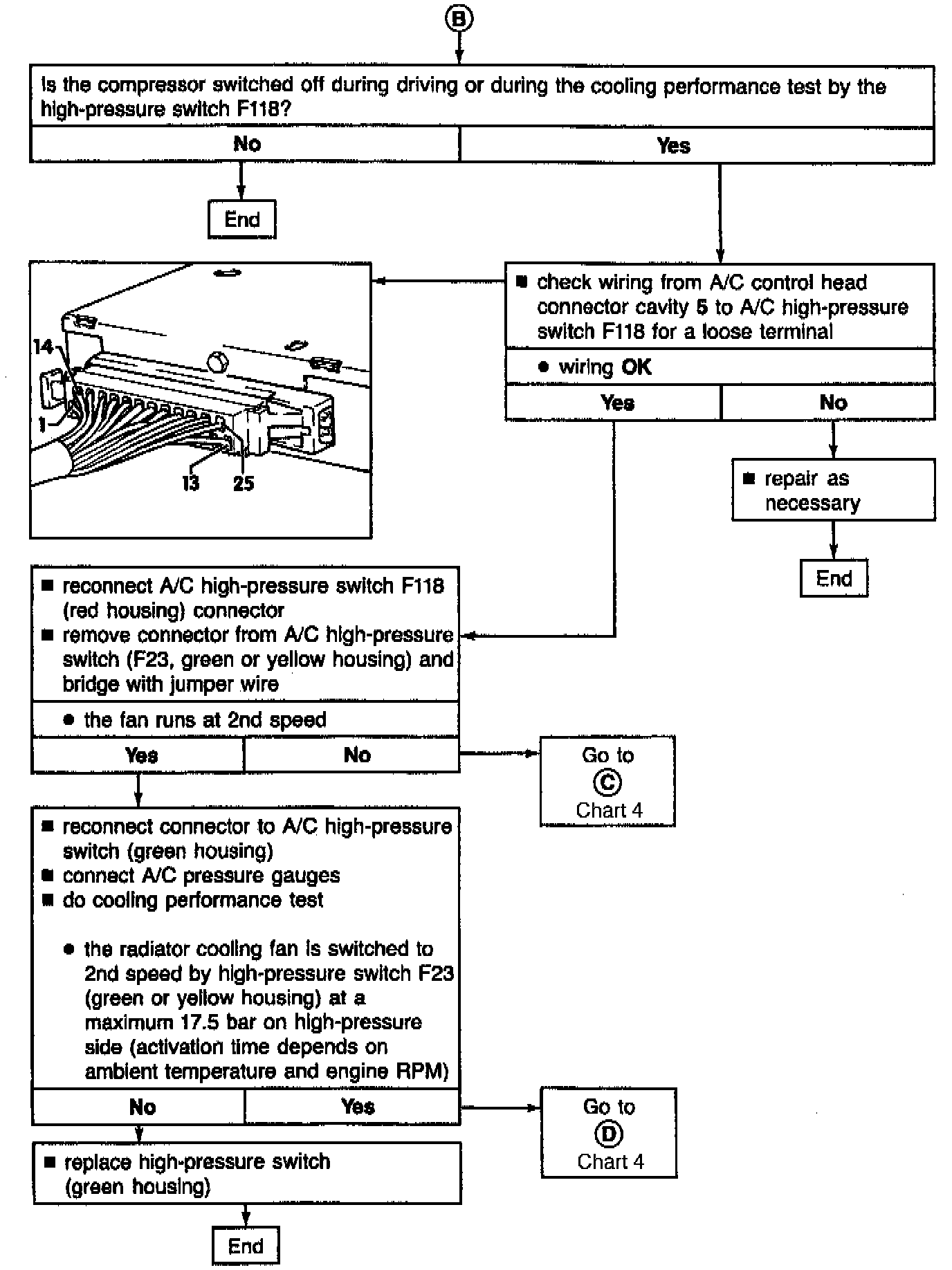

A/C High Pressure Switches, Chart 3 Of 4:

Chart 3 of 4

A/C High Pressure Switches, Chart 4 Of 4:

Chart 4 of 4
