Flow of Diagnosis

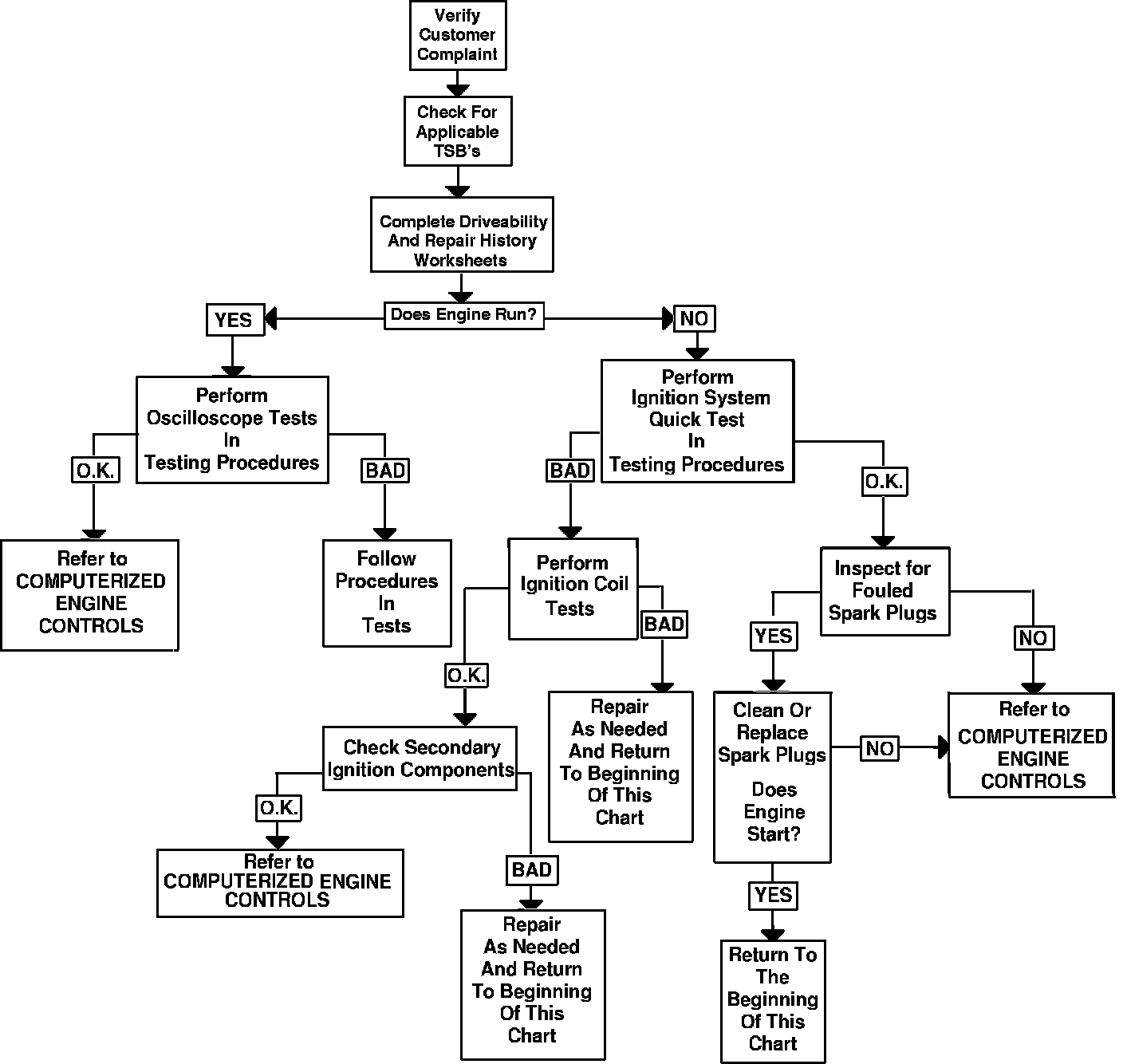

Flow Of Diagnosis:

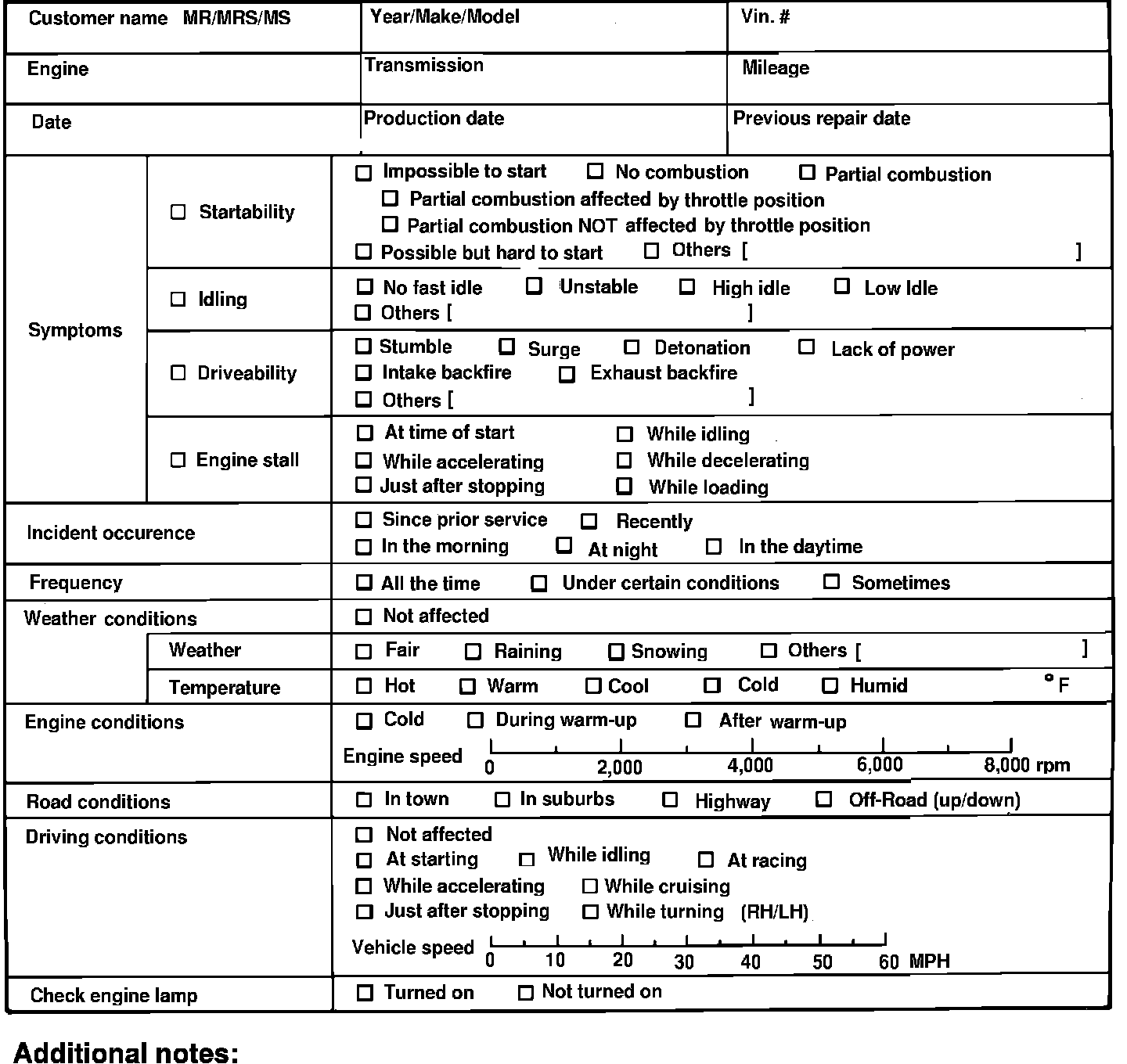

Driveability Worksheet:

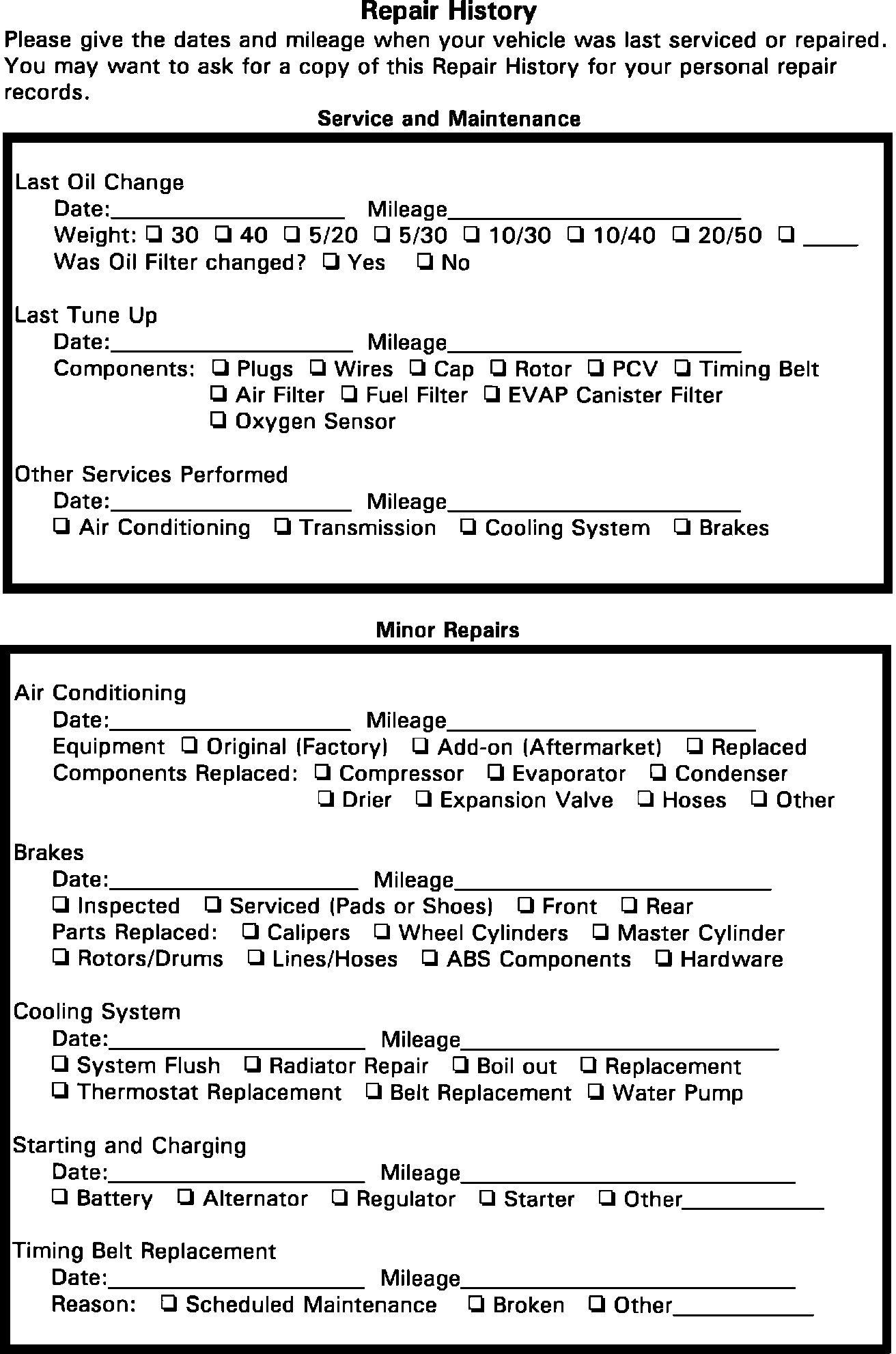

Repair History (1 Of 2):

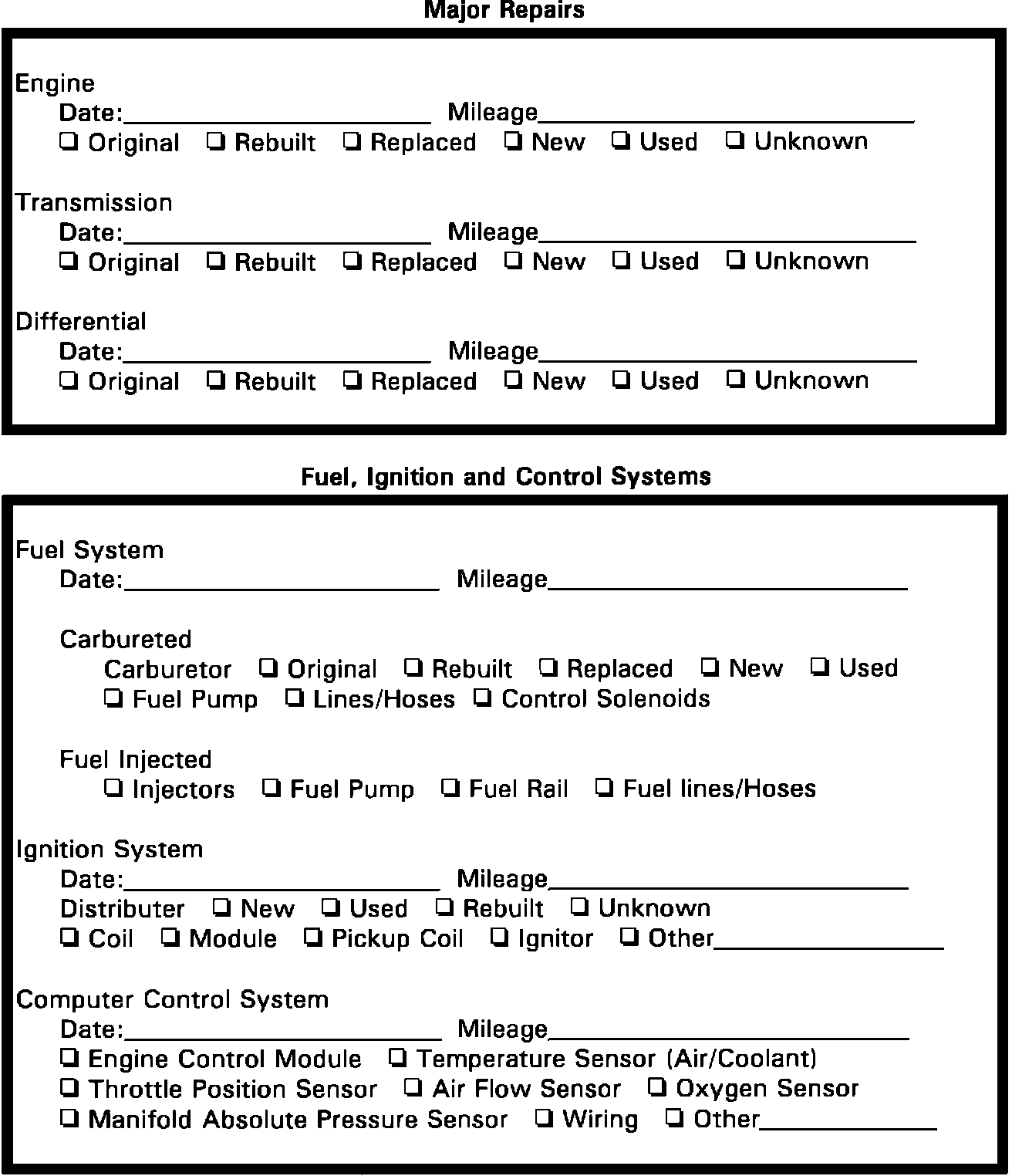

Repair History (2 Of 2):

1. Verify customer complaint.
2. Check for applicable TSB's.
3. The driveability worksheet and repair history worksheets can provide helpful clues as to the real nature of a problem.
4. Follow the Flow Of Diagnosis from top to bottom.
5. If no faults are found in the ignition system, refer to COMPUTERIZED ENGINE CONTROLS.
