Wheel Alignment - Data


9225audi01

Group: 44

Number: 92-01

Date: February 29, 1992


Subject:
Wheel alignment data


Model(s):
100 All with front wheel drive from 1992 model year

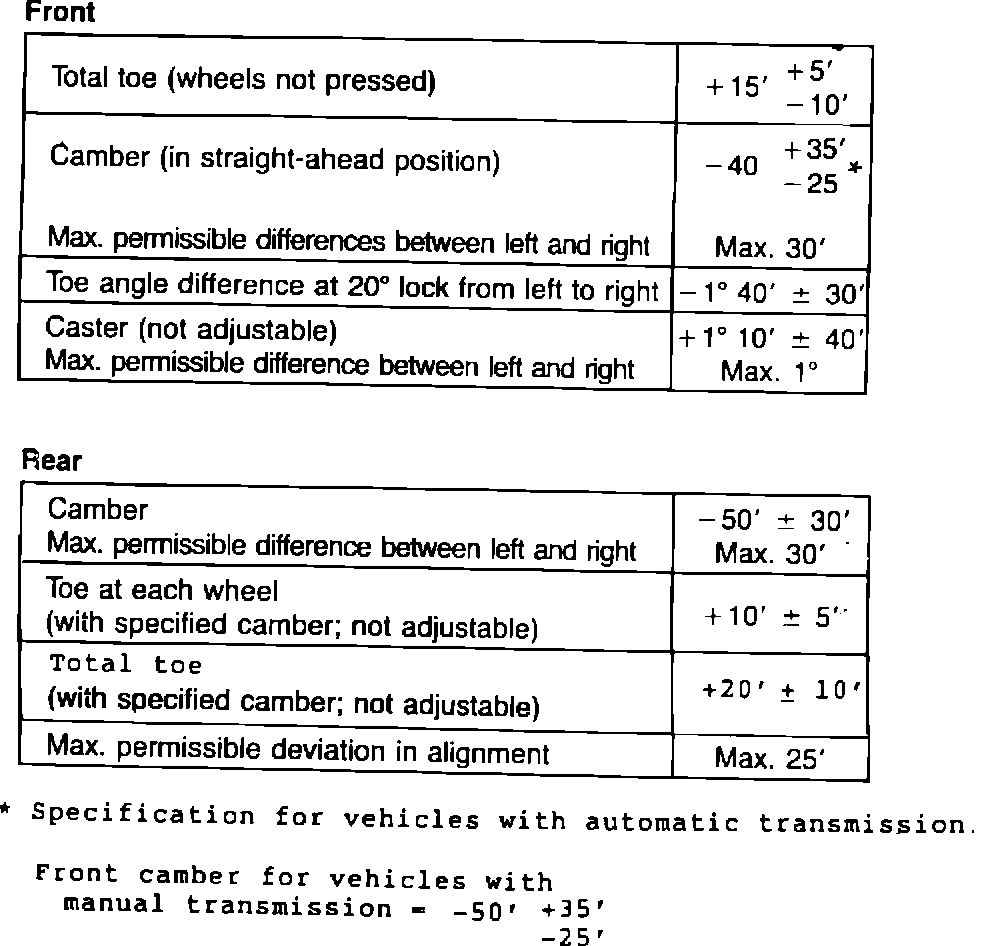

Wheel alignment data
