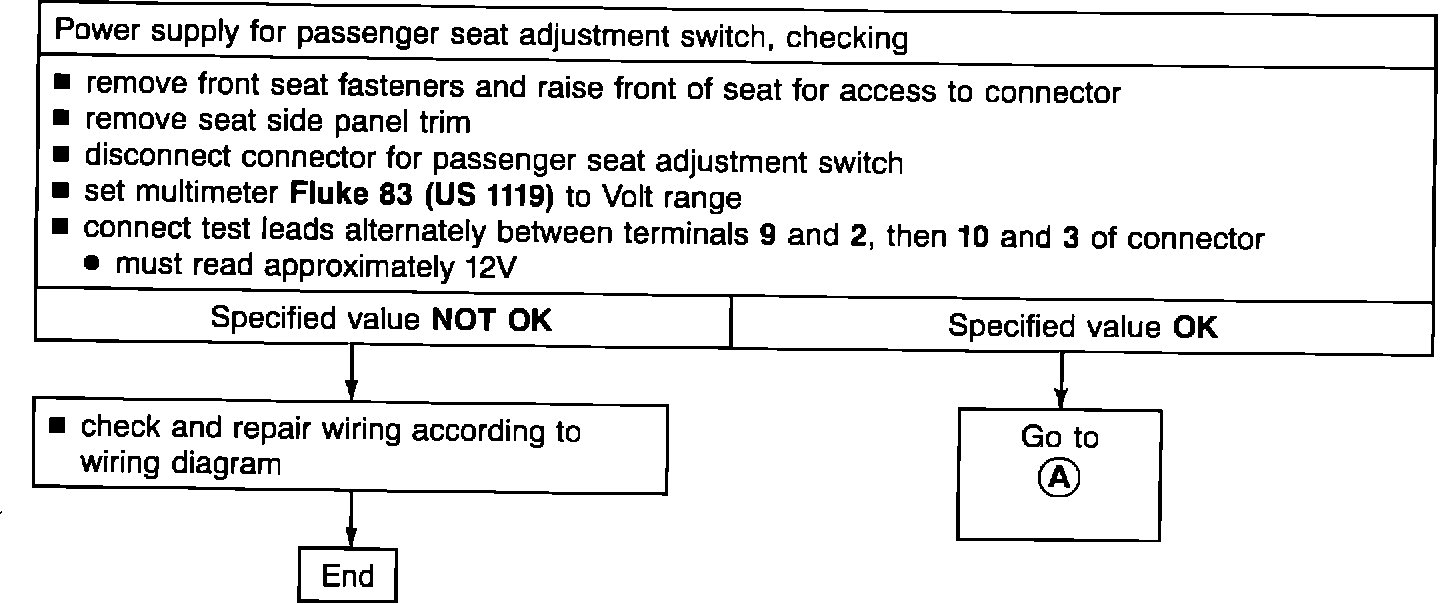

Passenger Seat Cannot Be Adjusted: Overview





Note
If defective components are identified in the following test steps, also check the wiring to these components using the wiring diagram. The procedures for removing and repairing passenger seat components are the same as for the driver's seat.
