Air Bag Control Module: Service and Repair
WARNING: Disconnect airbag power supply connector before working on the airbag system, or related systems.

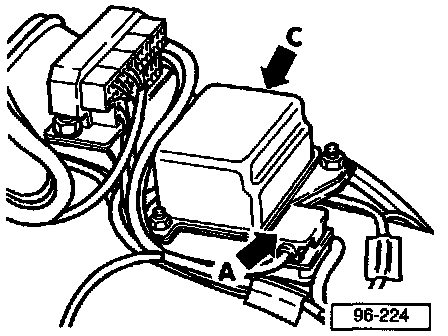

Triggering unitNOTE: Remove center console for access.
A-
Connector
C-
Triggering unit

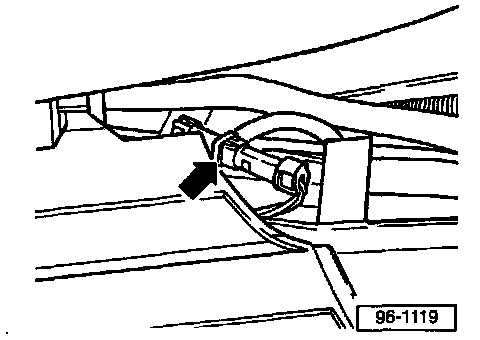

Voltage power supply connector Red, marked with the word "Airbag"
Location: Floor outlet on passenger side, above Electronic box
