Board Computer Code, Checking


^ switch ignition OFF
^ press and hold RESET button

^ while holding RESET button, switch ignition ON





^ a (symbol) and appropriate code displayed, see chart

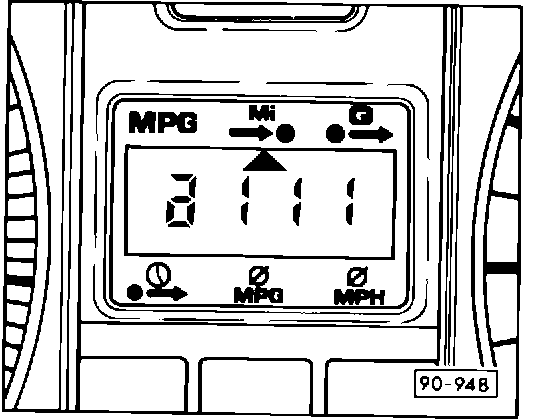

^ illustration shows code "111", 6 cyl. MPI/172 bhp





Coding
connector Code
Part No. Engine Country displayed

6 cyl. MPI/ USA,
4AO 919 100 A 172 bhp Canada 111


If correct code is NOT displayed,

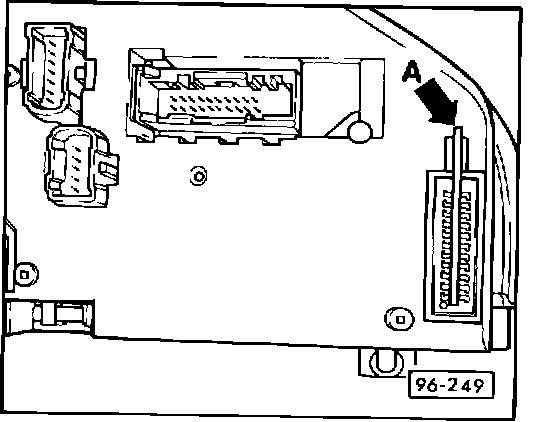

^ check coding connector A on instrument cluster for proper application
^ coding connector must be correct part number, see chart

If correct code is displayed,
^ switch ignition OFF
^ check country code
