Compressor Clutch: Service and Repair

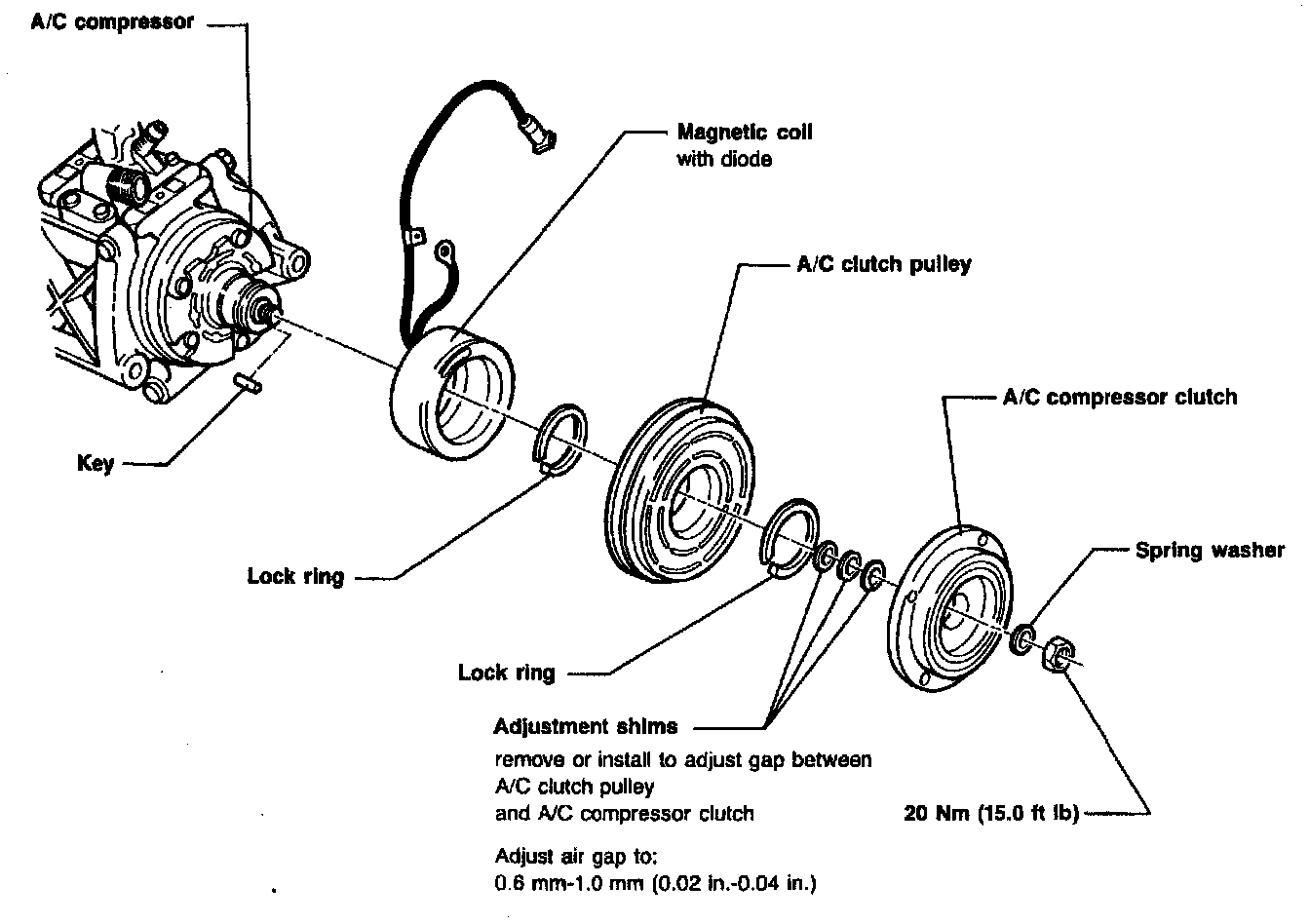

A/C Compressor Clutch:
A/C Compressor Clutch:
Retaining Nut, Removal -Hold A/C compressor clutch with tool and loosen and remove nut.
-Installation Torque:
20 Nm (15.0 ft lb).
A/C Compressor Clutch:
A/C Compressor Clutch Removal.
A/C Compressor Clutch Magnetic Coil:
Magnetic Coil with Blocking Diode CAUTION: Only install magnetic coil with protective blocking diode. See Arrow.
