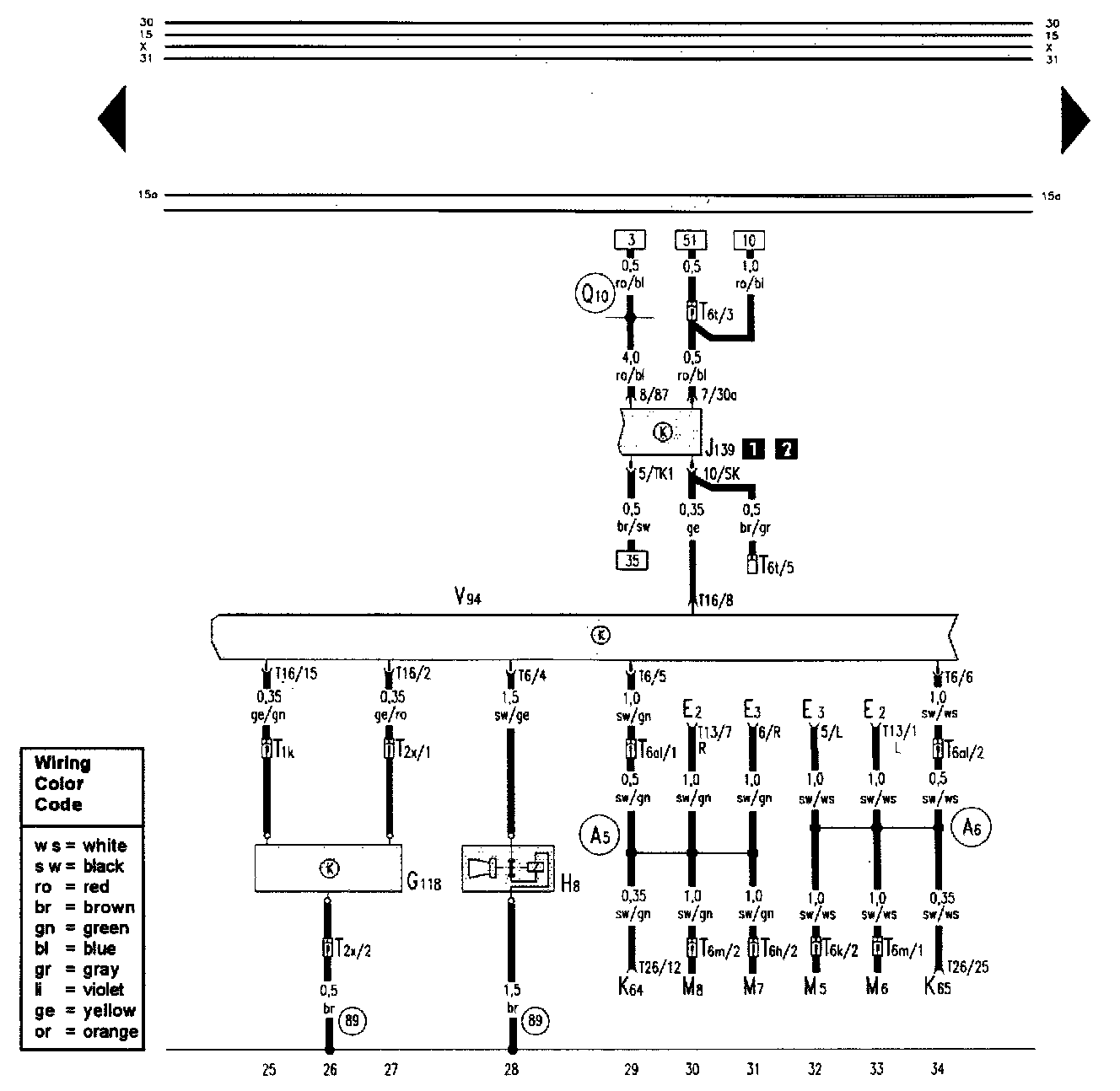

Tracks 25-34

Tracks 25-34:

E2 - Turn Signal Switch
E3 - Emergency Flasher Switch
G118 - Central Locking System Sensor, Right
H8 - Alarm Horn
J139 - Power Window Control Module
K64 - Turn Signal Indicator Light, Right
K65 - Turn Signal Indicator Lght, Left
M5 - Turn Signal Light, Left Front
M6 - Turn Signal Light, Left Rear
M7 - Turn Signal Light, Right Front
M8 - Turn Signal Light, Right Rear
V94 - Central Locking/Alarm System/Interior Light Delay Control Module
T1k - Wire Connector, Single, on B-pillar, right
T2x - Wire Connector, Double, on B-pillar, right
T6 - Wire Connector, 6 Point, rear seat, right
T6h - Wire Connector, 6 Point, black, connector station 2
T6k - Wire Connector, 6 Point, red, connector station 1
T6m - Wire Connector, 6 Point, green, connector station 1
T6t - Wire Connector, 6 Point, black, connector staton 1
T6al - Wire Connector, 6 Point, blue, connector station 1
T13 - Wire Connection, 13 Point, brown, behind steering column switch cover
T16 - Wire Connection, 16 Point, rear seat, right
T26 - Wire Connector, 26 Point, red, on instrument cluster
(89) - ground connection -1-, in power window wiring harness
(A5) - plus connection (right turn signal), in instrument panel wiring harness
(A6) - plus connection (left turn signal), in instrument panel wiring harness
(Q10) - plus connection (87), in power windows, power locks and door contact switch wiring harness
