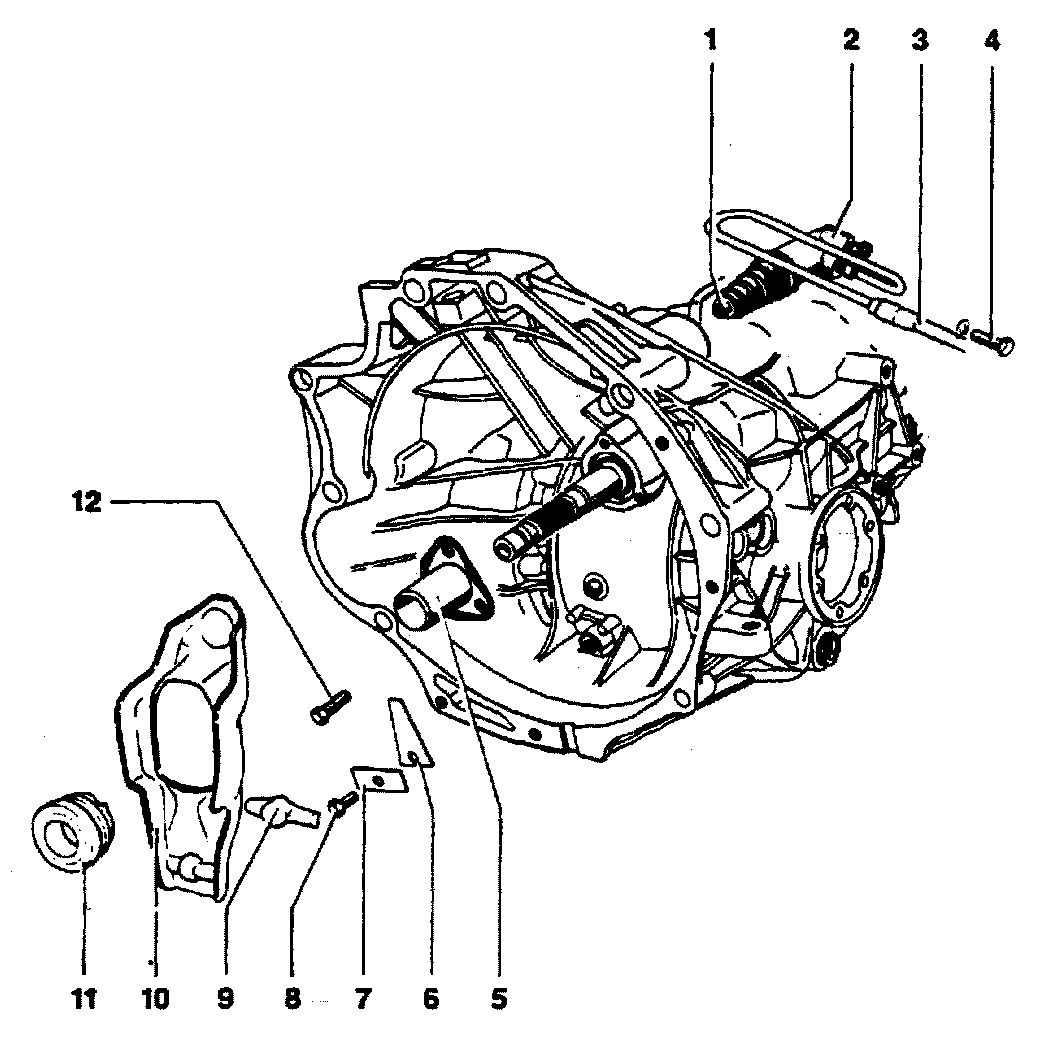

Clutch Release Fork, M/T

1. Push rod
Grease end lightly with MoS2 grease

2. Clutch cylinder
Remove/install along with pressure hose - item 3
Install only when transmissionis installed
after slave cylinder is installed, connect pressure line and bleed clutch system Bleeding Clutch Hydraulic System

3. Pressure hose
Must not contact other components

4. 25 Nm (18 ft lb)
5. Guide sleeve
6. Leaf spring
7. Holding plate
8. 15 Nm (11 ft lb)
9. Spacer
10. Clutch release lever

11. Clutch release bearing
Do NOT wash tearing: wipe off
Replace noisy bearings
Apply MoS2 grease to contact surfaces at release lever
To secure at lever, rotate 45° from installation position and turn to engage

12. 15 Nm (11 ft lb)
