Distributor: Service and Repair

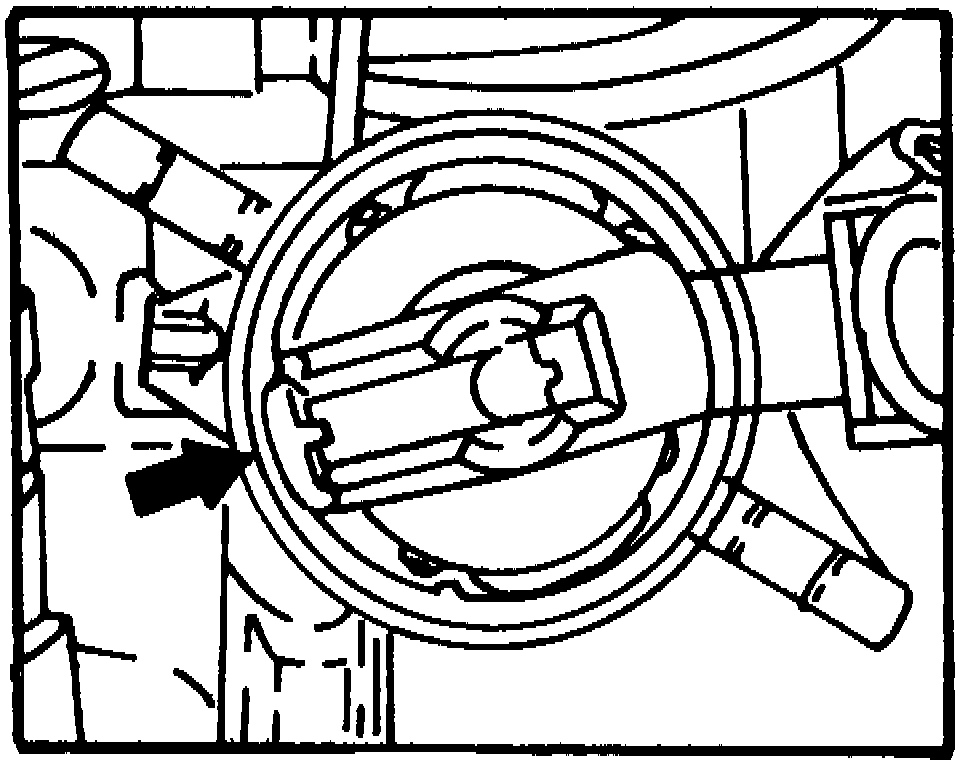

REPLACEFig.5 Distributor Housing To Rotor Tip Mark Alignment.:
1.
Ensure ignition switch is in OFF position.
2.
Disconnect electrical connector, then remove
distributor cap.
3.
Loosen
distributor clamp bolt, then align center of rotor tip with mark on distributor housing,
Fig.5.
4.
Remove
distributor clamp bolt, then the distributor.
5.
Reverse procedure to install.
