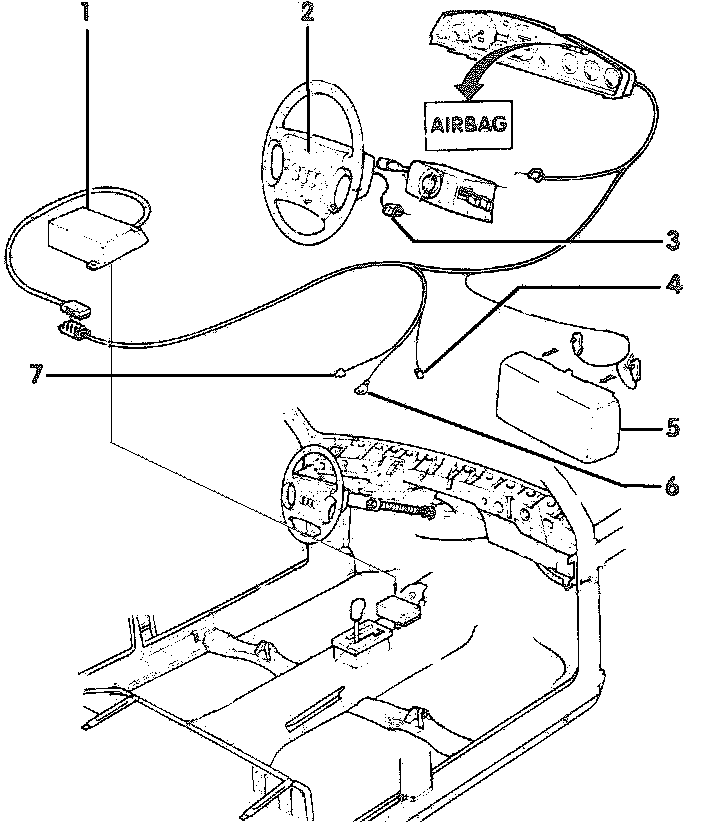

Air Bag Control Module: Locations
LEGEND 1
=
Trigger Unit
2
=
Driver's Air Bag Unit
3
=
Spiral Spring Connector
4
=
Voltage Supply Connector
connects to black adaptor in electronic box
5
=
Passenger's Air Bag Unit
6
=
Ground Connection
7
=
Data Link Connector
located in electronic box position 5
