Knock Sensor - Terminal Identification Correction
Group: 28Number: 96-03
Date: Sept. 10, 1996
File This Technical Bulletin in Repair Manual No: W42 014 195 102
Subject:
Knock Sensor Terminal Number, Correction
Model(s):
A4 2.8L 1996 -->
with OBDII (MMS410)
The following information up--dates page 28-32 of the Repair Manual listed above.
This information will be incorporated in the next Repair Manual up-date.
^ Knock sensor 1 (bank 1):

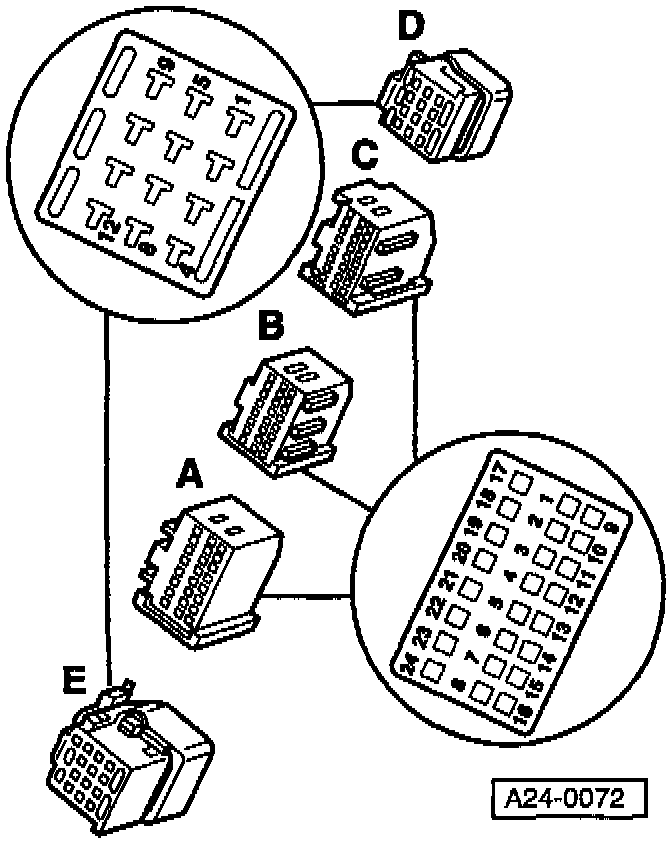

Knock sensor ECM connector A or
terminal number engine ground (GND)
1 (Ground) A14
2 (Signal) A13
3 (Shield) Engine Ground (GND)
^ Knock sensor 2 (bank 2):
Knock sensor ECM connector A or
terminal number engine ground (GND)
1 (Ground) A14
2 (Signal) A15
3 (Shield) Engine Ground (GND)
