TCM

NOTES:
- Selector lever position in "P" or "N"
- Engine and vehicle at standstill
- When coding the DTC memory OBD is erased

- Connect Scan tool VAG 1551, enter Code word "O2 Transmission electronics" and follow through program until "Function selected XX" appears on Display, Connecting and Operating VAG 1551 Scan Tool

Readout in display

Rapid data transfer Help
Select function XX

- Press buttons 0 and 7. (With 07 the function "coding control module" is selected)

Readout in display

Rapid data transfer Q
07 Code control module

- Confirm input with Q-button

Readout in display

Code control module Help
Input code number XXXXX

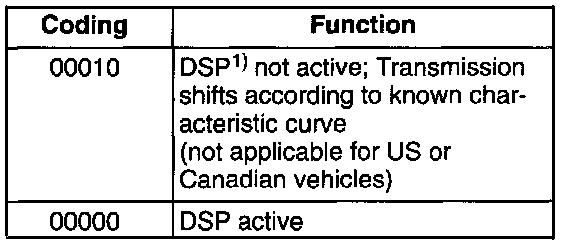

- Input Code





1) Dynamic shift program: optimal matching of transmission shift characteristics to the respective driving conditions.

- Input with Q key.
- Push - key.

Readout in display

Rapid data transfer Help
Select function XX

- Activate control module identification and check if coding just input was taken over, Control Module
