Read Measuring Block Values

- Connect Scan Tool VAG 1551, enter address word "02 Transmission electronics" and move forward in program until "Select function XX" appears in display. Connecting and Operating VAG 1551 Scan Tool

Readout in display

Rapid data transfer Help
Select function XX


Readout in display

Rapid data transfer Q
08 - Read measuring value block

- Press keys 0 and 8. (The function "Read measuring value block is selected with 08.)

Readout in display

Rapid data transfer Help
Enter display group number XX

- Confirm entry with Q key.

Read Measuring Block Value 1
1 2 3 4

- Enter display group number. - List of display group numbers available.
- Confirm entry with Q key.

4 display fields always appear in the measuring value block. For an explanation of values 1 to 4 in the individual display fields - Test table.

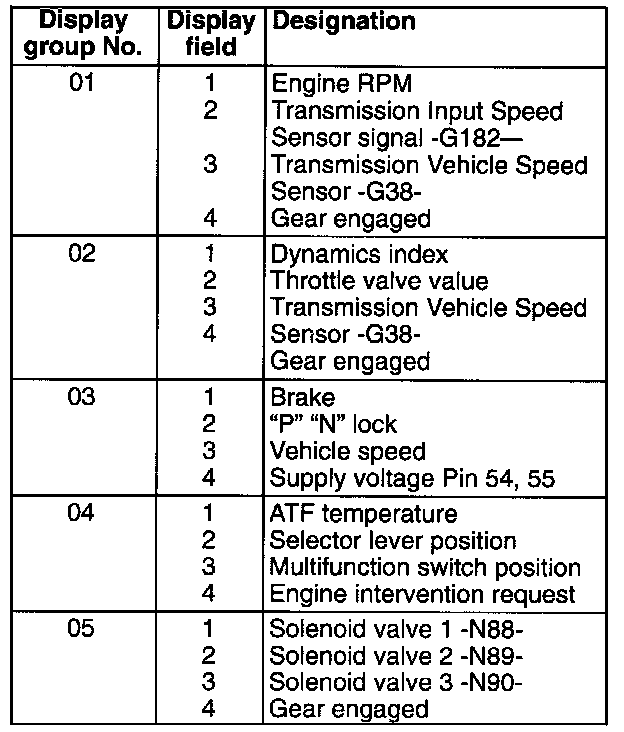

Display Group 01 To 05:

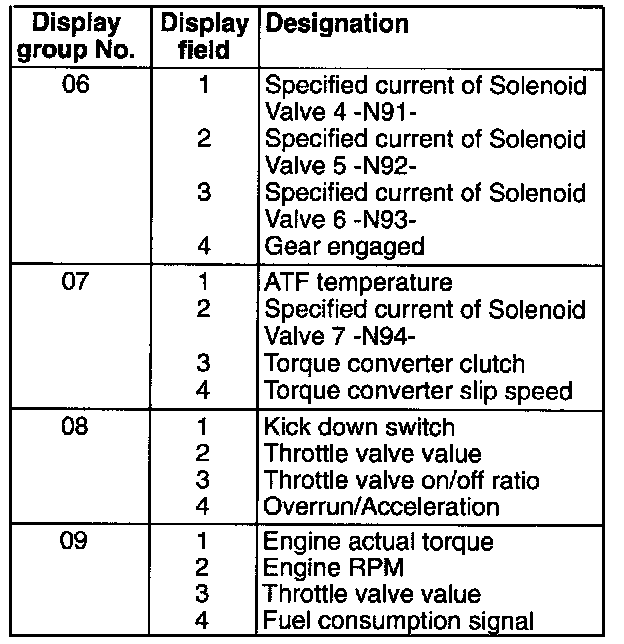

Display Group 06 To 09:

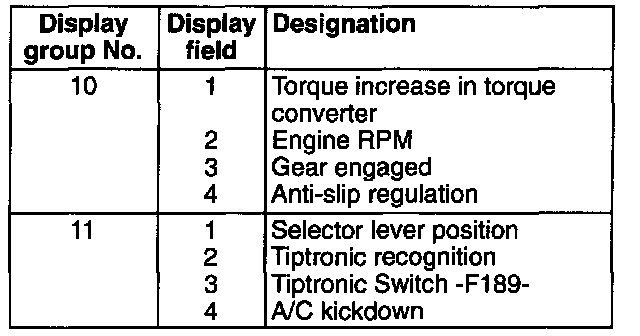

Display Group 10 To 11:





List of available display group numbers

NOTE:
- If the printer is switched on, the current readout in the display is printed out on the test log.
If the specifications are achieved in all the display fields:
- Press key.

Readout in display

Rapid data transfer Help
Select function XX
