Timing Chain

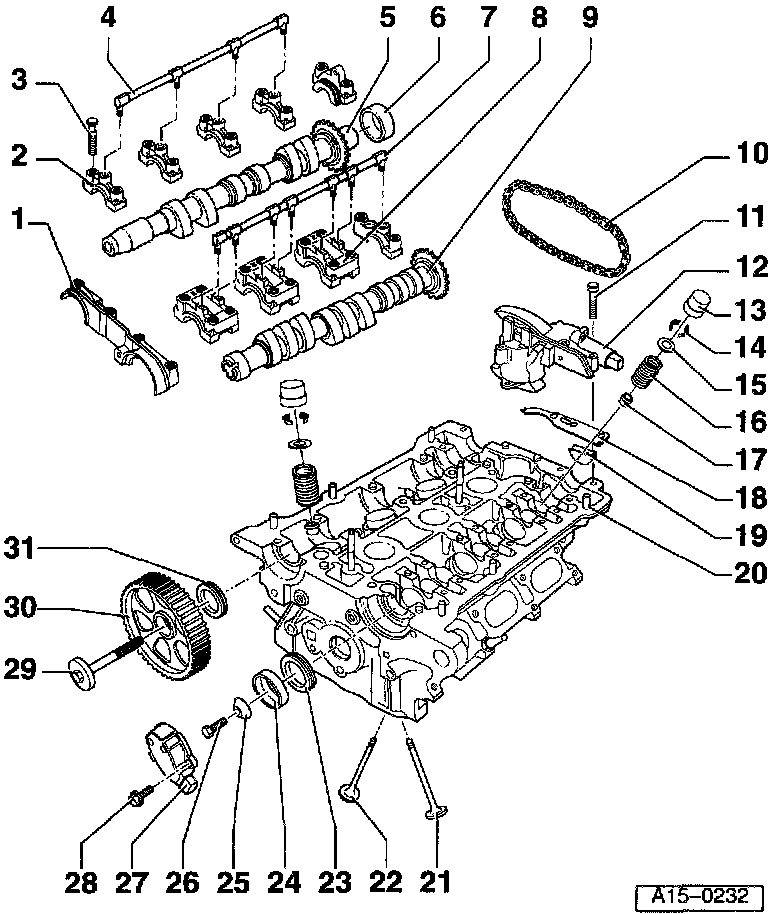

Cylinder head with oil lines to camshaft bearings





1. Double bearing cap
2. Exhaust camshaft bearing cap
3. Bolt
4. Oil line
5. Exhaust camshaft
6. Cap
7. Oil line
8. Intake camshaft bearing cap
9. Intake camshaft
10. Drive chain
11. Bolt
12. Mechanical camshaft adjuster
13. Hydraulic valve lifter (intake)
14. Valve keepers
15. Valve spring retainer
16. Valve spring
17. Valve stem oil seal
18. Rubber/metal seal
19. Seal
20. Cylinder head
21. Exhaust valve
22. Intake valve
23. Oil seal
24. Shutter wheel for CMP sensor -G40-
25. Washer
26. Bolt
27. CMP sensor
28. Bolt
29. Bolt
30. Camshaft sprocket
31. Oil seal
