Evaluating Measured Value Blocks

Display group overview:

Display group number Indicated on display
001 1 = Speed signal from speedometer
2 = Voltage terminal 30

002 1 = Condition of input Reverse light switch
2 = Condition of input terminal 15

003 1 = GPS-antenna
2 = Condition remote supply
GPS-antenna

004 1 = External display
2 = Communication function to external display

005 1 = Data-bus
2 = Communication function
Information data-bus

006 1 = left
2 = Speed (GALA) in km/h

007 1 = Content of function status register

008 1 = front speaker
2 = Condition of front speaker

010 1 = Telephone
2 = Condition of input telephone mute
3 = Telephone
4 = Condition of output telephone mute

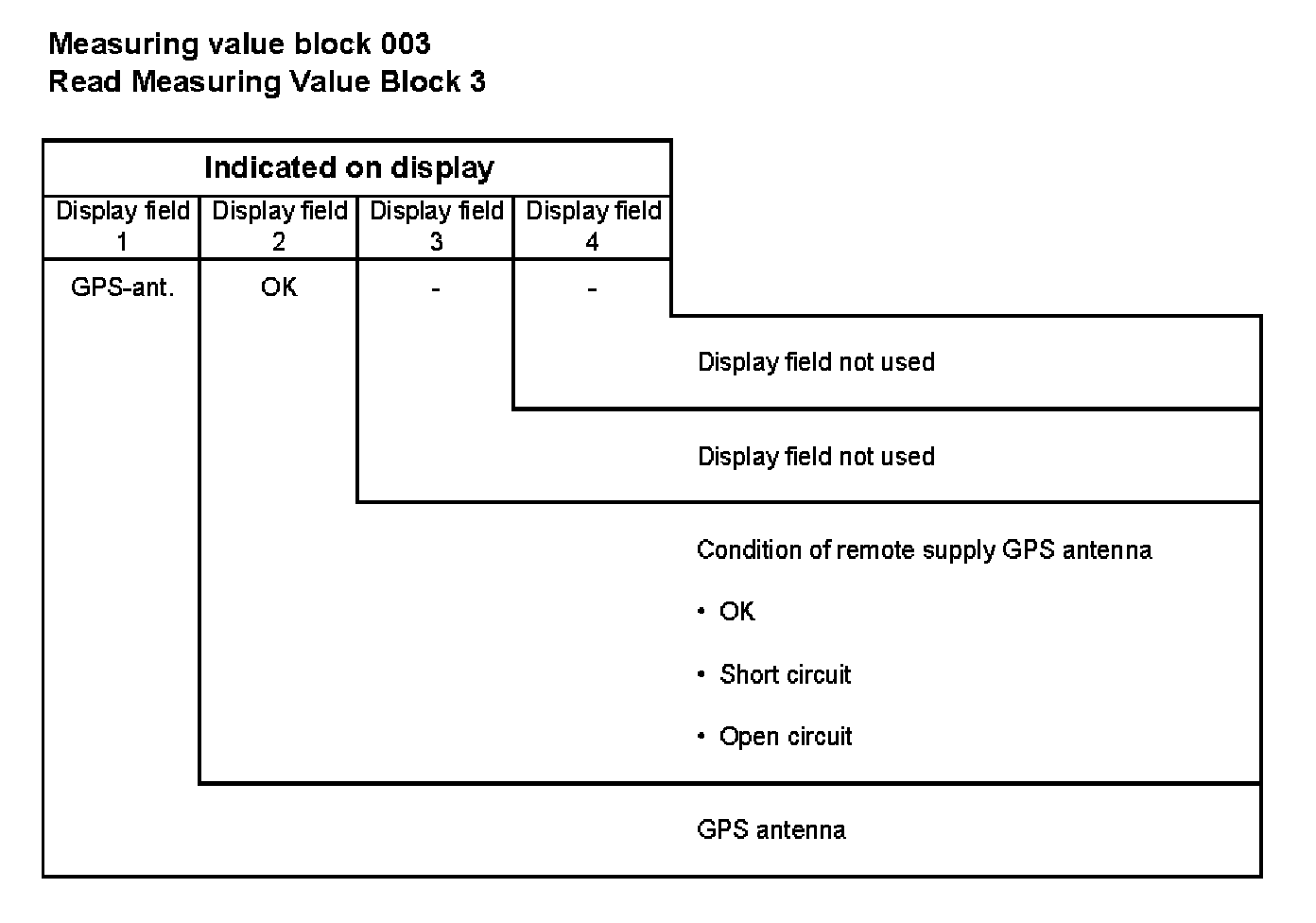

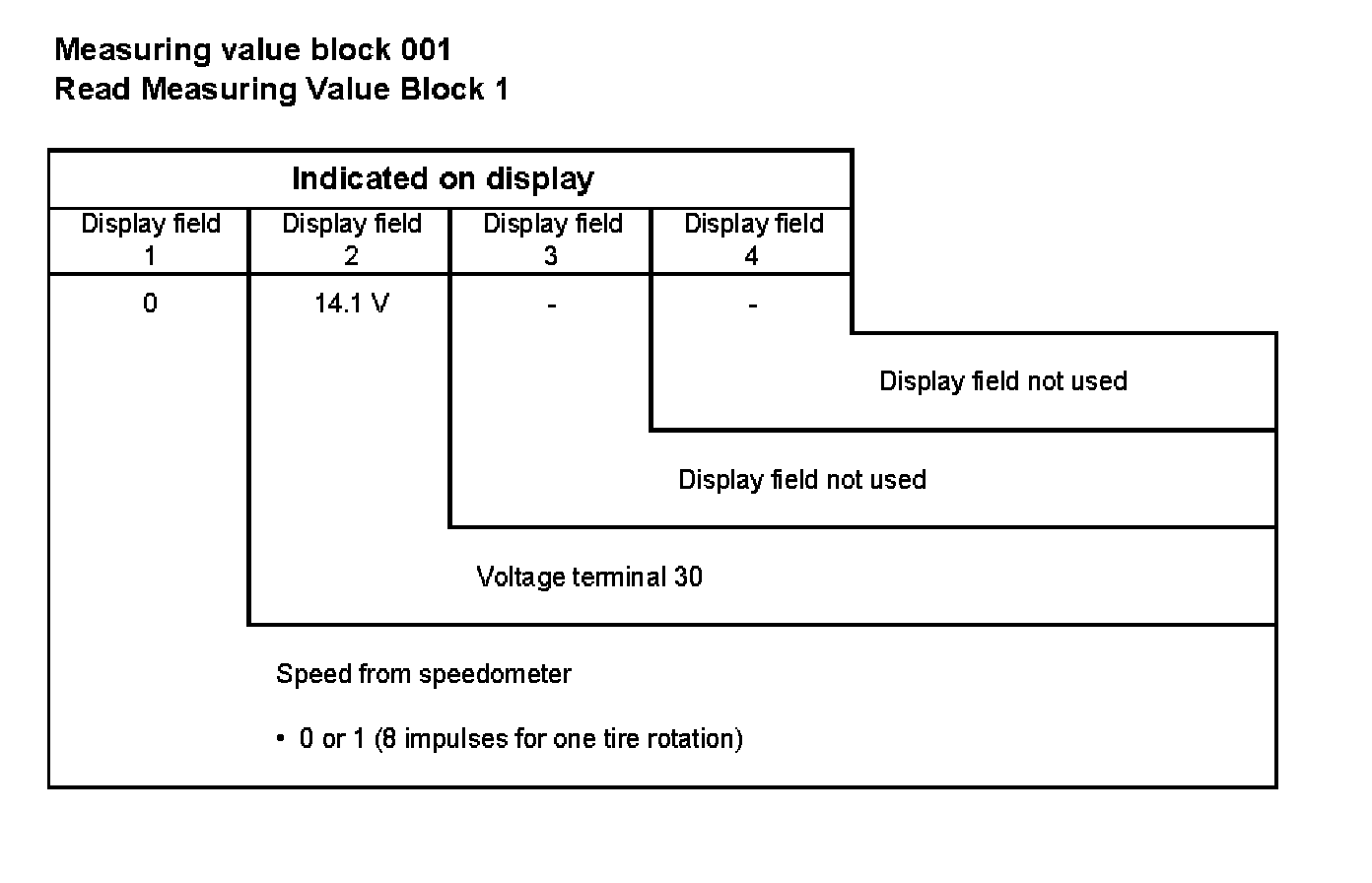

Measuring value block 001

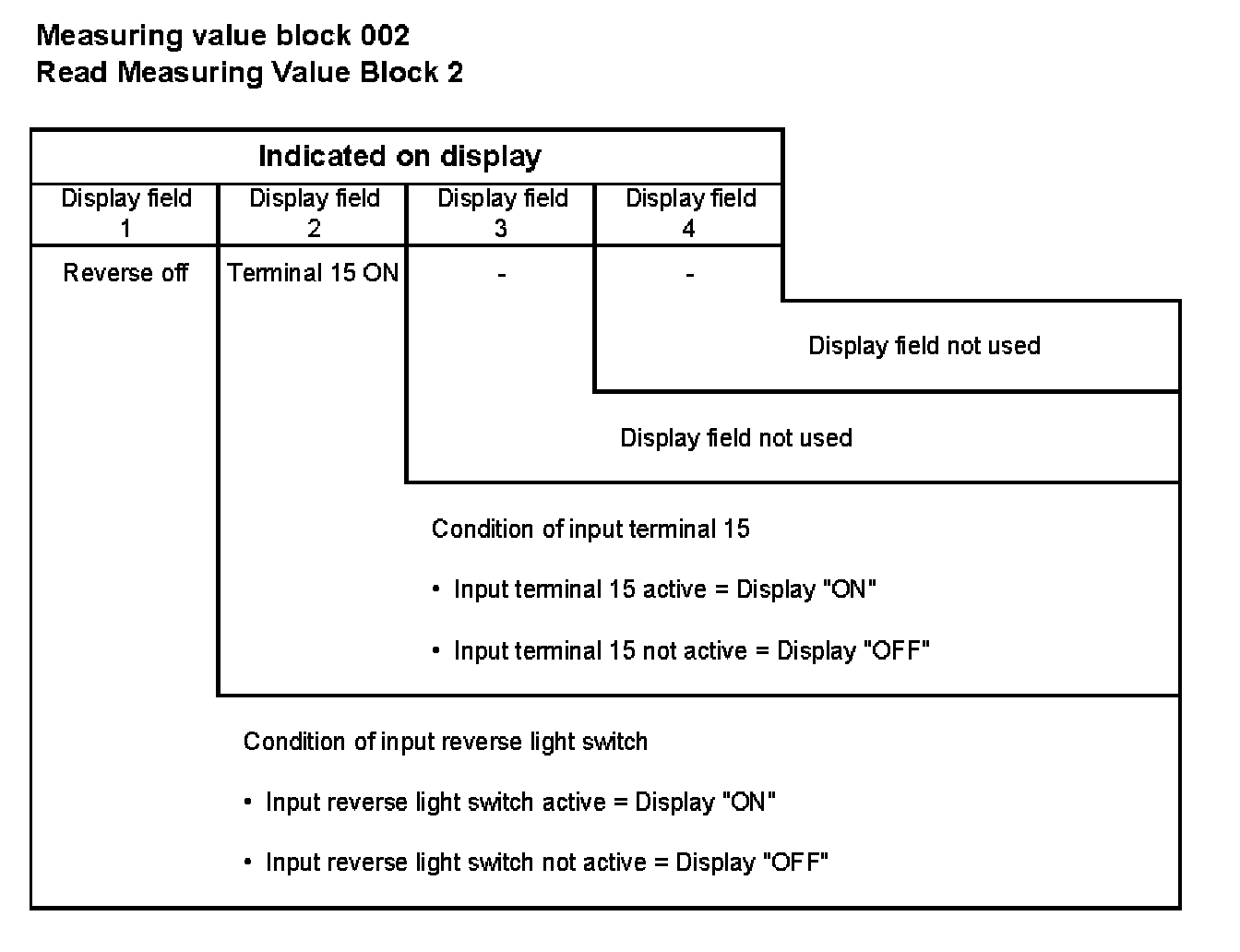

Measuring value block 002







Measuring value block 003

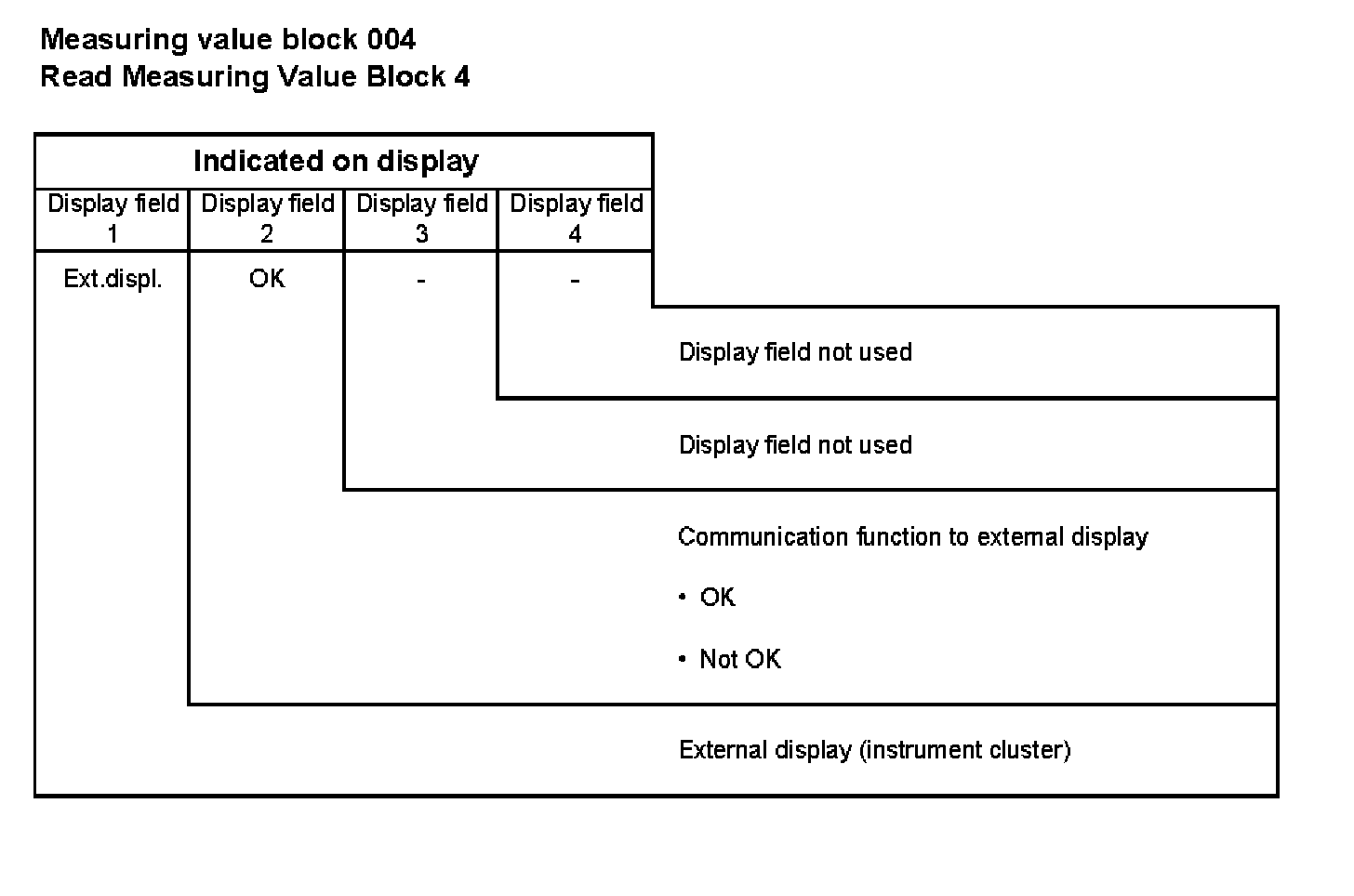

Measuring value block 004

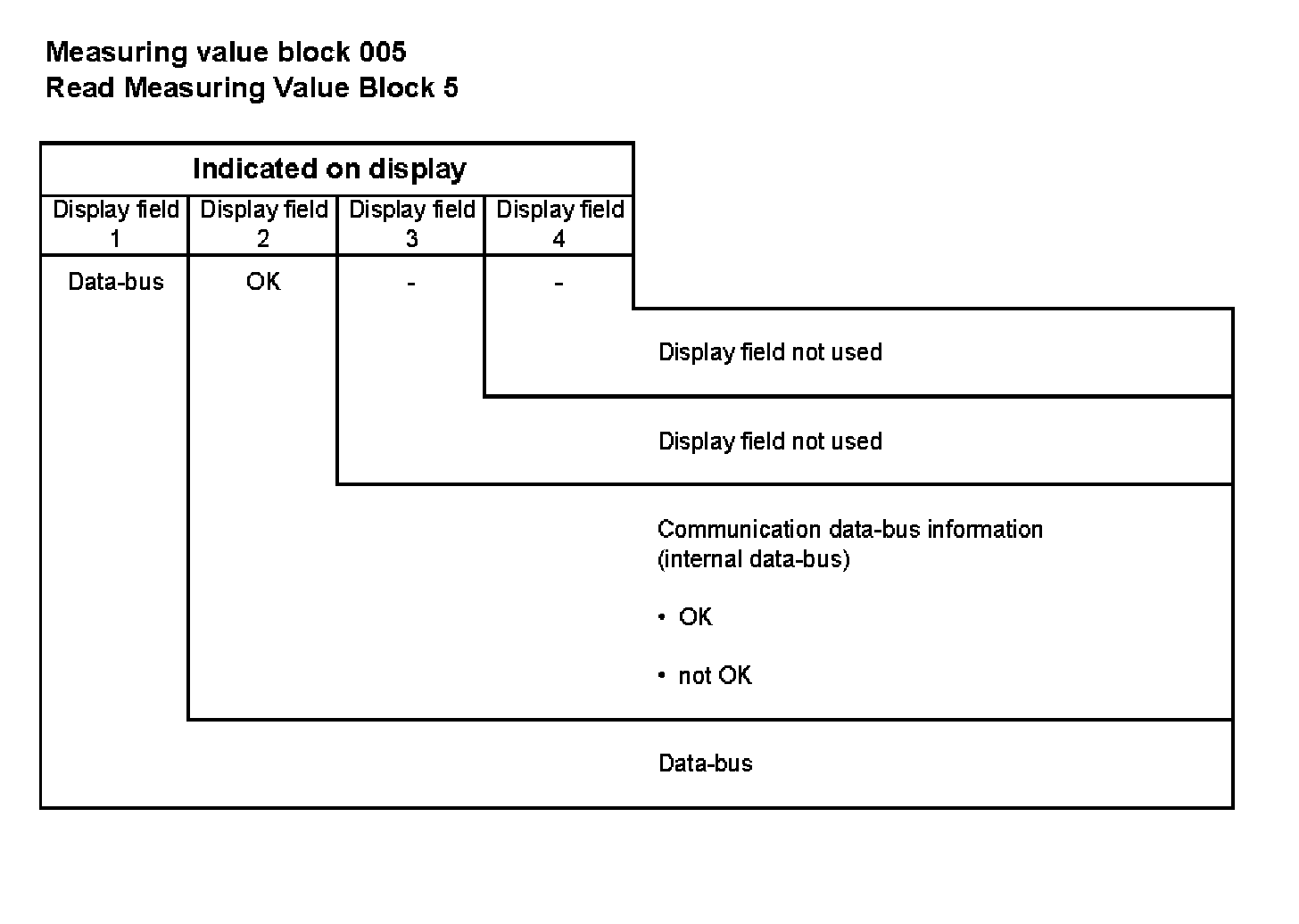

Measuring value block 005

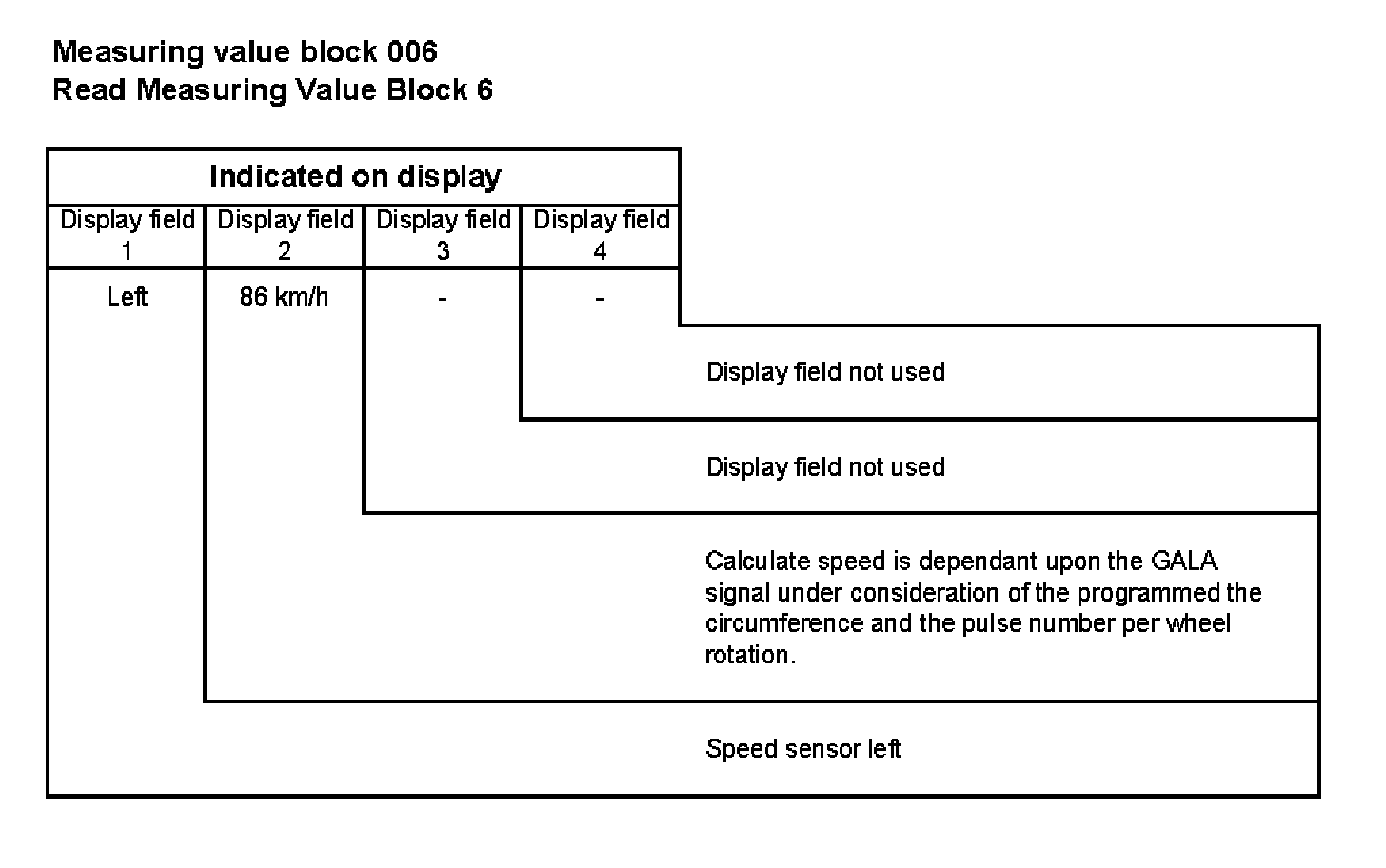

Measuring value block 006

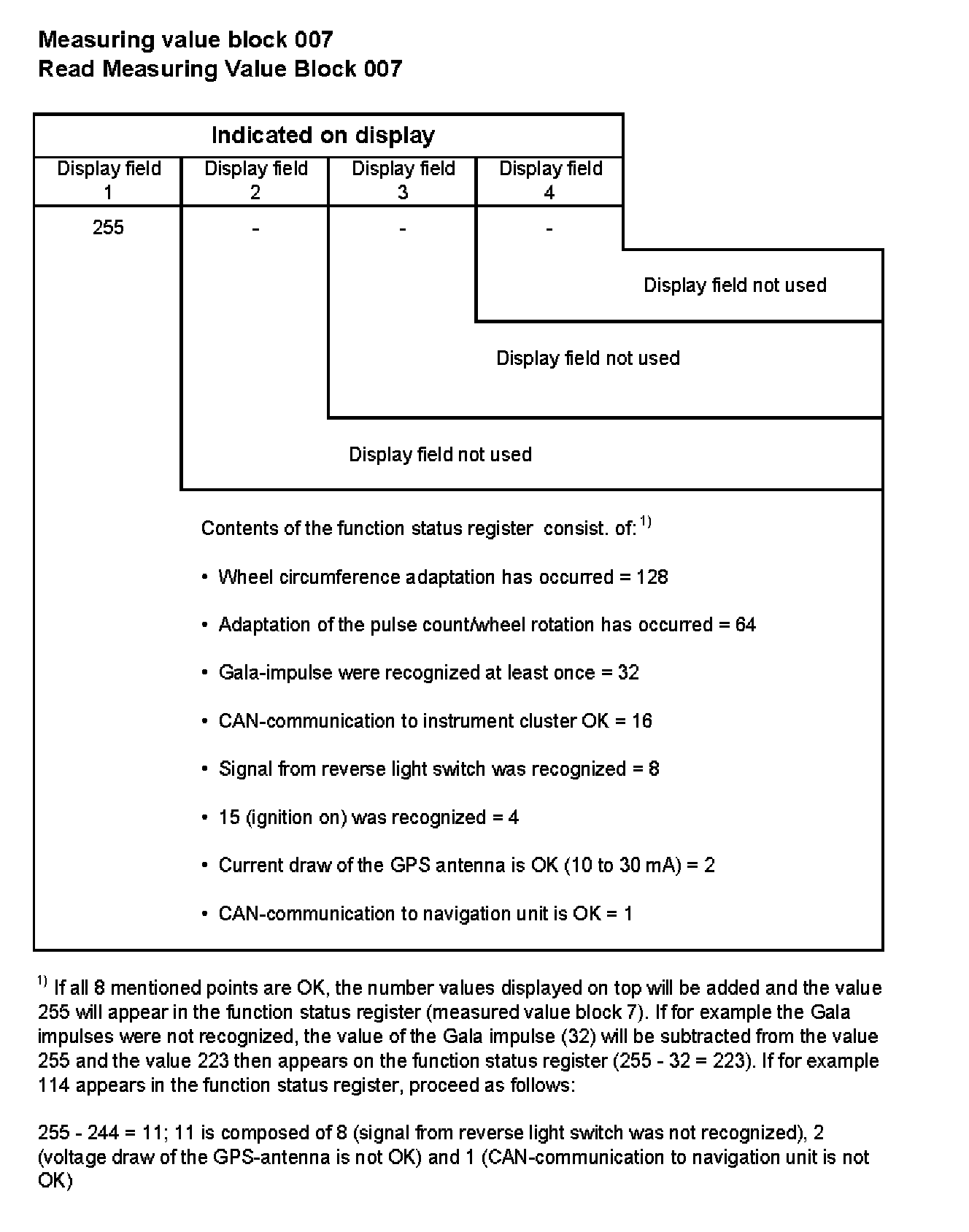

Measuring value block 007

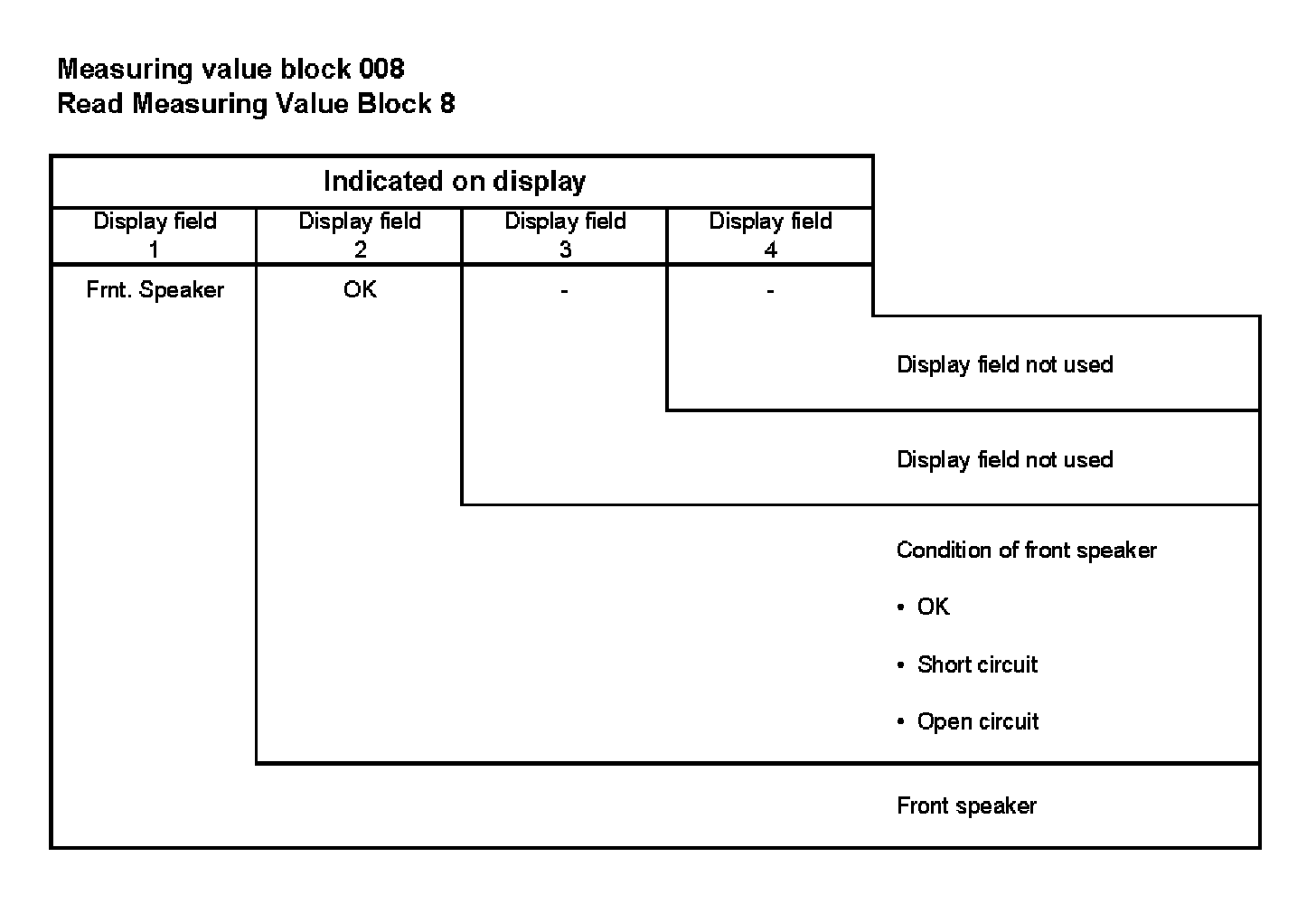

Measuring value block 008

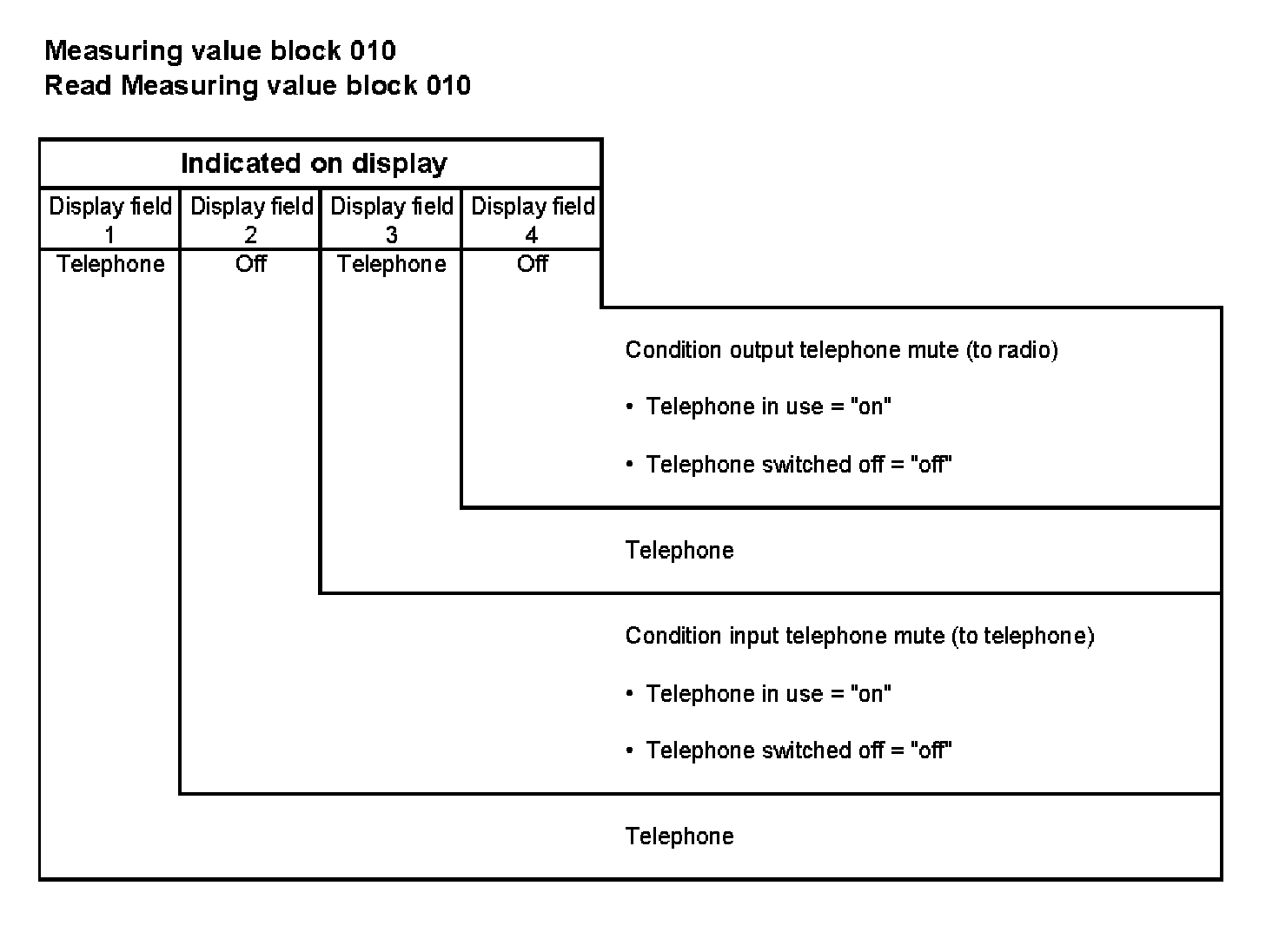

Measuring value block 010
