Erase DTC Memory (Function 05), End Output (Function 06)

Requirements
- DTC memory was checked

1. Erase DTC Memory (function 05)
- Press (arrow) button.

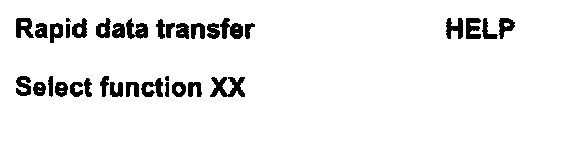

Indicated on display:(Function selection screen)
- Press buttons -O- and -5- to select "Erase DTC Memory", function 05.

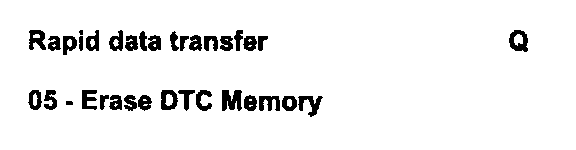

Indicated on display:
- Press -- Q -- button to confirm input.

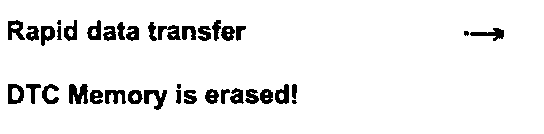

Indicated on display:
- Press (arrow) button.

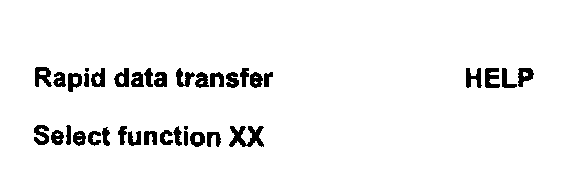

Indicated on display:(Function selection screen)





Notes:

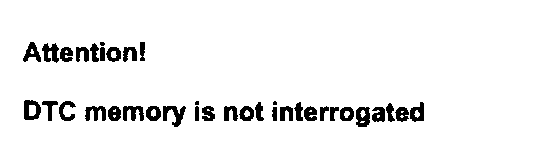

- If this is displayed, the check sequence has not been carried out.
- Follow test sequence exactly: First check DTC memory, then erase it.

2. End Output (function 06)
- Press buttons -0- and -6- to end output.

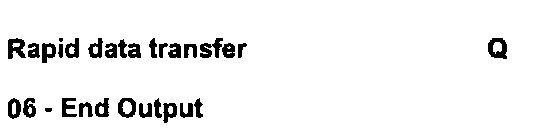

Indicated on display:
- Press -- Q -- button to confirm input.

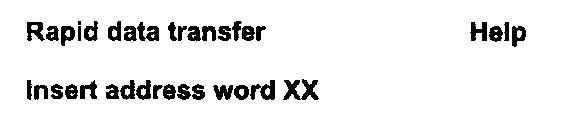

Indicated on display:
- Switch off ignition.
- Disconnect harness connector for the VAG1551 scan tool
- Switch on ignition
ABS warning light -K47- must go out after approximately 2 seconds.
