Evaluating Display Group 06

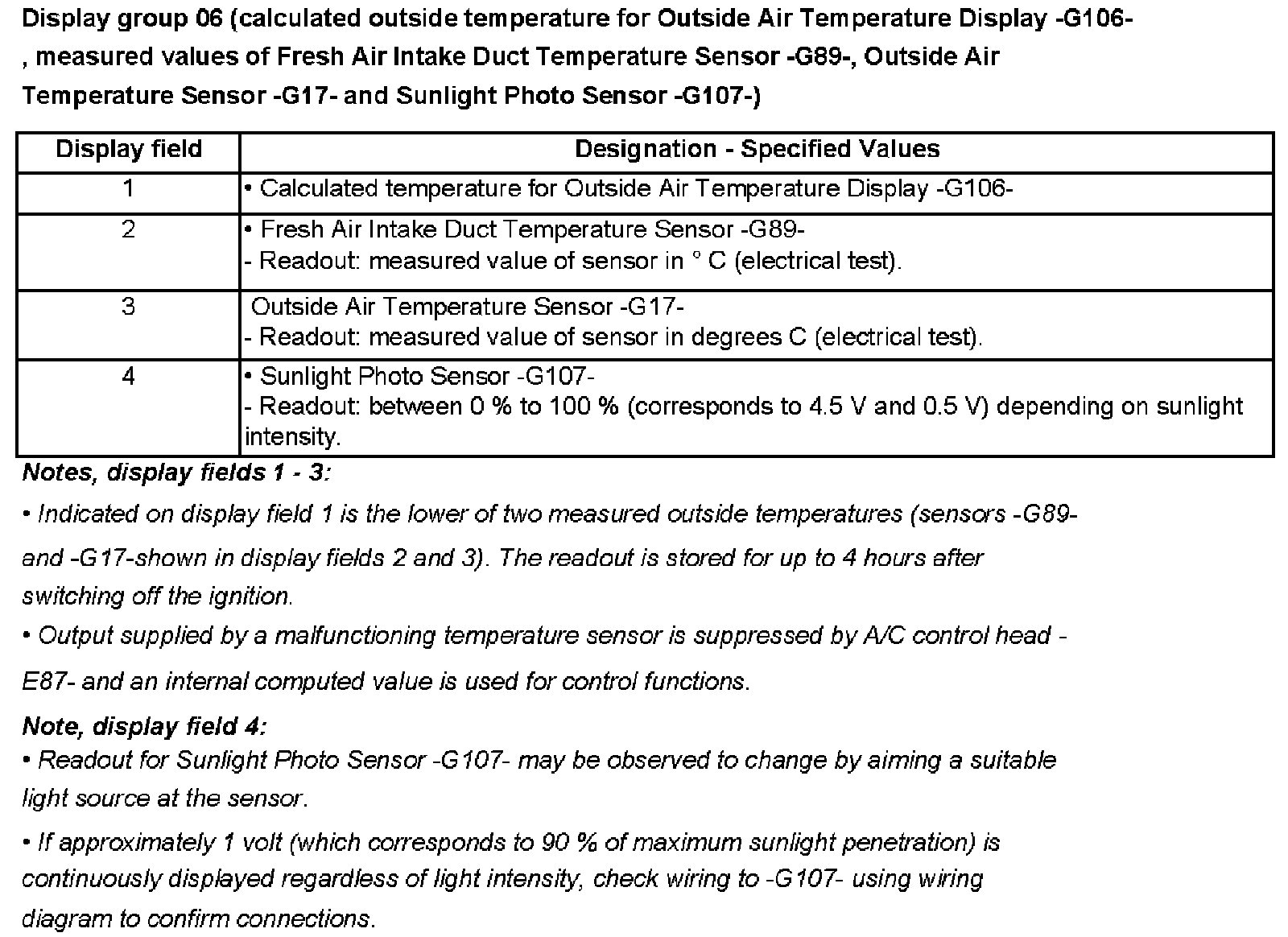

Display group 06 (calculated outside temperature for Outside Air Temperature Display -G106- measured values of Fresh Air Intake Duct Temperature Sensor -G89-, Outside Air Temperature Sensor -G17- and Sunlight Photo Sensor -G107-)


Display Field 1 - 4:
