Display Group 020 & 021

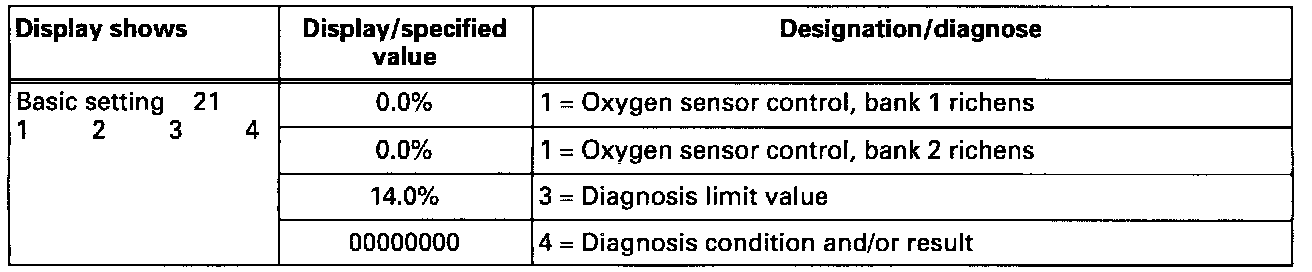

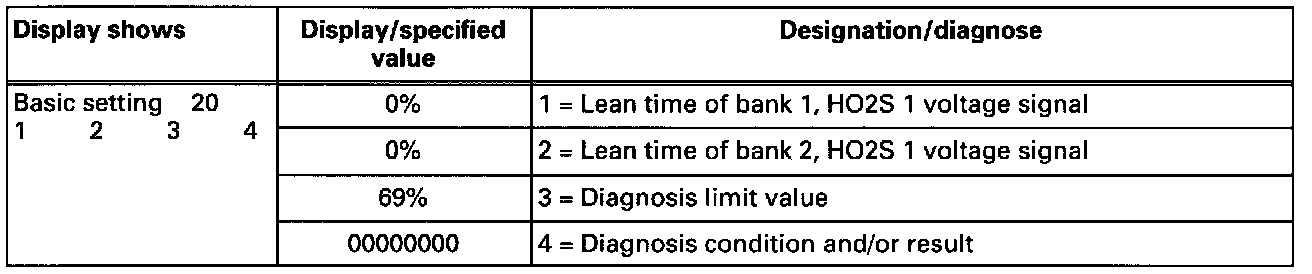

Display Groups 020 And 021:





Display Group 022:





NOTE: Display groups 020 and 021 are only considered in vehicles with Secondary Air Injection (AIR) system.
