Control Module Identification



Depending on the production status (data status), the control module may display a different control module identification than shown in this example. For allocation of the control module, refer to Parts Catalog.
- 8D0927156: Part Number
- AG5 01 V: 5-Speed Automatic transmission 01V
- D59: EPROM (data status)

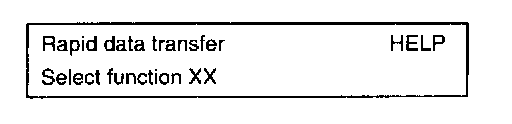

Readout in display.





A list of the possible causes of malfunctions can be printed out by pressing the HELP key.
- After correcting possible causes of malfunctions, once again enter address word 02 for "transmission electronics" and confirm with 0 key.

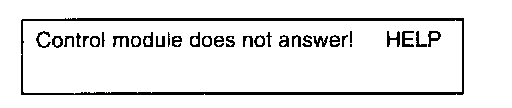

Readout in display.





If "Control module does not answer!" is again displayed:
Test supply voltage of the control unit.
- Perform test step 1, Electrical test. Component Tests and General Diagnostics
- Check wiring connections to Data Link Connector (DLC).
Refer to DTC table, under DTC 65535, Control module faulty!
- Press -> key.

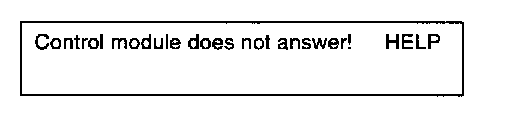

Readout in display.





A list of the possible functions is printed out after pressing the HELP key.
