Test Notes



- Connect Scan Tool VAG 1551, enter address word "02 Transmission electronics" and move forward in program until "Select function XV appears in display.

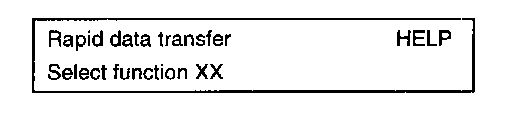

Readout in display.
- Press keys 0 and 8. (The function "Read measuring value block" is selected with 08.)





Readout in display.
- Confirm entry with Q key.

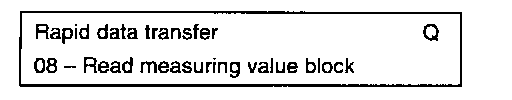

Readout in display.

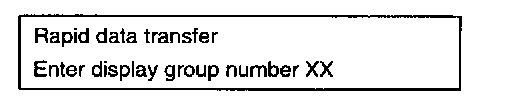

- Enter display group number. Refer to List of display group numbers available.
- Confirm entry with 0 key.





Readout in display.

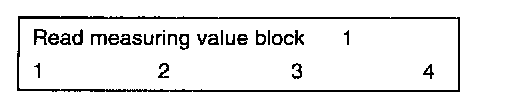

4 display fields always appear in the measuring value block. For an explanation of values 1 to 4 in the individual display fields Refer to Test table.

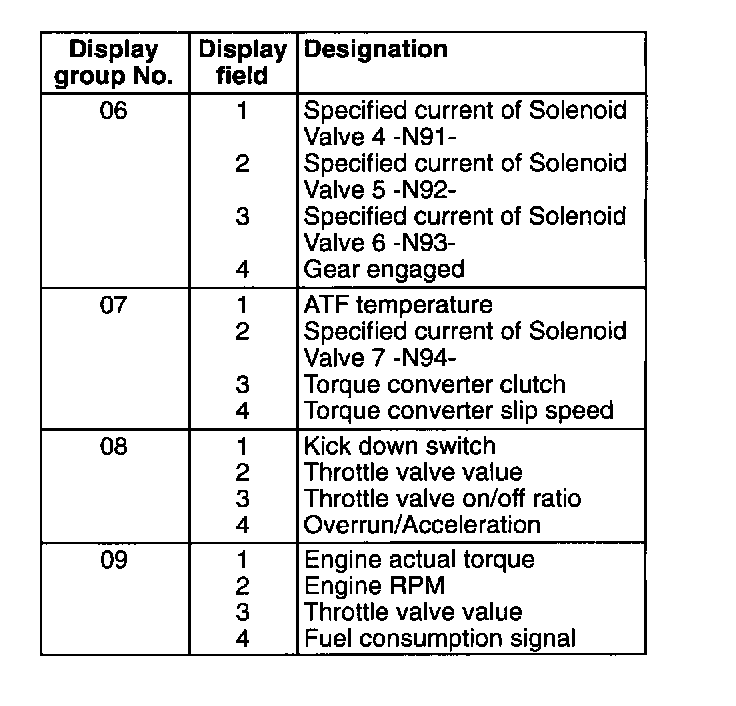

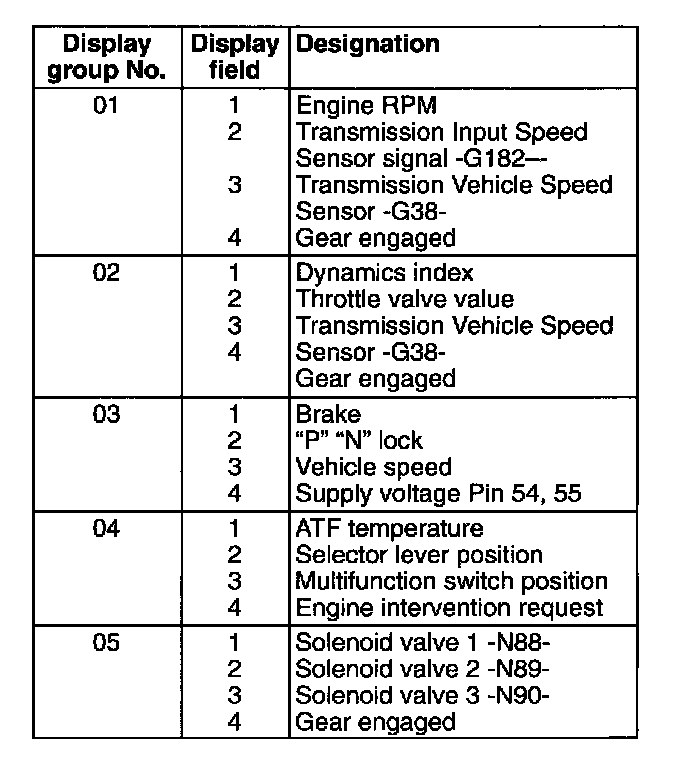

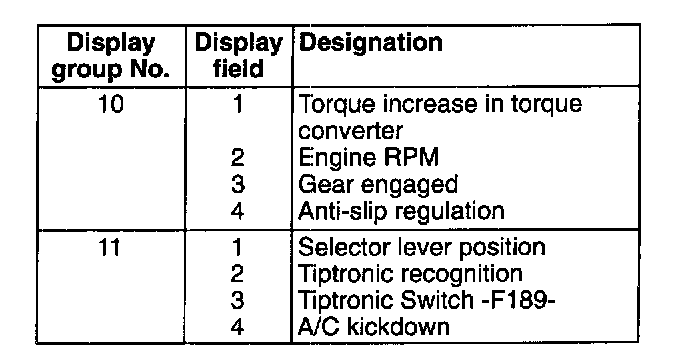

List of available display group numbers

Notes:
- If the printer is switched on, the current readout in the display is printed out on the test log.

If the specifications are achieved in all the display fields:

- Press key.

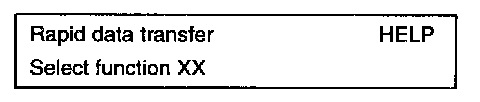

Readout in display.
