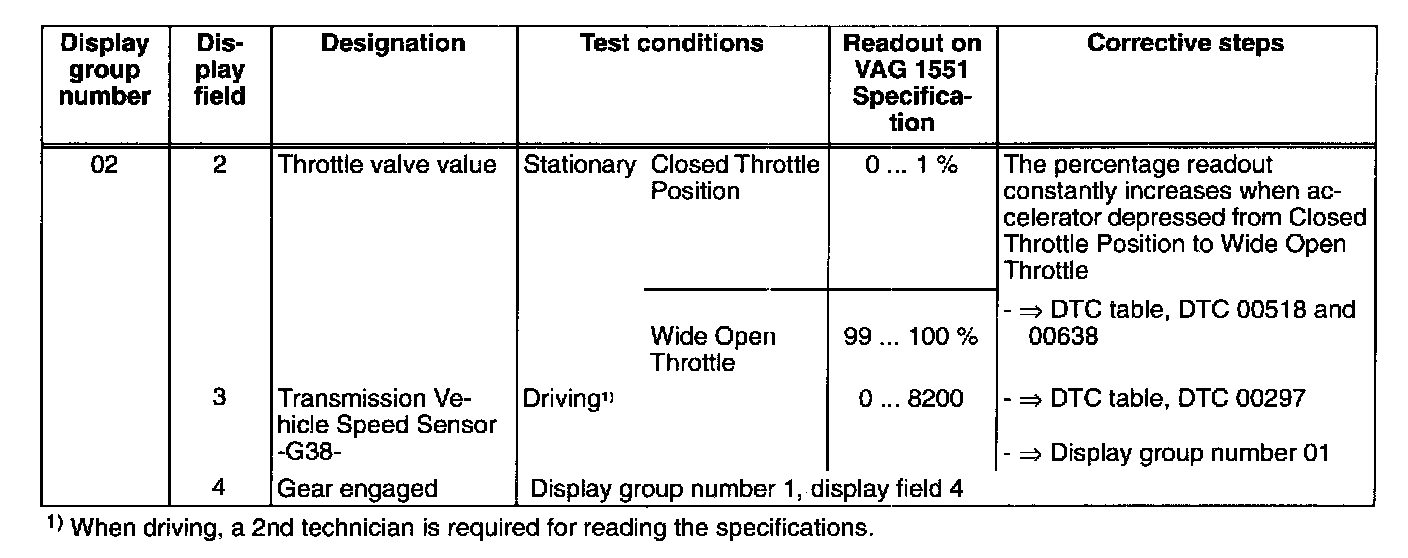

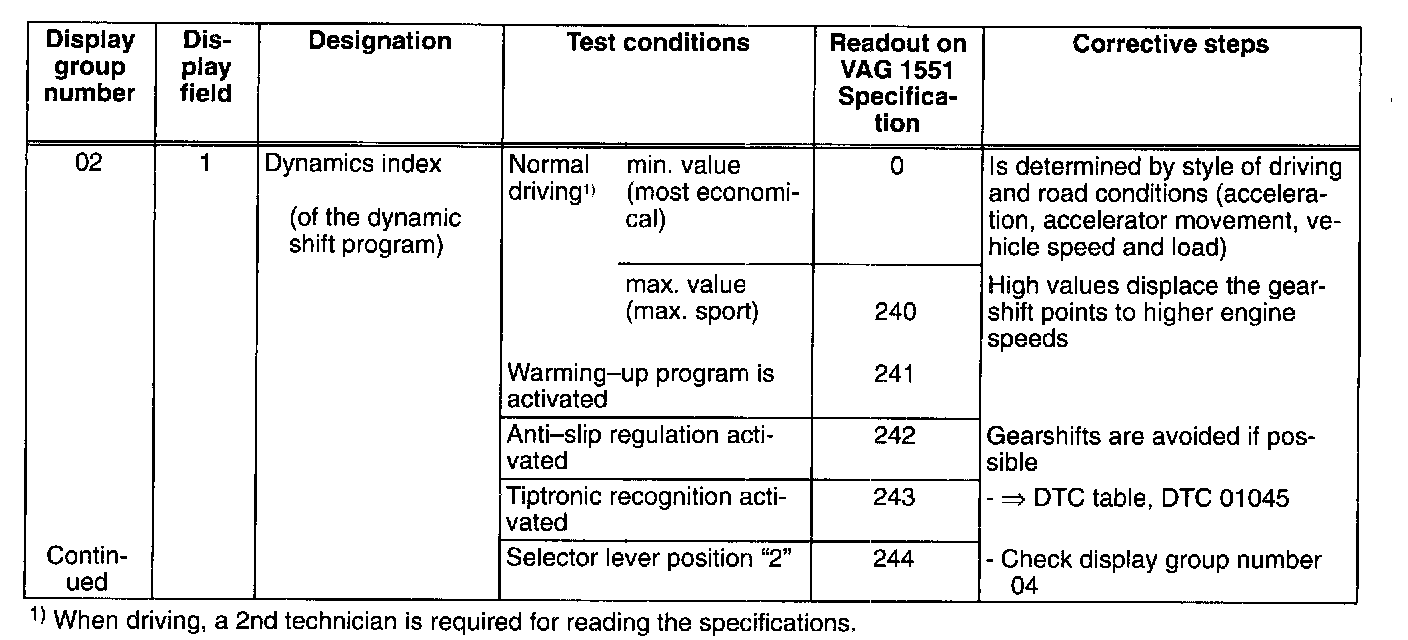

Display Group 02








WARNING!
When driving or riding in airbag equipped vehicles, never hold test equipment in your hands or lap when the vehicle is in motion. Objects between you and the airbag can increase the risk of injury in an accident
