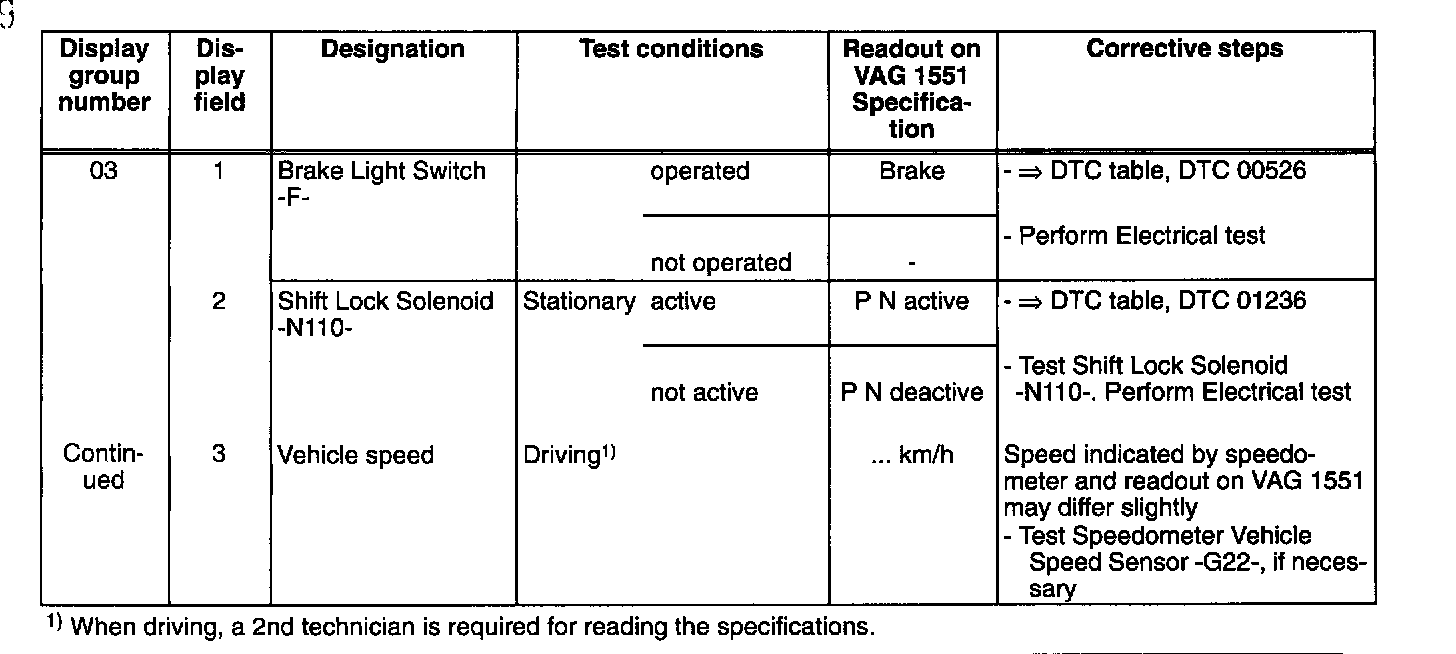

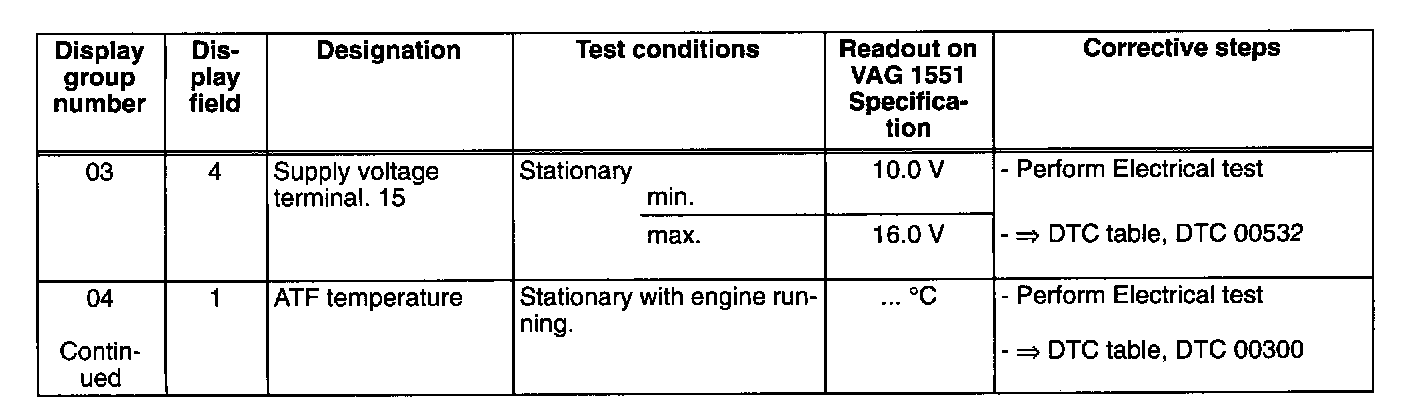

Display Group 03










WARNING!
When driving or riding in airbag equipped vehicles, never hold test equipment in your hands or lap when the vehicle is in motion. Objects between you and the airbag can increase the risk of injury in an accident.

Notes for ATF temperature:
- A detected temperature of minus 50°C indicates a short circuit to Ground.
- A detected temperature of 180°C indicates a short circuit to positive or an open circuit.
