Display Group 04

WARNING!
When driving or riding in airbag equipped vehicles, never hold test equipment in your hands or lap when the vehicle is in motion. Objects between you and the airbag can increase the risk of injury in an accident.

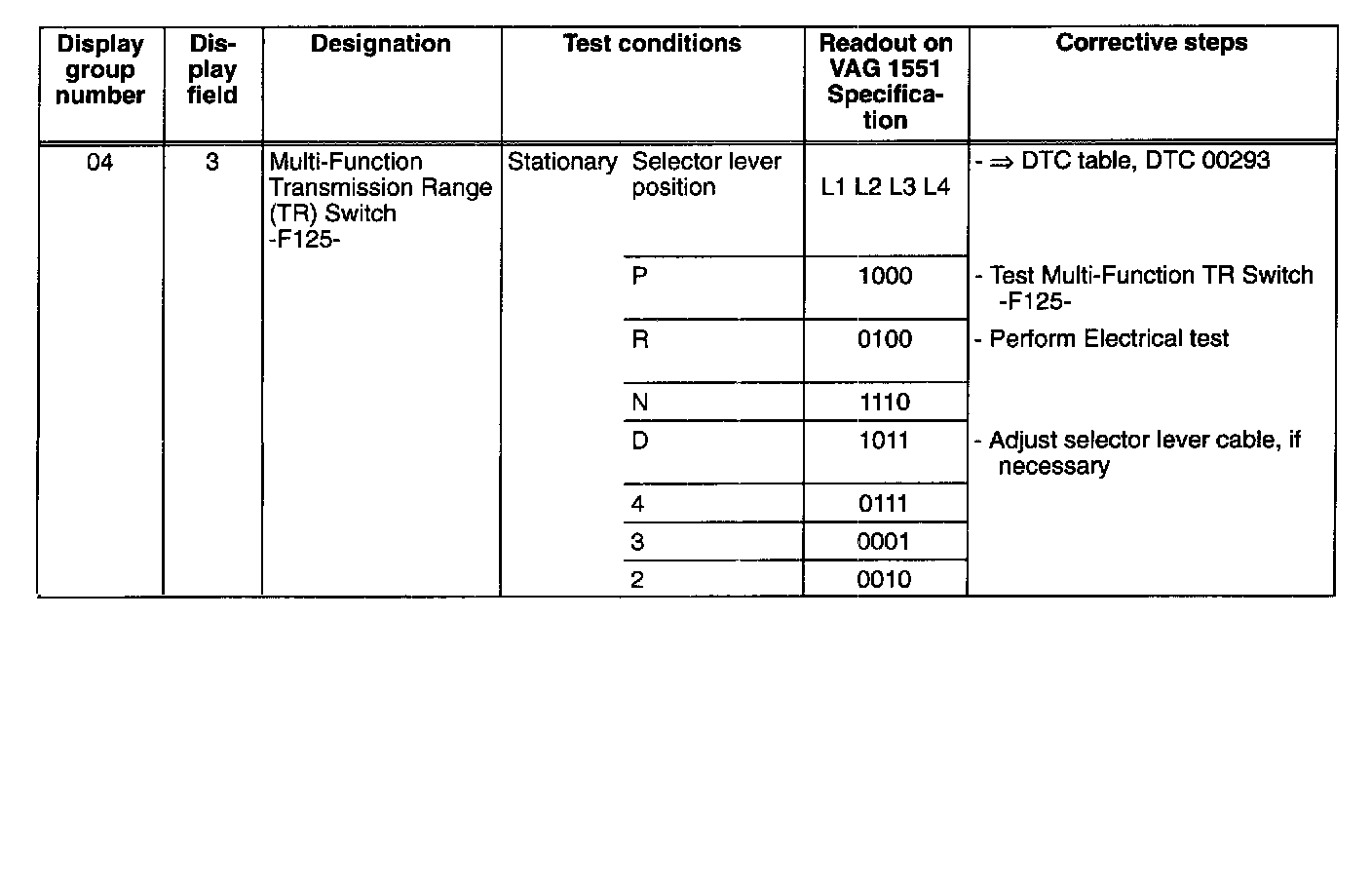

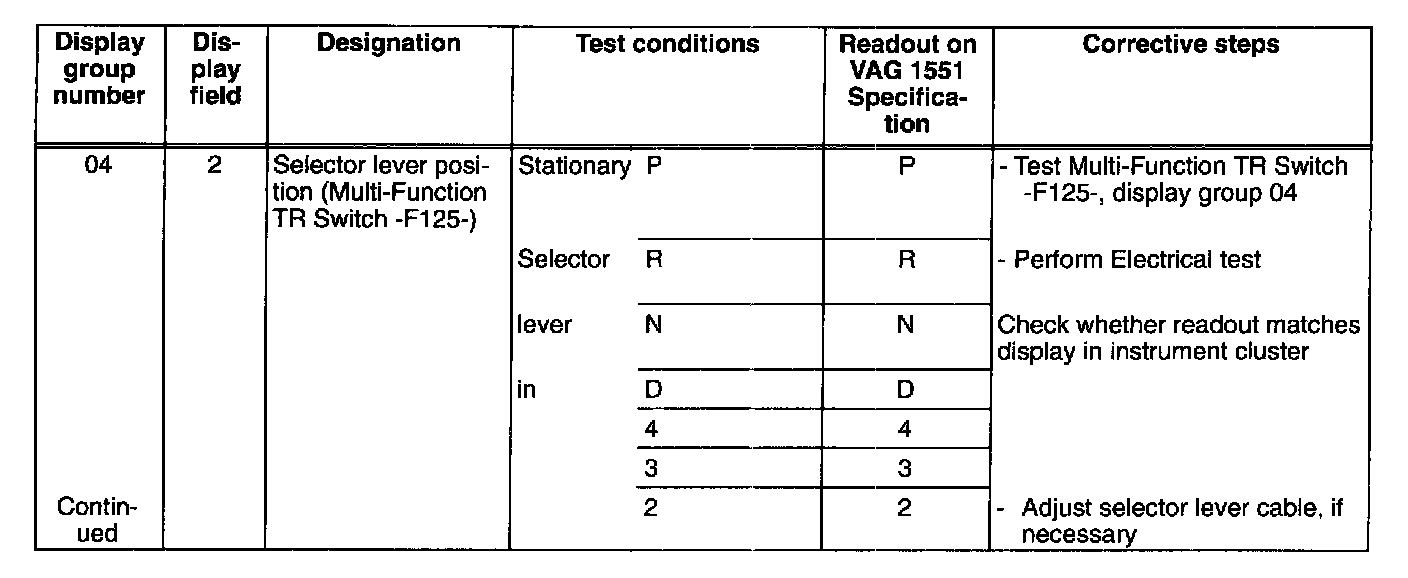

Note for Multi-Function TR Switch -F125-:

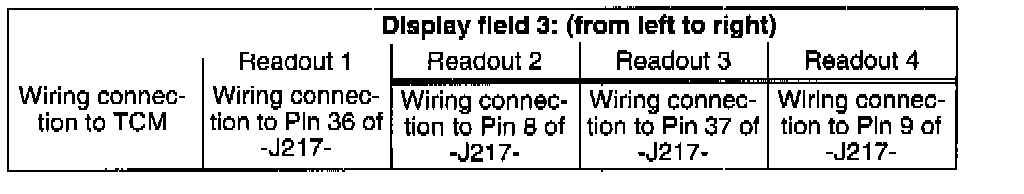

- The input signals of the Multi-Function TR Switch -F125- can be tested at the transmission control model.

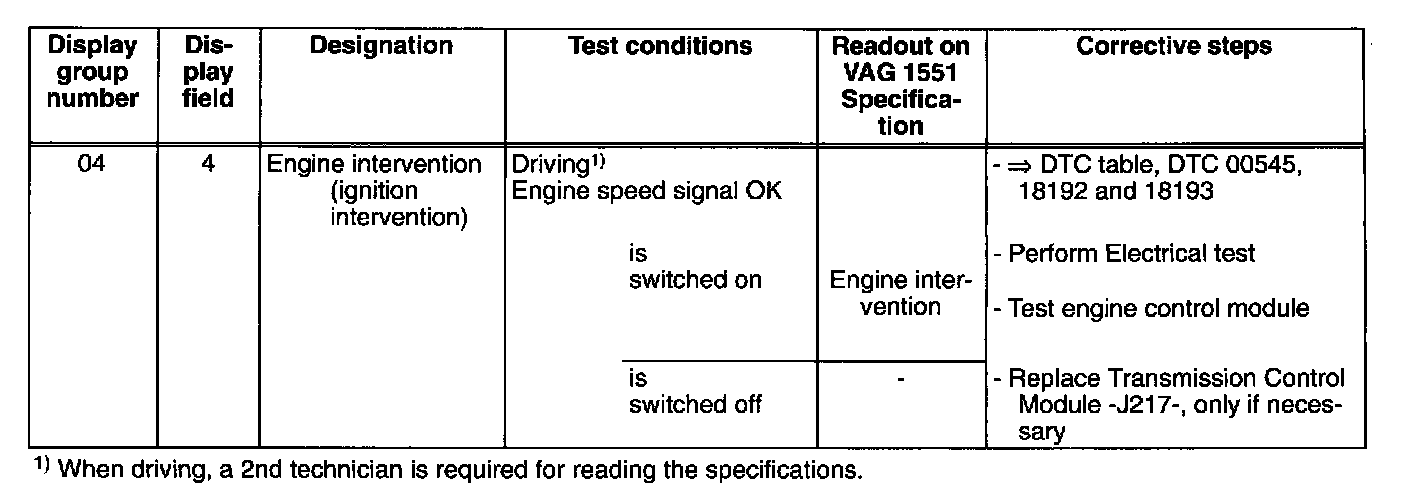

Note for Engine intervention:
- Engine intervention is activated only during a gearshift. Engine intervention may be active only for a very short time depending on the driving situation, i. e. the relatively slow data transfer to VAG 1551 may, in certain circumstances, ignore this brief engine intervention.
