Evaluating Measured Value Blocks

Vehicles 1997 Up To 1999: up to VIN 8D XA 200 000

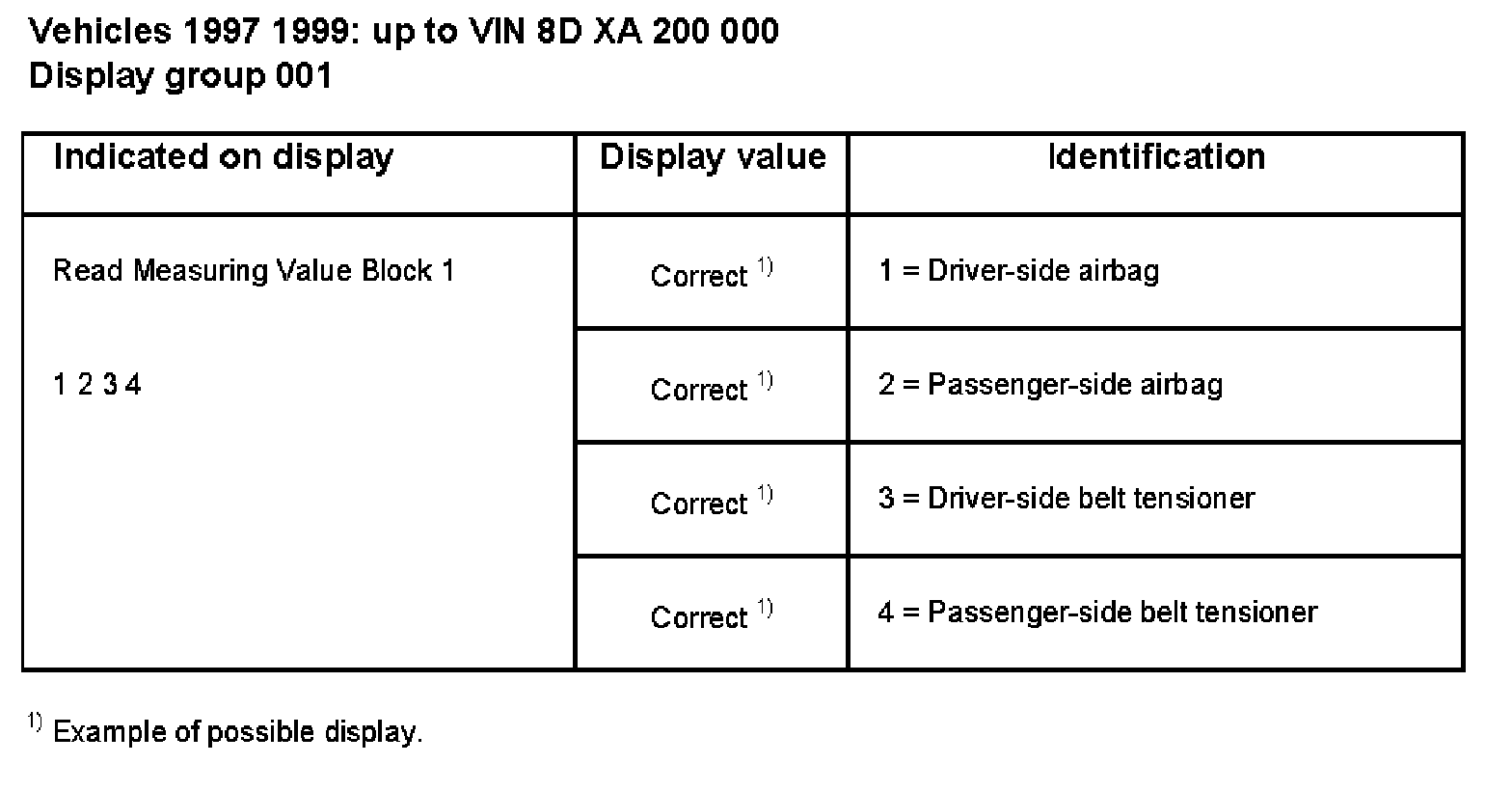

Display group 001

Display Group 001:

Display value table

correct Resistance OK
too small Resistance too small
too large Resistance too large
to Ground Short circuit to Ground
to B+ Short circuit to B+

Refer Possible causes and corrective actions.

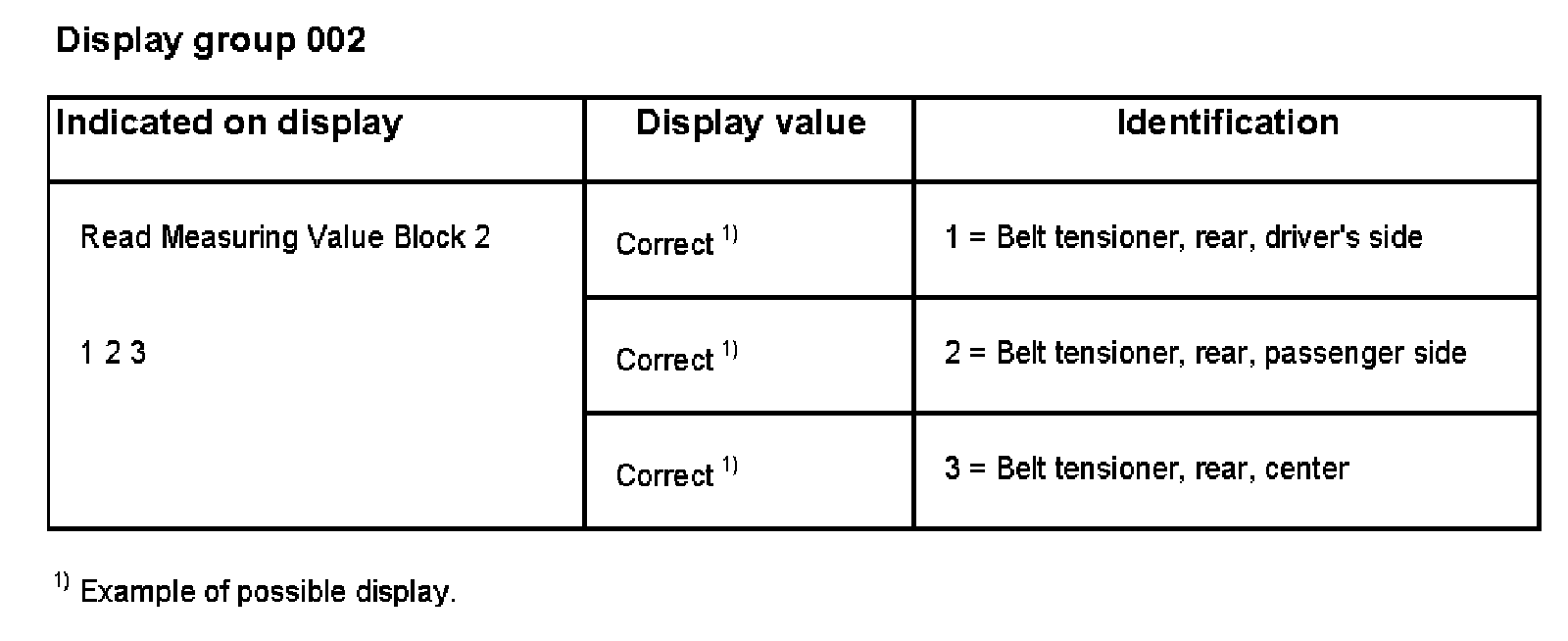

Display group 002

Display Group 002:

Display value table

correct Resistance OK
too small Resistance too small
too large 2) Resistance too large
to Ground Short circuit to Ground
to B+ Short circuit to B+

2) Display also possible when no belt tensioner is installed.

Refer Possible causes and corrective actions.

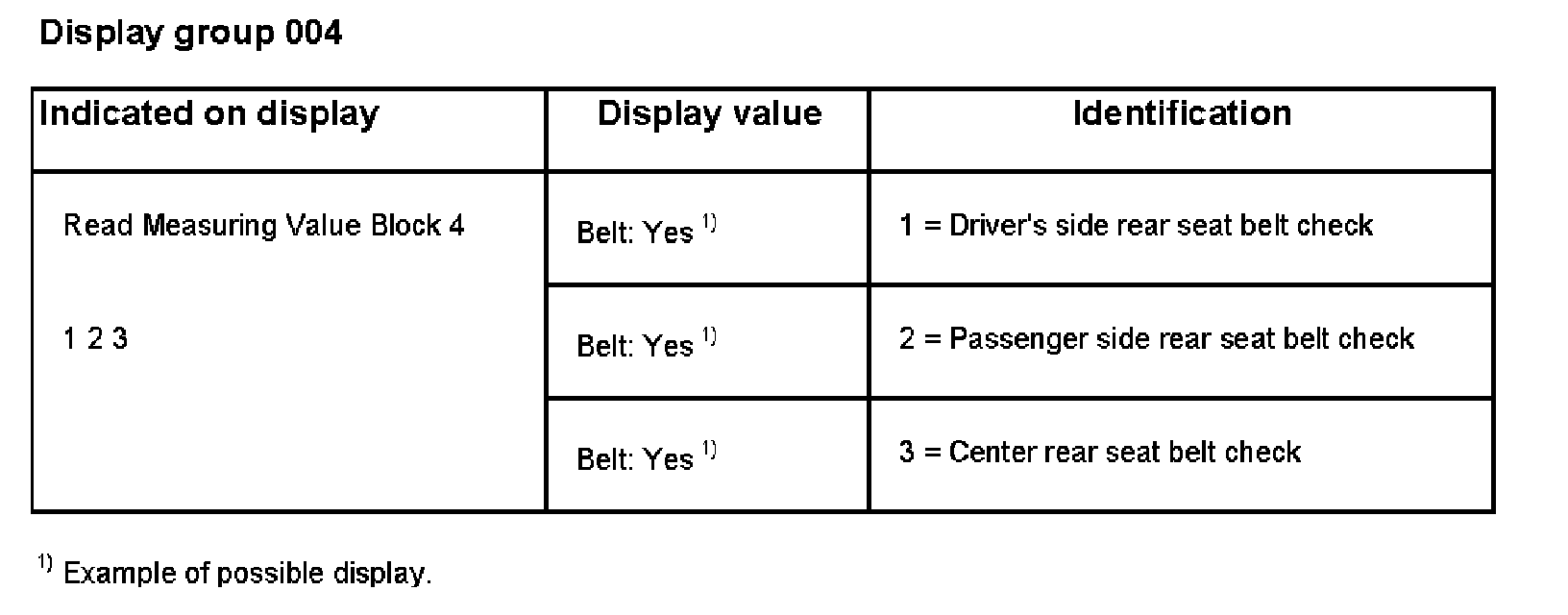

Display group 004

Display Group 004:

Display value table

Belt: yes
Belt: no
correct Resistance OK
too small Resistance too small
too large 2) Resistance too large
to Ground Short circuit to Ground
to B+ Short circuit to B+

Refer Possible causes and corrective actions.

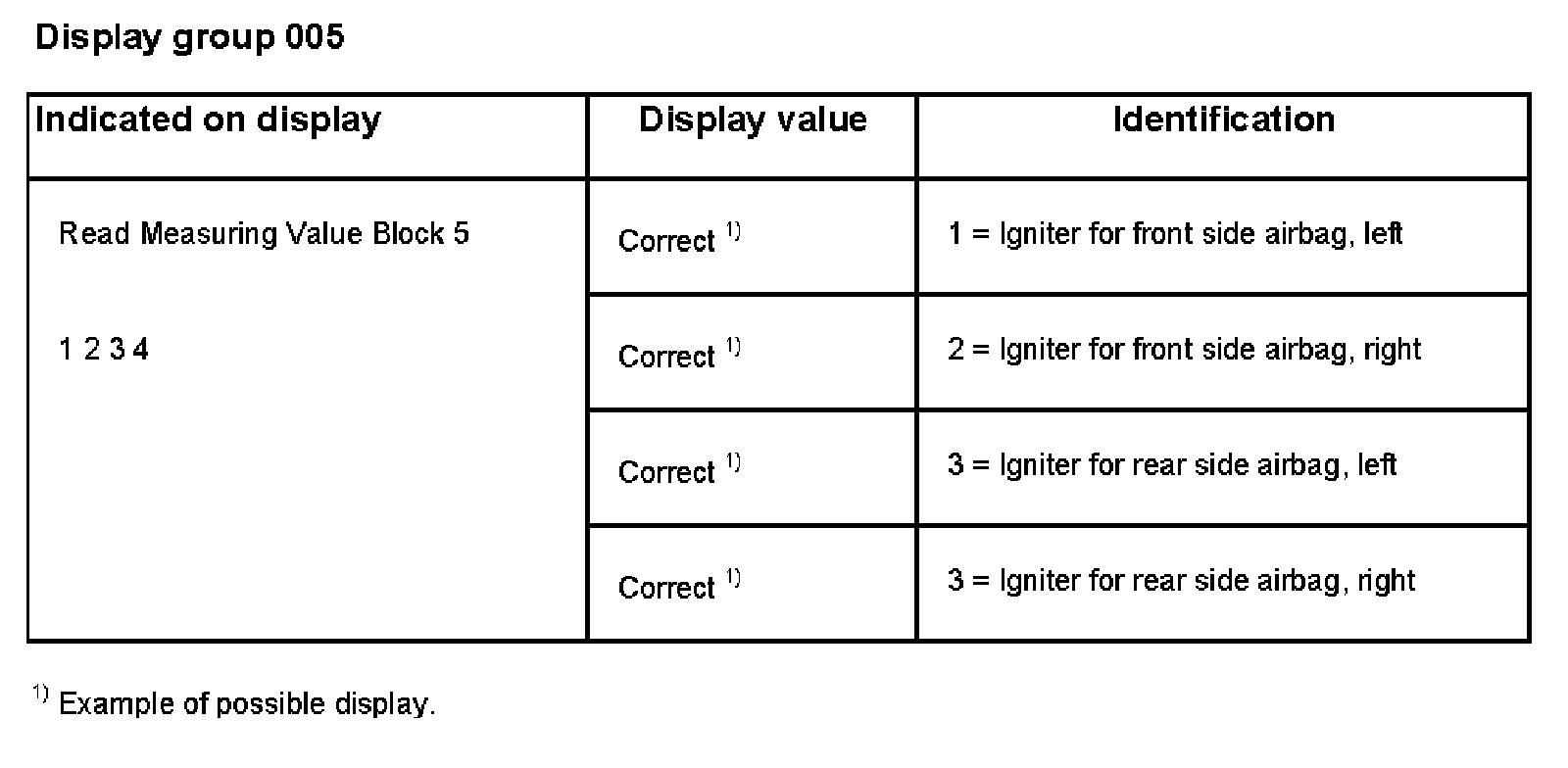

Display group 005

Display Group 005:

Display value table

correct Resistance OK
too small Resistance too small
too large 2) Resistance too large
to Ground Short circuit to Ground
to B+ Short circuit to B+

2) Display also possible with no rear side airbags.

Refer Possible causes and corrective actions.
