Transmission Selector Mechanism Disassembling & Assembling



Transmission Selector Mechanism, Disassembling and Assembling

Component Torque

Gear lock 5th and reverse gear Torx bolt 10 Nm (7 inch lbs.)

Right stop bolt 40 Nm (30 ft. lbs.)

Left stop bolt 40 Nm (3 ft. lbs.)

Shift detent Torx bolt 25 Nm (18 ft. lbs.)

Cover For shift rod Torx bolt 20 Nm (15 ft. lbs.)

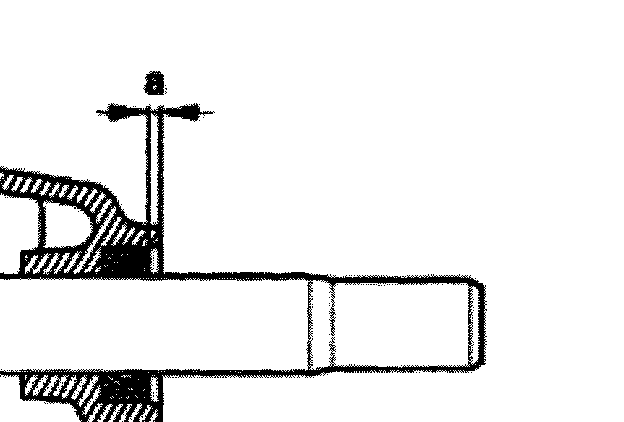

Installation position of sealing washer






- Dimension -a-: 1 mm (0.04 inch)

Installation position of 5th and reverse gear shift fork and coupling plate for shift rod






- Dimension -a-: 55 mm (2.165 inch)

- Dimension -b-: 60 mm (2.362 inch)
