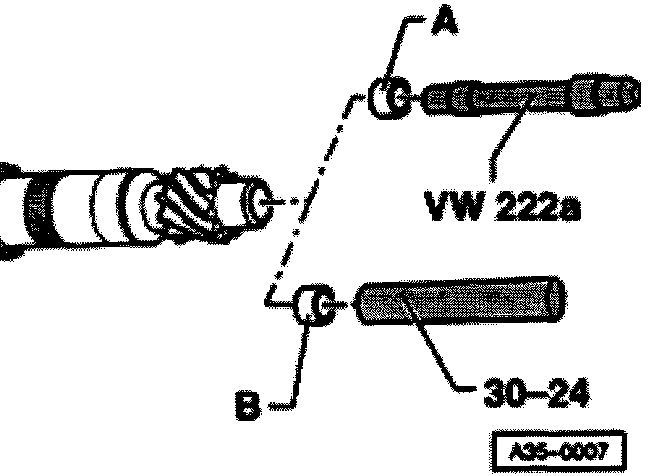

Fig. 7 Driving In Oiling Sleeve Into Input Shaft

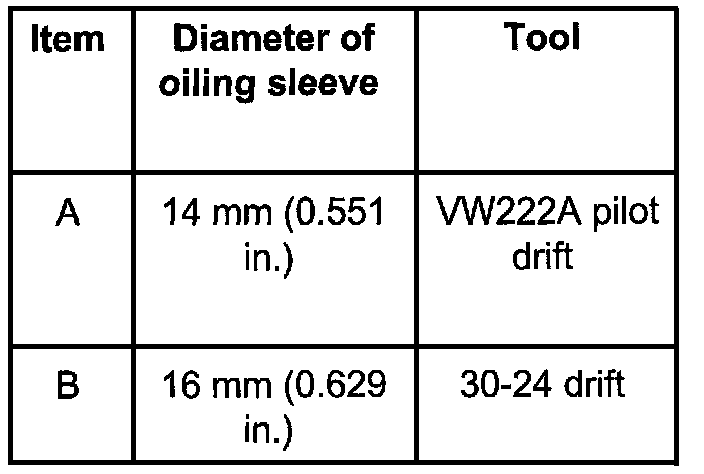

Special tools and equipment

- VW222A pilot drift

- 30-24 drift

Driving in oiling sleeve into input shaft










- Installed position: Flared edge of oiling sleeve faces tool

- Installation depth: 3.5 mm (0.138 inch) below upper edge
