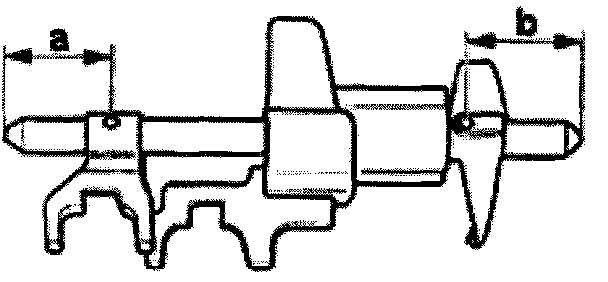

Fig. 1 Install Position 5TH/Reverse Gear Fork/Shift Rod Coupler

Transmission Selector Mechanism, Disassembling and Assembling

Installation position of 5th and reverse gear shift fork and coupling plate for shift rod

- Dimension -a-: 55 mm (2.165 inch)

- Dimension -b-: 60 mm (2.362 inch)
