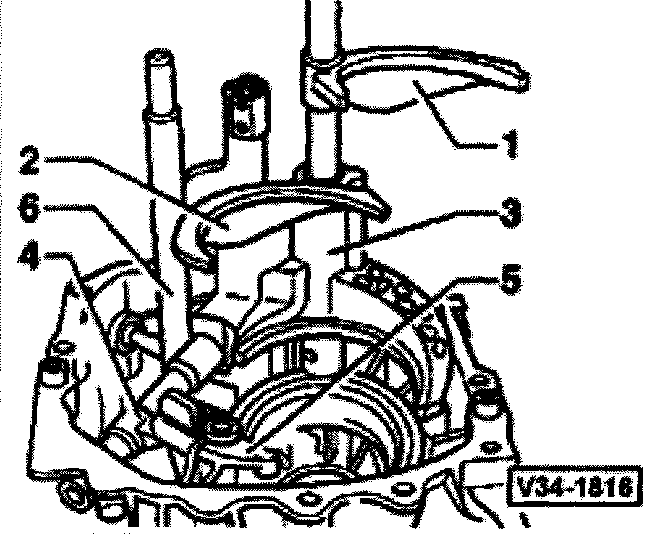

Fig. 6 Installation Position of Selector Mechanism In Trans.
Transmission Selector Mechanism, Disassembling and AssemblingInstallation Position Of Complete Selector Mechanism In Transmission 1.
Shift Fork For 5th And Reverse Gear
2.
Shift Fork For 3rd And 4th Gear
3.
Shift Fork For 1st And 2nd Gear
4.
Relay Shaft
5.
Shift Detent
6.
Shift Rod
