Rear

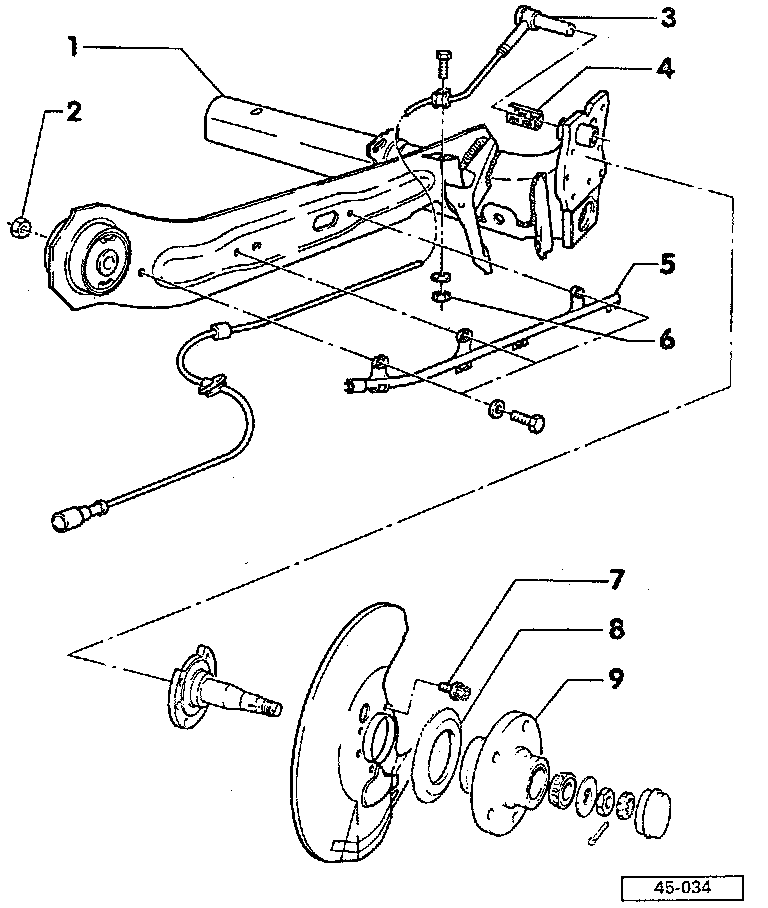

Exploded View Of Rear Hub And Spindle:

LEGEND
1. Rear axle beam
2. Bolt
3. ABS wheel speed sensor
4. Clamping sleeve
5. Bracket for ABS wheel speed sensor cable
6. Nut
7. Bolt and washer assembly
8. ABS wheel speed sensor rotor
9. Wheel hub
