System Specifications

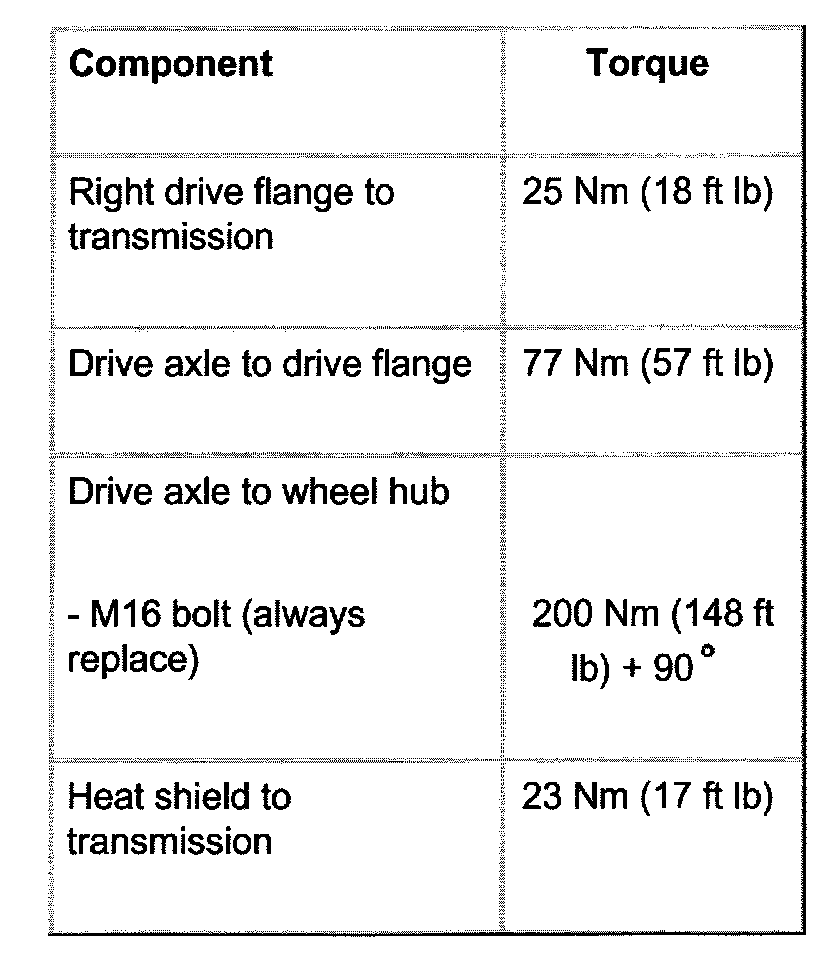

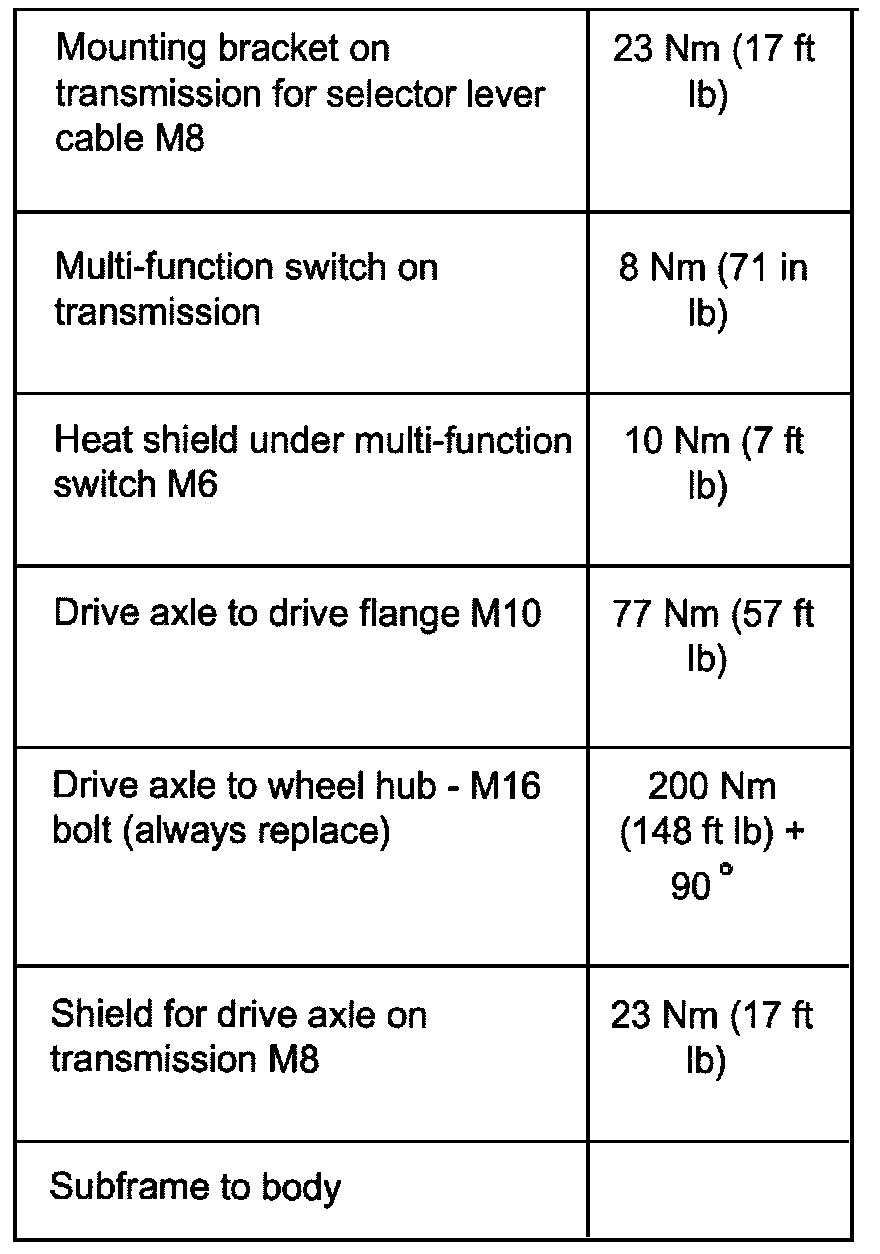

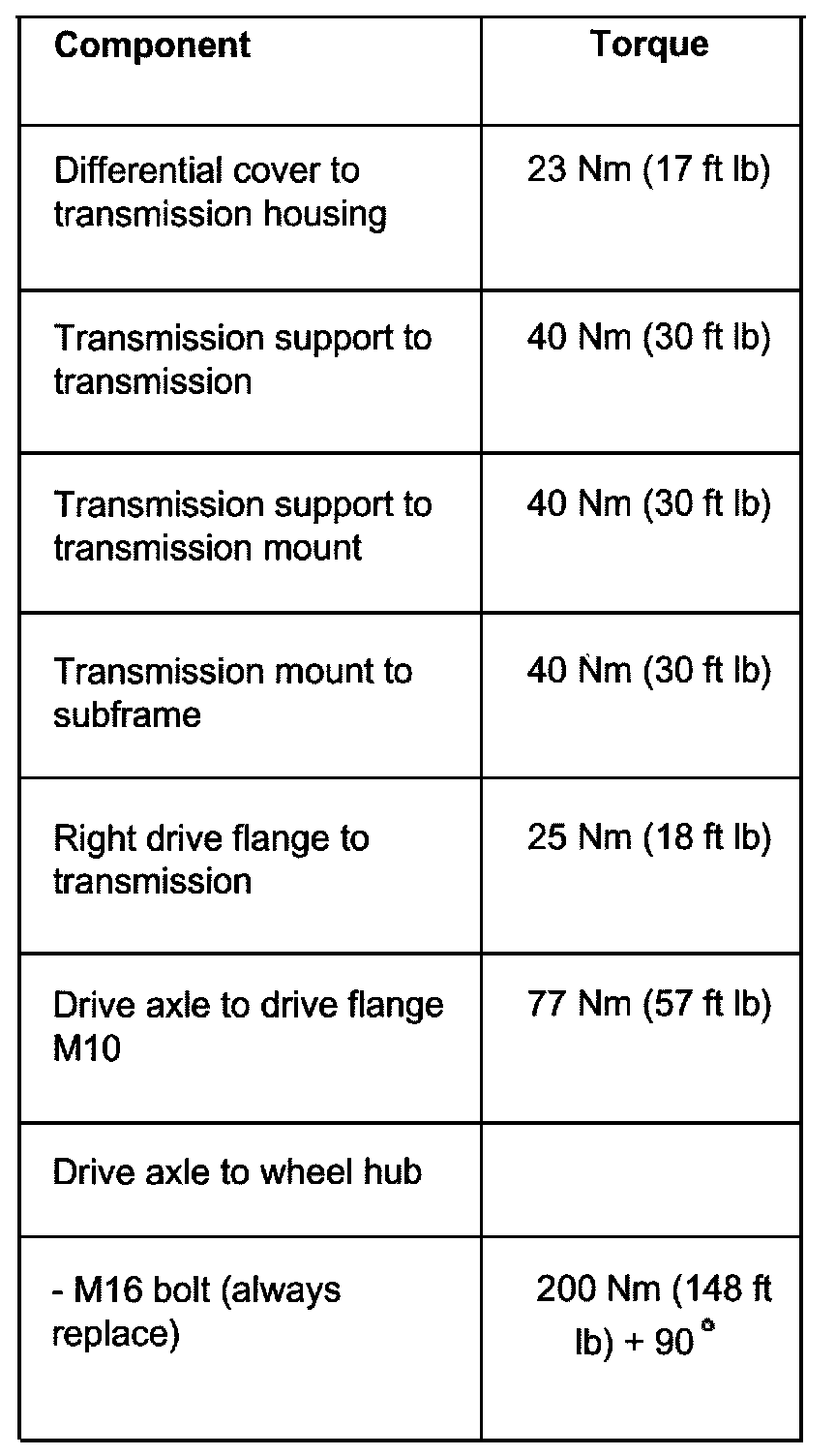

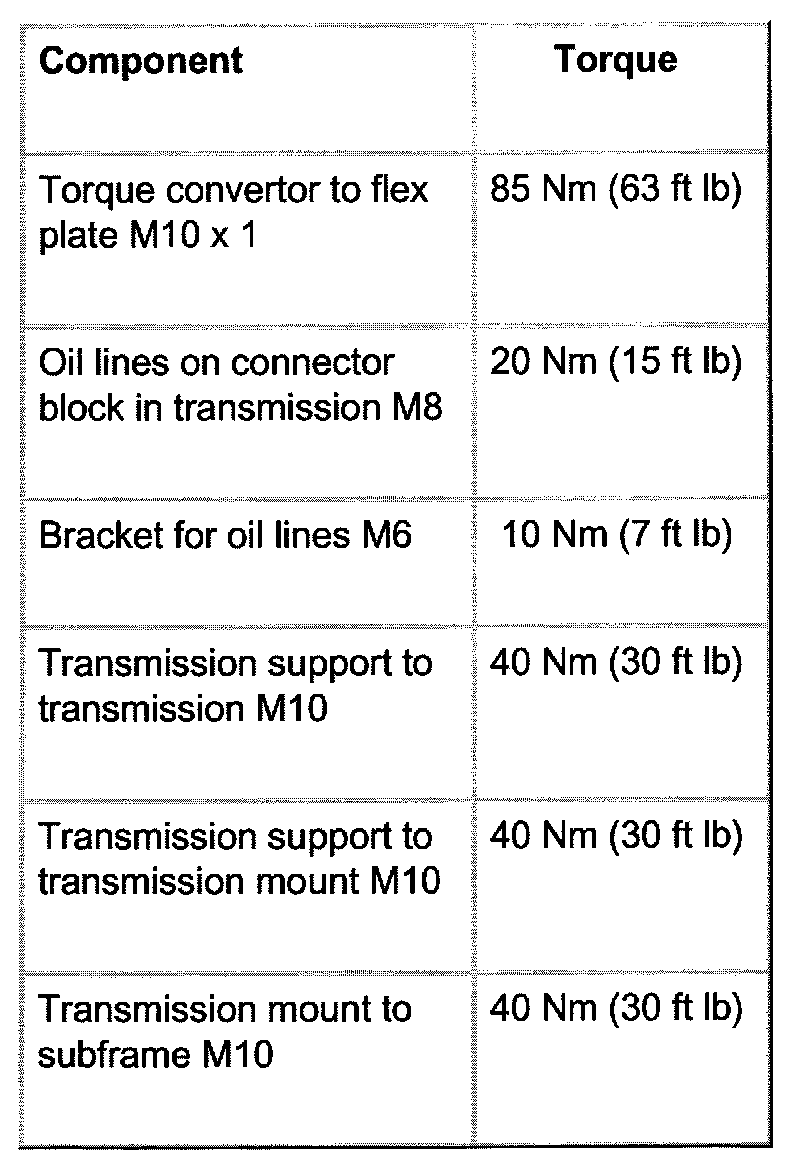

Tightening torques

Engine/transmission mounting

Note:

The dowel sleeves for alignment are at locations A and B.

Transmission supports, (right and left), removing and installing

Multifunction Switch Transmission Range (TR) Switch -F125-, Replacing

Selector lever shaft sealing ring, replacing

Selector lever cable, removing and installing

Oil pan, removing and installing

ATF sump, removing and installing

Valve body, removing and installing

Sensor for transmission RPM -G182-, replacing

Sender for transmission output RPM -G195-, replacing

Speedometer Vehicle Speed Sensor (VSS) -G22- impulse wheel, replacing

Right drive flange sealing ring, replacing

Differential cover O-ring, replacing

Front final drive gasket, replacing

Left drive flange, removing and installing

Left drive flange sealing ring, replacing

Left drive flange ball bearing, replacing
