5 Speed Automatic 01L AWD




Removing And Installing Transmission Control Module (TCM) -J217-

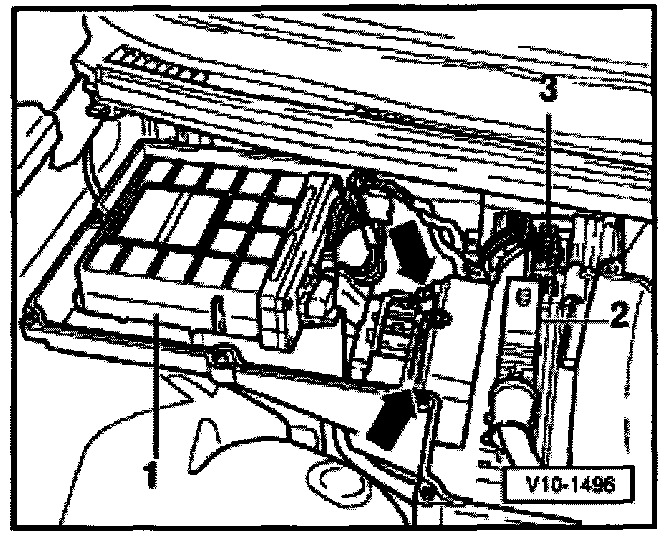

TCM location: in E-box in right side of plenum

Removing
- Switch ignition off.







- Open E-box in right side of plenum by unscrewing 7 bolts (arrows).
- Unclip bolt cover to unscrew bolt in upper right-hand section of illustration.







- Release multi-pin connector lock -2-, then disconnect multi-pin connector from TCM.
- Unscrew bolts (arrows) and remove TCM (together with bracket) from E-box.
- Check container for water penetration and reseal if necessary.

Installing

- Install in reverse order of removal.
- Check DTC memory of TCM.

Disconnecting multi-pin connector from TCM -J217-






- Switch ignition off and wait approx. 30 sec.
- Push lock in direction of arrow to unlatch connector.
- Disconnect multi-pin connector from top.
- Install in reverse order of removal.
