Air Bag Control Module: Locations

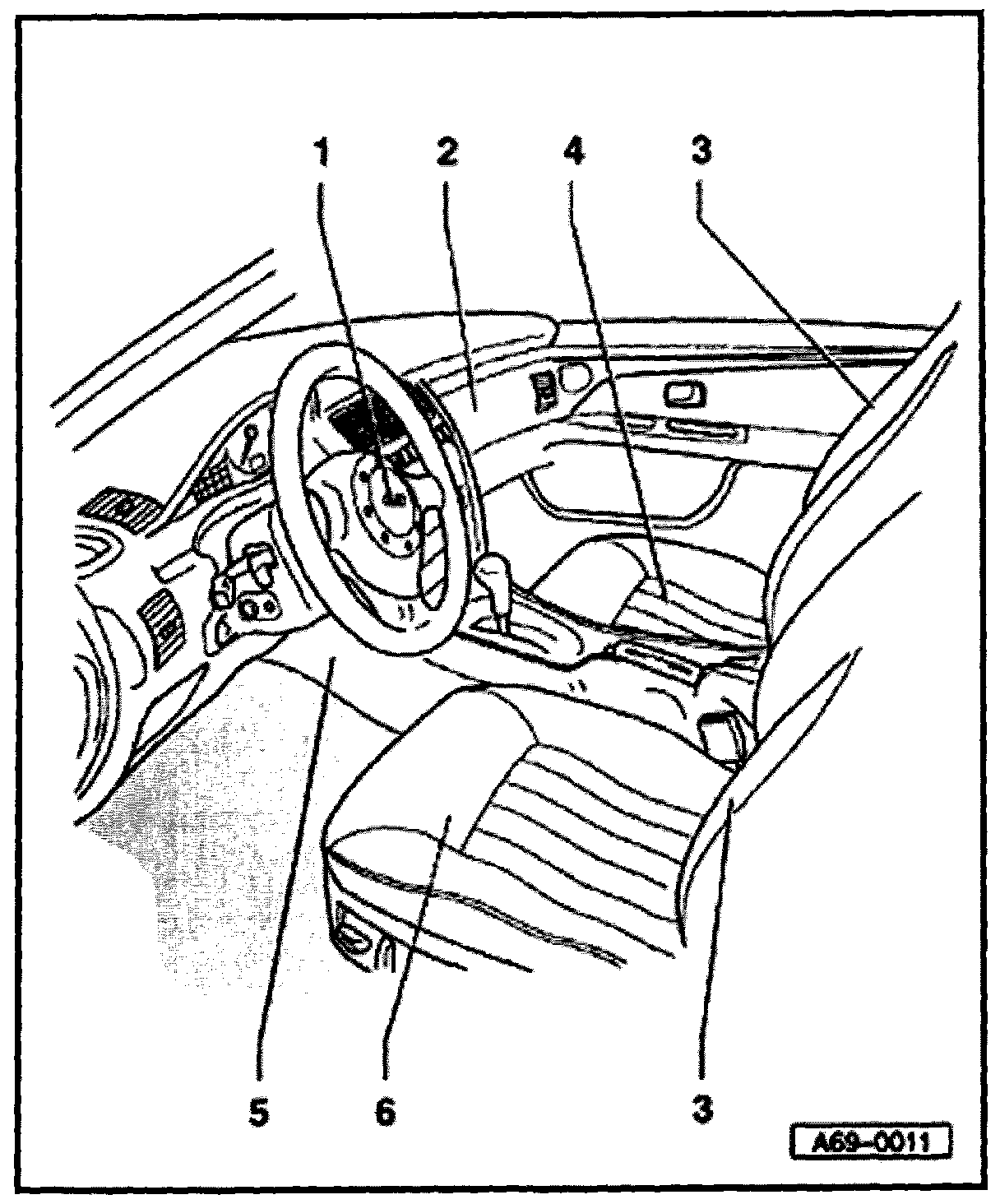

Component Locations (Front), Overview

1 - Driver's airbag unit
2 - Passenger's airbag unit
3 - Side airbag- drive/passenger side
4 - Seat occupied sensor, front
5 - Airbag Control module -J234-
6 - Sensor for lateral acceleration
