Fuel Level Sensor
Component Location View: F54, F66, F120, G, G2, G6, G8:

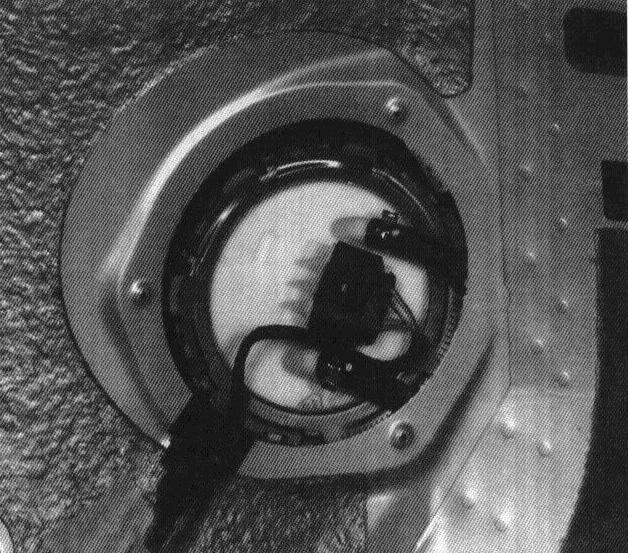

G - Fuel Level Sensor (view 1 Of 2):
G Fuel level sensor (view 1 of 2) -
part of main fuel pump module with fuel pump -G6-
-
access under rear seat bench

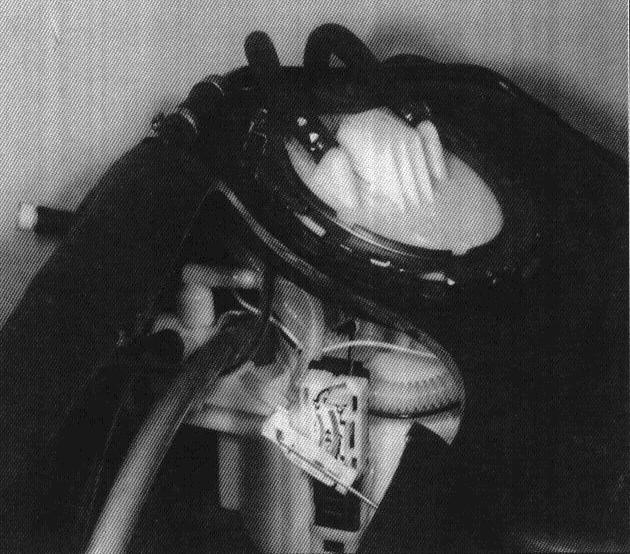

G - Fuel Level Sensor (view 2 Of 2):
G Fuel level sensor (view 2 of 2) -
cut-away view of fuel pump module with fuel level sensor inside fuel tank (quattro)
